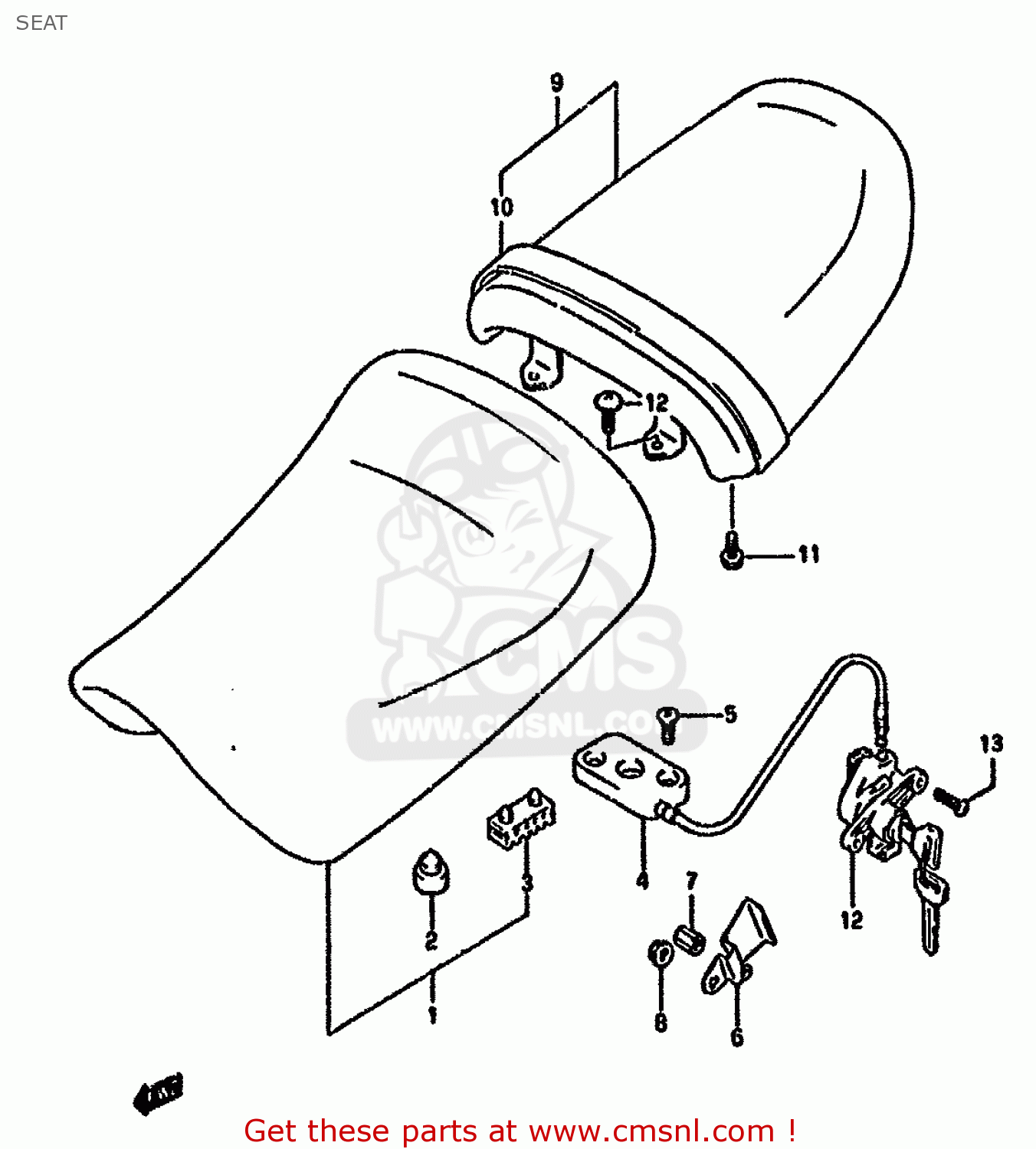

SEAT

ref

part #

description

quantity

1

4510010D006BY
ref: 1

SEAT ASSEMBLY

€ 230.50

2

0932110011
ref: 2

CUSHION

€ 3.00

3

4514931300
ref: 3

CUSHION,SEAT(40X20X15)

€ 2.00

4

4522010D00
ref: 4

BRACKET,SEAT SUPPORT

€ 24.50

5-1

0212206205
ref: 5-1
MODEL M/N

SCREW

€ 2.00

5-2

0212206206
ref: 5-2
MODEL P

SCREW

€ 2.00

6

4528810D00
ref: 6

PLATE,SEAT LOCK CABLE

€ 9.00

7

0915906030
ref: 7

NUT

€ 4.50

8

0831616088
ref: 8

NUT

€ 2.50

9-1

4530010D006BY
ref: 9-1

SEAT ASSY,PILLION

€ 215.50

9-2

4530010D206BY
ref: 9-2
E22

SEAT ASSY,PILLION

€ 0.00

9-3

4530010D306BY
ref: 9-3
E16

SEAT ASSY,PILLION

€ 215.50

10-1

4518010D006BY
ref: 10-1

BAND,SEAT

€ 13.50

10-2

4518010D106BY
ref: 10-2
E16

BAND ASSY,SEAT GRIP

€ 13.50

11

0913906027
ref: 11

SCREW(6X12)

€ 3.00

12-1

9570010832
ref: 12-1
MODEL M

LOCK SET,SEAT & HELMET

€ 99.50

12-2

9570010833
ref: 12-2
MODEL N/P

LOCK SET,SEAT & HELMET

€ 99.50

13

0913906048
ref: 13

SCREW(6X20)

€ 2.00

all assemblies
