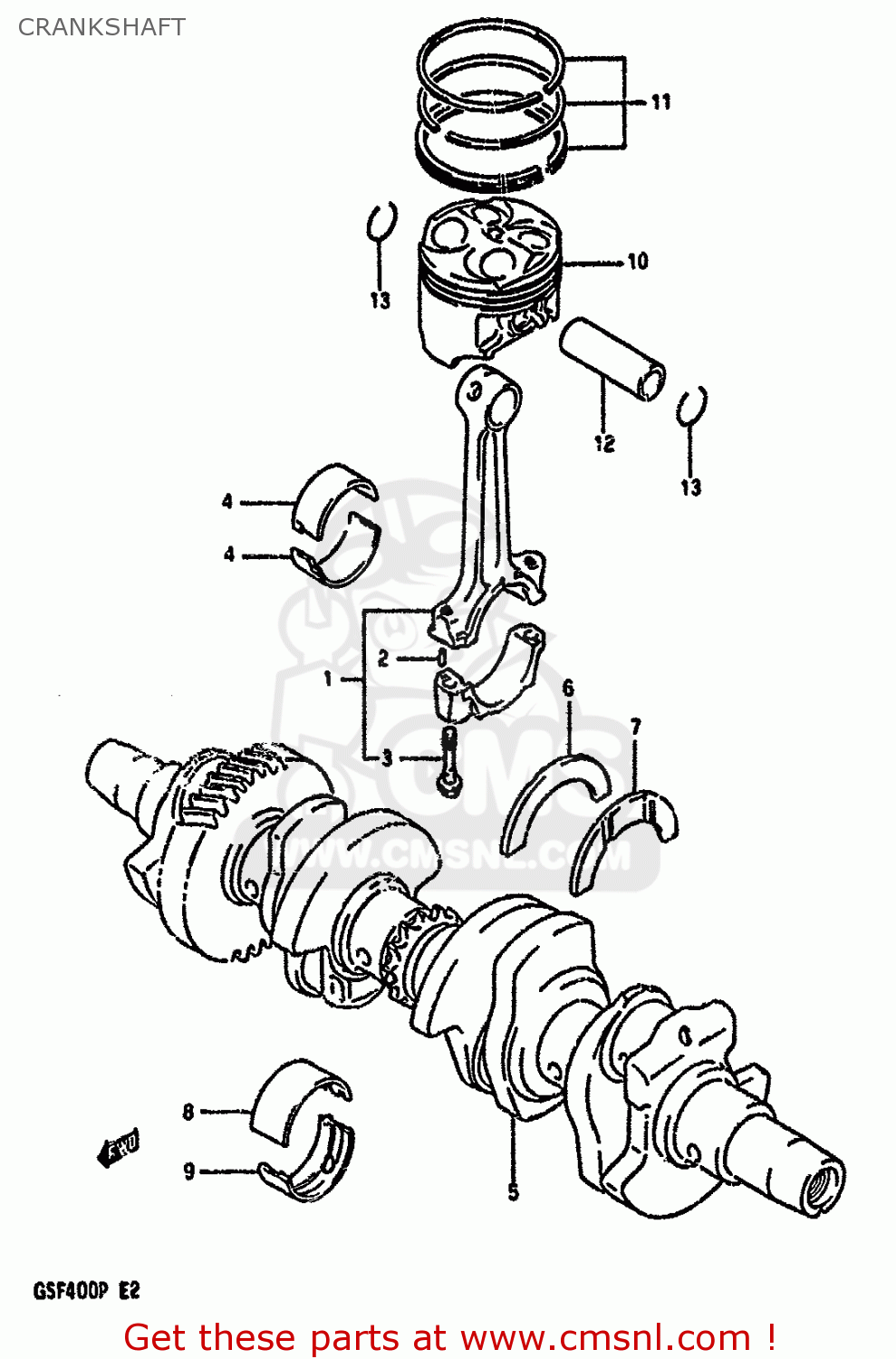

CRANKSHAFT

ref

part #

description

quantity

1

1216032C03
ref: 1

CONNECTING ROD ASSY

€ 94.00

2

0621103052
ref: 2

PIN 3X5

€ 1.50

3

1216332C00
ref: 3

BOLT,CONNECTING ROD

€ 5.50

4-1

1216404A010A0
ref: 4-1

METAL CRANK PIN (GREEN)

€ 9.50

4-2

1216404A010B0
ref: 4-2

METAL CRANK PIN (BLACK)

€ 9.50

4-3

1216404A010C0
ref: 4-3

METAL CRANK PIN (BROWN)

€ 13.00

4-4

1216404A010D0
ref: 4-4

BEARING,CRANK PIN

€ 9.50

5

1200032810
ref: 5
-12220-32C00

CRANKSHAFT SET

€ 798.00

6

1222843414
ref: 6

PLATE,CRANK THRUST

€ 9.50

7-1

1222843411
ref: 7-1

PLATE,CRANK THRUST

€ 8.50

7-2

1222843412
ref: 7-2

PLATE,CRANK THRUST

€ 8.50

7-3

1222843413
ref: 7-3

PLATE,CRANK THRUST

€ 8.00

7-4

1222843414
ref: 7-4

PLATE,CRANK THRUST

€ 9.50

7-5

1222843415
ref: 7-5

BEARING,THRUST

€ 8.50

7-6

1222843416
ref: 7-6

PLATE,CRANK THRUST

€ 9.50

8-1

1222930B100A0
ref: 8-1
UPPER

BEARING,CRANKSHAFT UPR

€ 11.50

8-2

1222930B100B0
ref: 8-2

BEARING,CRANKSHAFT UPR

€ 11.50

8-3

1222930B100C0
ref: 8-3

BEARING,CRANKSHAFT UPR

€ 11.50

8-4

1222930B100D0
ref: 8-4

BEARING,CRANKSHAFT UPR

€ 11.50

9-1

1222933C000A0
ref: 9-1
LOWER

BEARING,CRANKSHAFT(GREEN)

€ 8.50

9-2

1222933C000B0
ref: 9-2

BEARING,CRANKSHAFT(BLACK)

€ 8.50

9-3

1222933C000C0
ref: 9-3

BEARING,CRANKSHAFT(BROWN)

€ 9.00

9-4

1222933C000D0
ref: 9-4

BEARING,CRANKSHAFT(YELLOW)

€ 7.50

10-1

1211132C040F0
ref: 10-1

PISTON (56.00MM)

€ 60.50

10-2

1211132C04040
ref: 10-2
OPT

PISTON

€ 107.50

10-3

1211132C04100
ref: 10-3
OPT

PISTON

€ 64.00

11-1

1214032C10
ref: 11-1

RING SET,PISTON

€ 75.50

11-2

1214032C10040
ref: 11-2
OPT

RING SET,PISTON

€ 42.00

11-3

1214032C10100
ref: 11-3
OPT

RING SET,PISTON (OS:1.0)

€ 42.00

12

1215110D00
ref: 12

PIN,PISTON

€ 14.00

13

0938116001
ref: 13

RING,SNAP 16MM

€ 1.50

all assemblies
