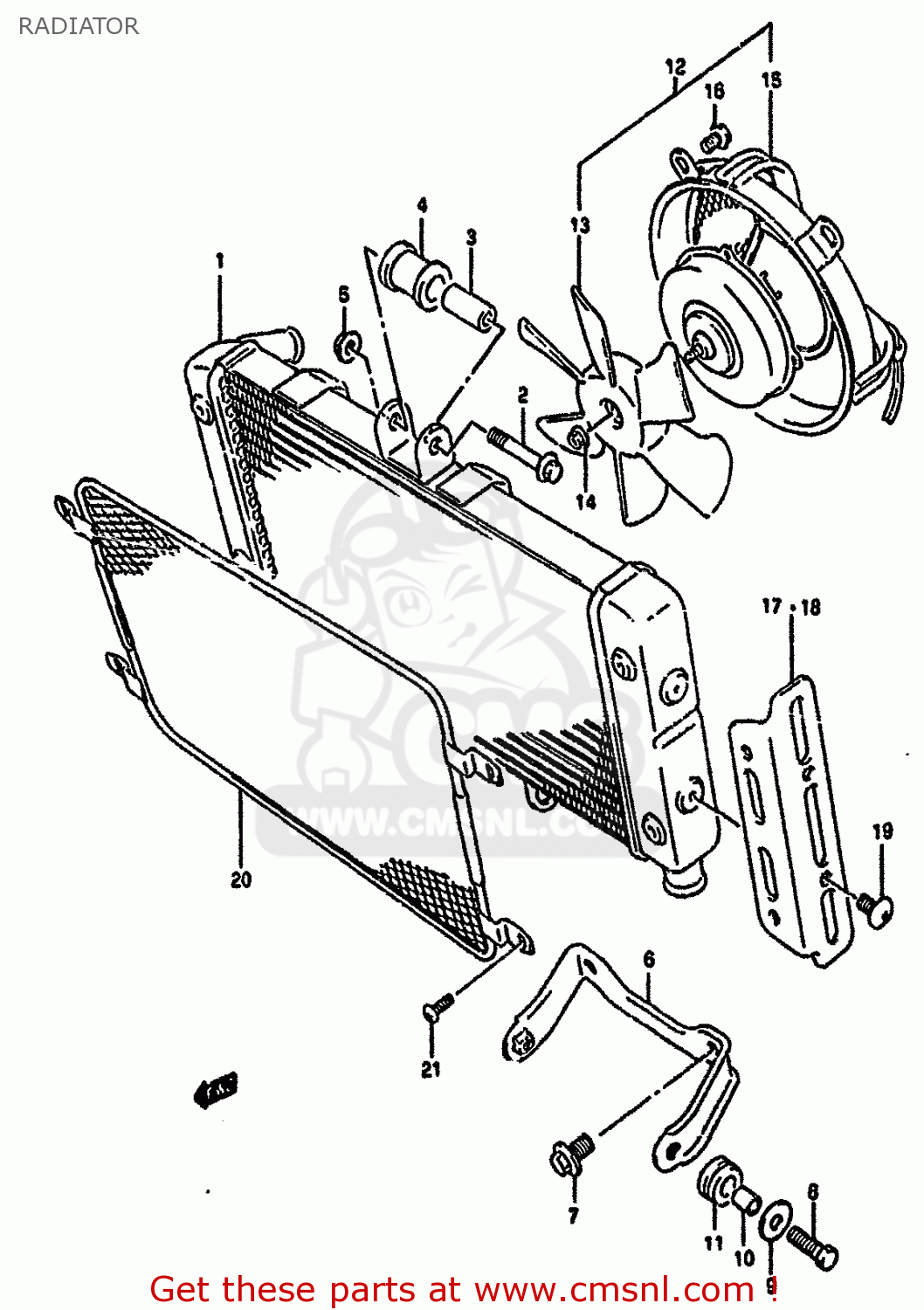

RADIATOR

ref

part #

description

quantity

1

1771010D00
ref: 1

RADIATOR ASSEMBLY,WATER

€ 926.50

2

0151706455
ref: 2

BOLT (6X45)

€ 2.50

3

0918006216
ref: 3

SPACER

€ 4.50

4

0932012051
ref: 4

CUSHION

€ 0.00

5

0831616064
ref: 5

NUT 6MM

€ 2.50

6

1774110D00
ref: 6

BRACKET COMP,ROTOR,LOWER

€ 12.00

7

0151708165
ref: 7

BOLT, LOWER

€ 3.00

8

0151706204
ref: 8

BOLT 6X20

€ 2.50

9

0916006063
ref: 9

WASHER (6.5X22X1.6)

€ 2.00

10

0918006213
ref: 10

SPACER (6.8X10X12)

€ 2.50

11

0932010042
ref: 11

CUSHION

€ 4.00

12

1778010D10
ref: 12

FAN ASSY,RADIATOR

€ 416.00

13

1782010D00
ref: 13

FAN ASSY

€ 49.50

14

0831626066
ref: 14

NUT

€ 2.00

15

1777010D10
ref: 15

SHROUD,FAN

€ 67.50

16

0151706108
ref: 16

BOLT

€ 2.50

17

1776110D01
ref: 17

COVER,RADIATOR,R

€ 45.00

18

1776210D01
ref: 18

COVER,RADIATOR

€ 50.50

19

0913906027
ref: 19

SCREW(6X12)

€ 3.00

20

1779010D02
ref: 20

NET,RADIATOR

€ 60.50

21

0912504024
ref: 21

SCREW(4X12)

€ 2.50
