Buy Suzuki GSF Parts Online


REAR SWINGING ARM

GSF400 1993 (P) (E02 E04 E16 E21 E22 E25 E30 E34 E53)

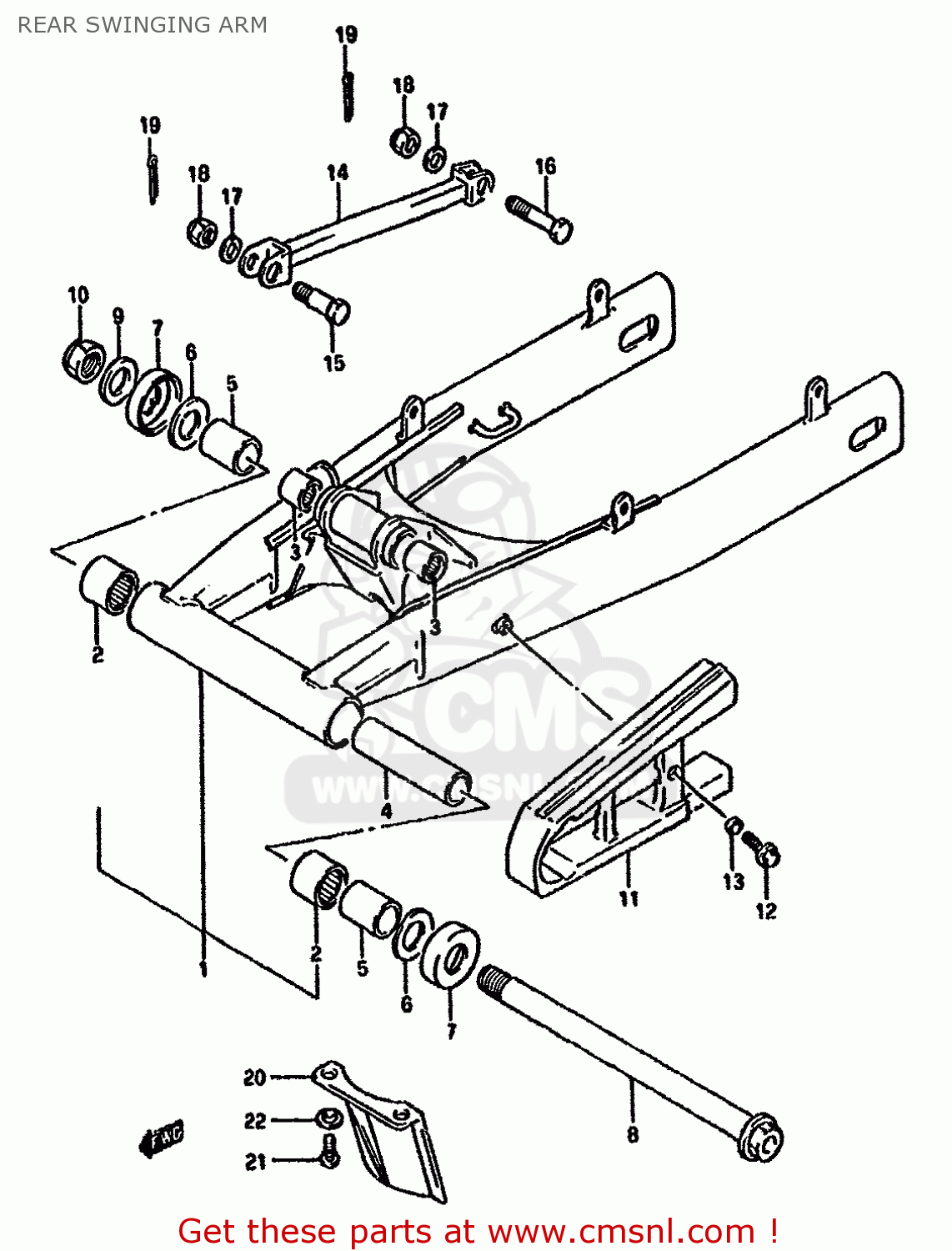

Rear swinging arm diagram GSF400 1993 (P) (E02 E04 E16 E21 E22 E25 E30 E34 E53)

REAR SWINGING ARM GSF400 1993 (P) (E02 E04 E16 E21 E22 E25 E30 E34 E53)
REAR SWINGING ARM GSF400 1993 (P) (E02 E04 E16 E21 E22 E25 E30 E34 E53)
REAR SWINGING ARM GSF400 1993 (P) (E02 E04 E16 E21 E22 E25 E30 E34 E53)
prices are in EUR
ref
part #
description
quantity
1-1
6100010D010FP
ref: 1-1
FOR 31X-61000-10D10-
SWING ARM ASSEMBLY,REAR
€ 502.00
1-2
6100010D010NH
ref: 1-2
FOR 21X-61000-10D10-
SWING ARM ASSEMBLY,REAR
6100010D010NH
€ 617.00
1-3
6100010D01019
ref: 1-3
MODEL M/N,FOR 02X-61
SWING ARM ASSEMBLY,REAR
€ 502.00
1-4
6100010D010WP
ref: 1-4
MODEL N,FOR 0ZX-6100
SWING ARM ASSEMBLY,REAR
€ 502.00
1-5
6100010D10019
ref: 1-5
MODEL P,FOR 02X
SWING ARM ASSEMBLY,REAR
6100010D10019
€ 502.00
1-6
6100010D100WP
ref: 1-6
MODEL P,FOR 0ZX
SWING ARM ASSEMBLY,REAR
6100010D100WP
€ 502.00
1-7
6100010D101UG
ref: 1-7
MODEL P,FOR 1HX
SWING ARM ASSEMBLY,REAR
€ 502.00
2
0926325024
ref: 2
BEARING(25X33X30)
0926325024
€ 31.50
3
0926317037
ref: 3
BEARING(17X24X25)
0926317037
€ 19.00
4
0918020108
ref: 4
SPACER(20.8X27.2X146)
0918020108
€ 21.50
5
6125117C00
ref: 5
SPACER,RR SWGARM PIVOT BERRING
6125117C00
€ 36.00
6
0821120381
ref: 6
WASHER
0821120381
€ 3.00
7
6126210D00
ref: 7
COVER,RR SWGARM PIVOT SEAL
6126210D00
€ 9.00
8
6121106C01
ref: 8
SHAFT,RR SWINGINGARM PIVOT
6121106C01
€ 43.00
9
0832211188
ref: 9
WASHER
0832211188
€ 2.50
10
0915918007
ref: 10
NUT
0915918007
€ 14.00
11
6127310D01
ref: 11
BUFFER,CHAIN TOUCH DEFENCE
6127310D01
€ 28.50
12
0911606111
ref: 12
BOLT 6X20,WITH PLAIN WASHER
€ 2.00
13
0918006142
ref: 13
SPACER
0918006142
€ 1.50
14-1
6431010D000FP
ref: 14-1
FOR 31X
TORQUE LINK,REAR
€ 26.50
14-2
6431010D000NH
ref: 14-2
FOR 21X
TORQUE LINK,REAR
€ 26.50
14-3
6431010D00019
ref: 14-3
FOR 02X,1HX MODEL P,
TORQUELINK,RR
6431010D00019
€ 26.50
14-4
6431010D000WP
ref: 14-4
MODEL N,FOR 0ZX
TORQUE LINK,REAR
€ 26.50
15-1
0911110051
ref: 15-1
BOLT(10X39)
0911110051
€ 8.50
15-2
0911110011
ref: 15-2
E30
BOLT
0911110011
€ 8.00
16-1
0910010278
ref: 16-1
BOLT
€ 4.50
16-2
0910110036
ref: 16-2
E30
BOLT(10X35)
0910110036
€ 4.50
17-1
0832211107
ref: 17-1
WASHER
0832211107
€ 2.50
17-2
0916010057
ref: 17-2
E30
WASHER
0916010057
€ 2.00
17-3
0916010069
ref: 17-3
E30
WASHER (10X18X3.2)
€ 2.00
18-1
0915910027
ref: 18-1
NUT
0915910027
€ 3.00
18-2
0831441108
ref: 18-2
E30
NUT
0831441108
€ 2.50
19
0411120208
ref: 19
E30
PIN 20X20
0411120208
€ 1.50
20
6341142A00
ref: 20
MODEL P FOR 61000-10
GUARD,RR UNIT MUD
6341142A00
€ 3.50
21
0214206167
ref: 21
MODEL P
SCREW
0214206167
€ 2.00
22
0916906025
ref: 22
MODEL P
WASHER,LOCK
€ 3.00
