CYLINDER HEAD COVER

GSF400 1993 (P) (E02 E04 E16 E21 E22 E25 E30 E34 E53)

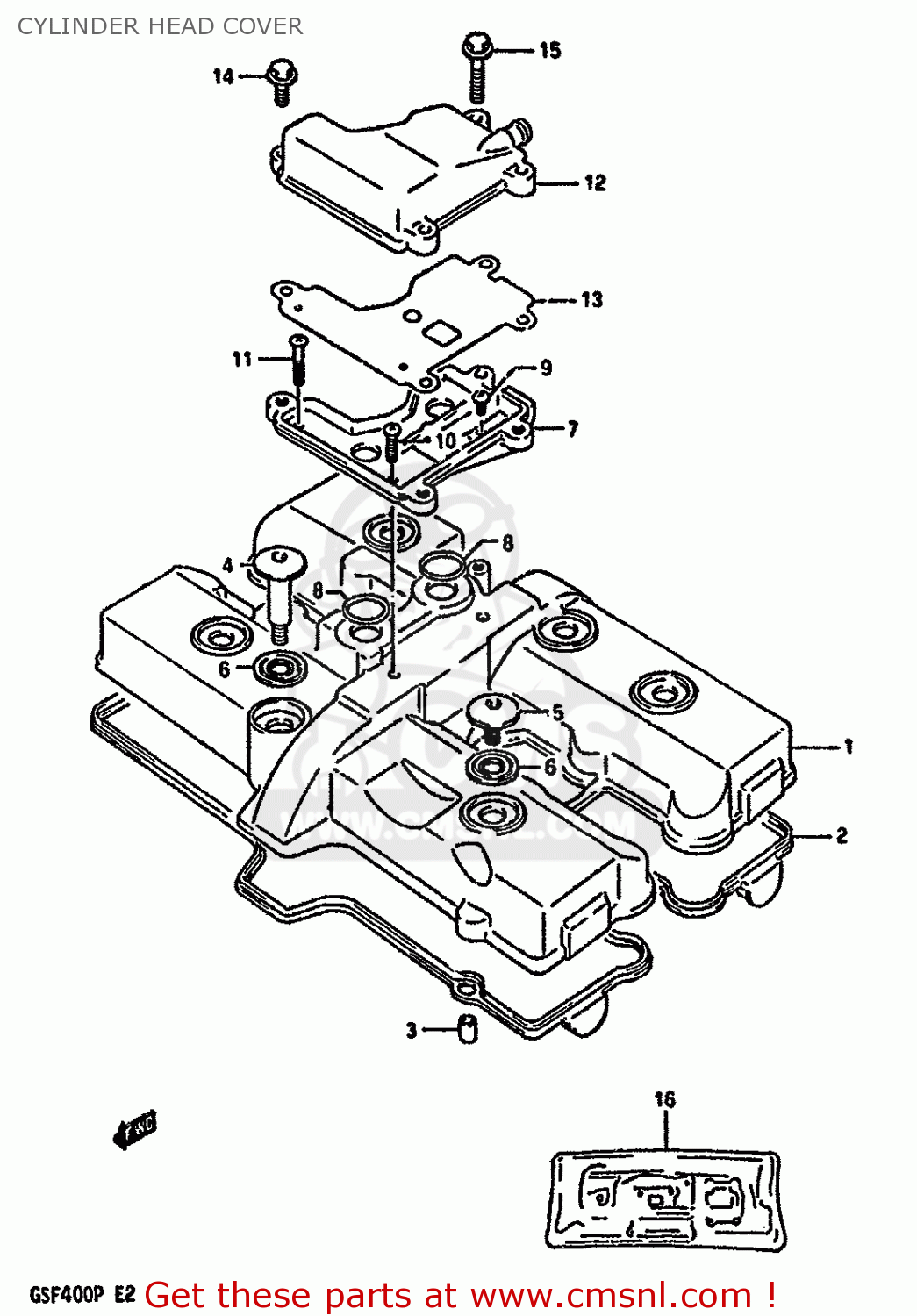

Cylinder head cover diagram GSF400 1993 (P) (E02 E04 E16 E21 E22 E25 E30 E34 E53)

prices are in EUR

ref

part #

description

quantity

1117110D00
ref: 1

COVER,CYLINDER HEAD

€ 125.00

1117330B02
ref: 2

GASKET,CYLINDER HEAD COVER (NAS)

€ 36.00

0920608001
ref: 3

PIN(6.2X8X11)

€ 2.00

0910607016
ref: 4

BOLT(7X37)

€ 5.50

0910607015
ref: 5

BOLT(7X18.5)

€ 6.00

0916111008
ref: 6

WASHER(10.6X25.5X2.3)

€ 4.50

1117733C00
ref: 7

COVER,BREATHER,LOWER

€ 21.00

0928019005
ref: 8

O RING(D:2.4,ID:19)

€ 2.00

0211205106
ref: 9

SCREW 5X10

€ 2.00

0211205206
ref: 10

SCREW

€ 2.50

0211205306
ref: 11

SCREW

€ 1.50

1118033C00
ref: 12

COVER,BREATHER,UPPER

€ 28.50

1117933C00
ref: 13

GASKET,BREATHER COVER (NAS)

€ 12.00

0151706207
ref: 14

BOLT 6X20

€ 2.50

0151706358
ref: 15

BOLT 6X35

€ 2.50

16-1

1140032866
ref: 16-1
MODEL M/N

GASKET SET

€ 183.50

16-2

1140032867
ref: 16-2
MODEL P

GASKET SET (NAS)

€ 183.50
