GENERATOR

GSF400 1993 (P) (E02 E04 E16 E21 E22 E25 E30 E34 E53)

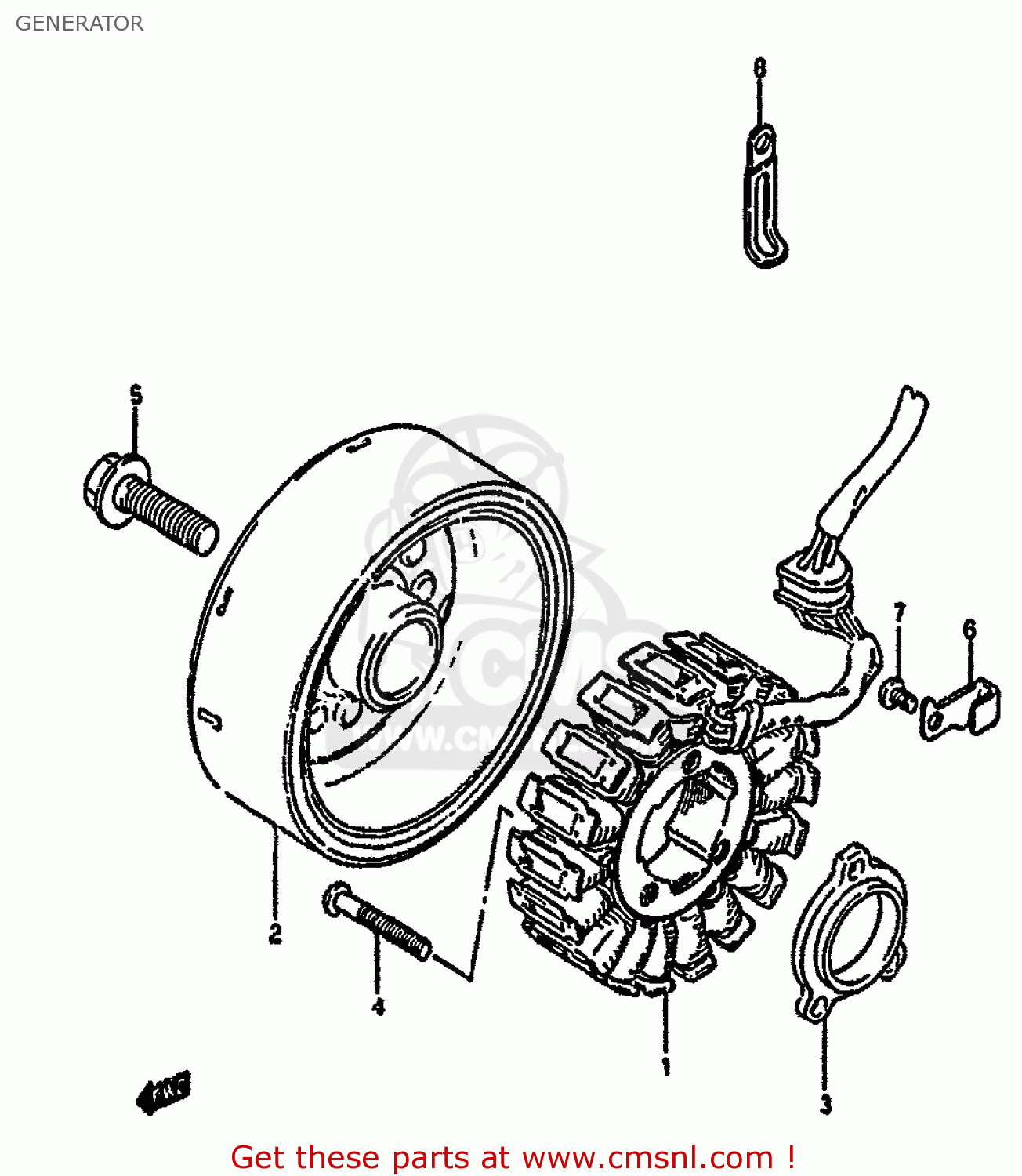

Generator diagram GSF400 1993 (P) (E02 E04 E16 E21 E22 E25 E30 E34 E53)

prices are in EUR

ref

part #

description

quantity

3140133C00
ref: 1
-31401-30B00

STARTER ASSY

€ 287.50

3140233C00
ref: 2
-31402-30B01

ROTOR

€ 269.00

3141230B00
ref: 3

SPACER,GENERATOR STATOR

€ 13.00

0211206357
ref: 4

SCREW

€ 2.50

0910312004
ref: 5

BOLT(12X40)

€ 3.00

3149730B00
ref: 6

CLAMP,GENERATOR LEAD WIRE

€ 3.50

0211205087
ref: 7

SCREW

€ 2.00

0940406403
ref: 8

CLAMP

€ 2.50
