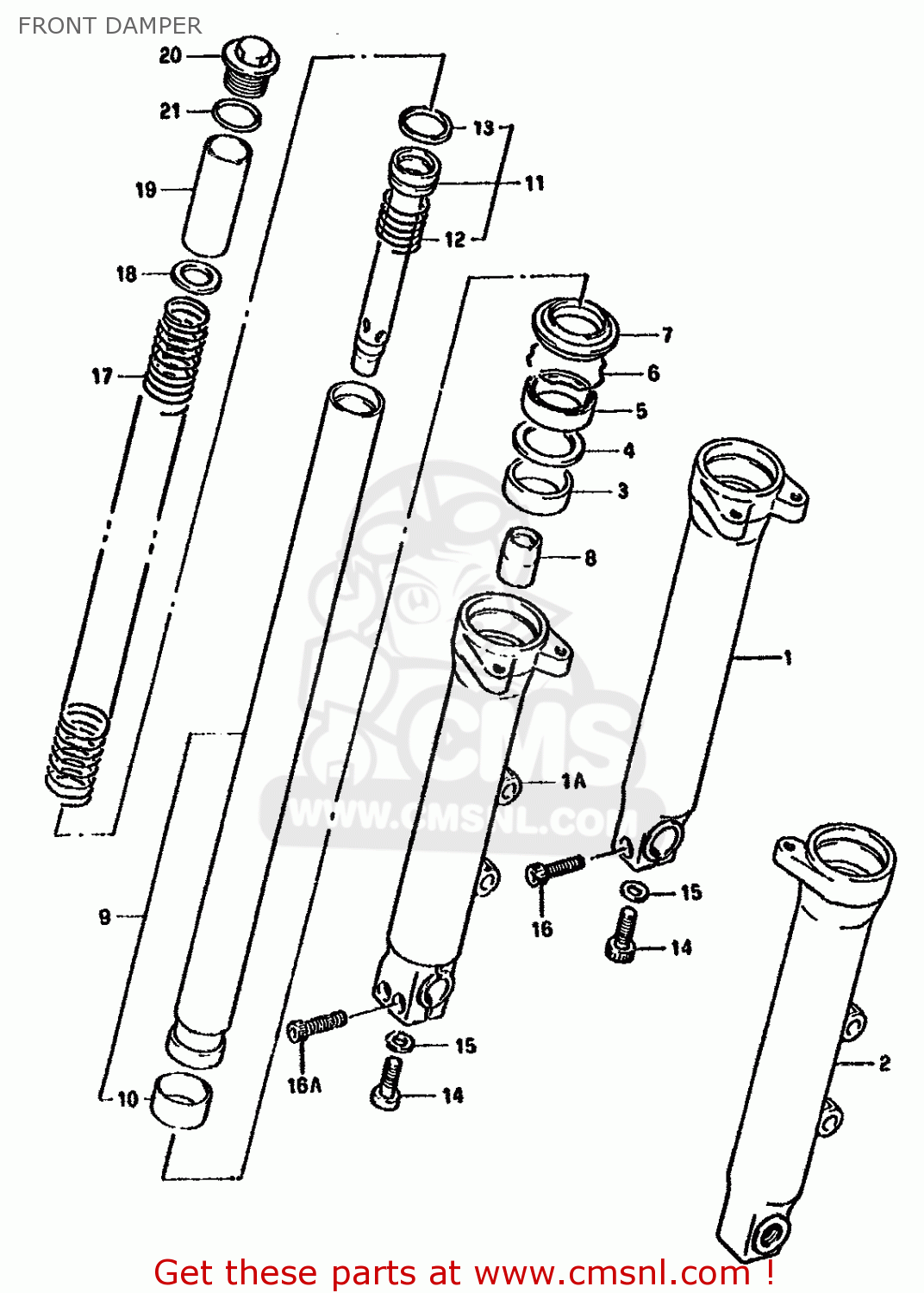

FRONT DAMPER

ref

part #

description

quantity

0

5110310D40
ref: 0

DAMPER ASSY,RH

€ 481.00

0

5110310D60
ref: 0
E22

DAMPER ASSY,RH

€ 0.00

0

5110410D40
ref: 0

DAMPER ASSY,LH

€ 481.00

0

5110410D60
ref: 0
E22

DAMPER ASSY,LH

€ 0.00

1

5113011D00
ref: 1

TUBE,OUTER,RIGHT

€ 377.00

1A

5113010D30
ref: 1A
E22

TUBE,OUTER RH

€ 309.00

2-1

5114011D00
ref: 2-1
MODEL M

TUBE,OUTER LH

€ 373.50

2-2

5114011D01
ref: 2-2
MODEL N/P

TUBE,OUTER,RIGHT

€ 373.50

2-3

5114010D30
ref: 2-3
E22

TUBE,OUTER LH

€ 309.00

3

5116728C00
ref: 3

METAL,SLIDE

€ 20.50

4

5115805A00
ref: 4

WASHER,FORK OIL SEAL

€ 5.00

5

5115306C00
ref: 5

OIL SEAL,FRONT FORK

€ 22.00

6

5115649440
ref: 6

RING,OIL SEAL STOPPER

€ 5.50

7

5117306C00
ref: 7

DUST SEAL,FRONT FORK

€ 20.00

8

5119506C00
ref: 8

PIECE,OIL LOCK

€ 13.00

9

5111010D10
ref: 9

TUBE,INNER

€ 294.50

10

5112128C00
ref: 10

PISTON

€ 23.00

11

5114606C00
ref: 11

CYLINDER

€ 65.00

12

5117706C00
ref: 12

SPRING,REBOUND

€ 10.50

13

5119606C00
ref: 13

RING,PISTON

€ 6.50

14

5114716510
ref: 14

BOLT,FORK CYLINDER(10X25)

€ 3.50

15

5114841310
ref: 15

GASKET (NAS)

€ 2.50

16

0711008407
ref: 16

BOLT

€ 3.50

16A

0711008357
ref: 16A
E22

BOLT, FRONT RH

€ 4.50

17

5117110D40
ref: 17

SPRING,MAIN

€ 50.50

18

5117206C00
ref: 18

GUIDE,SPRING

€ 3.00

19

5117610D40
ref: 19

SPACER,SPRING

€ 16.00

20

5135110D00
ref: 20

CAP,FORK

€ 50.00

21

5111706C10
ref: 21

O-RING

€ 2.00

all assemblies
