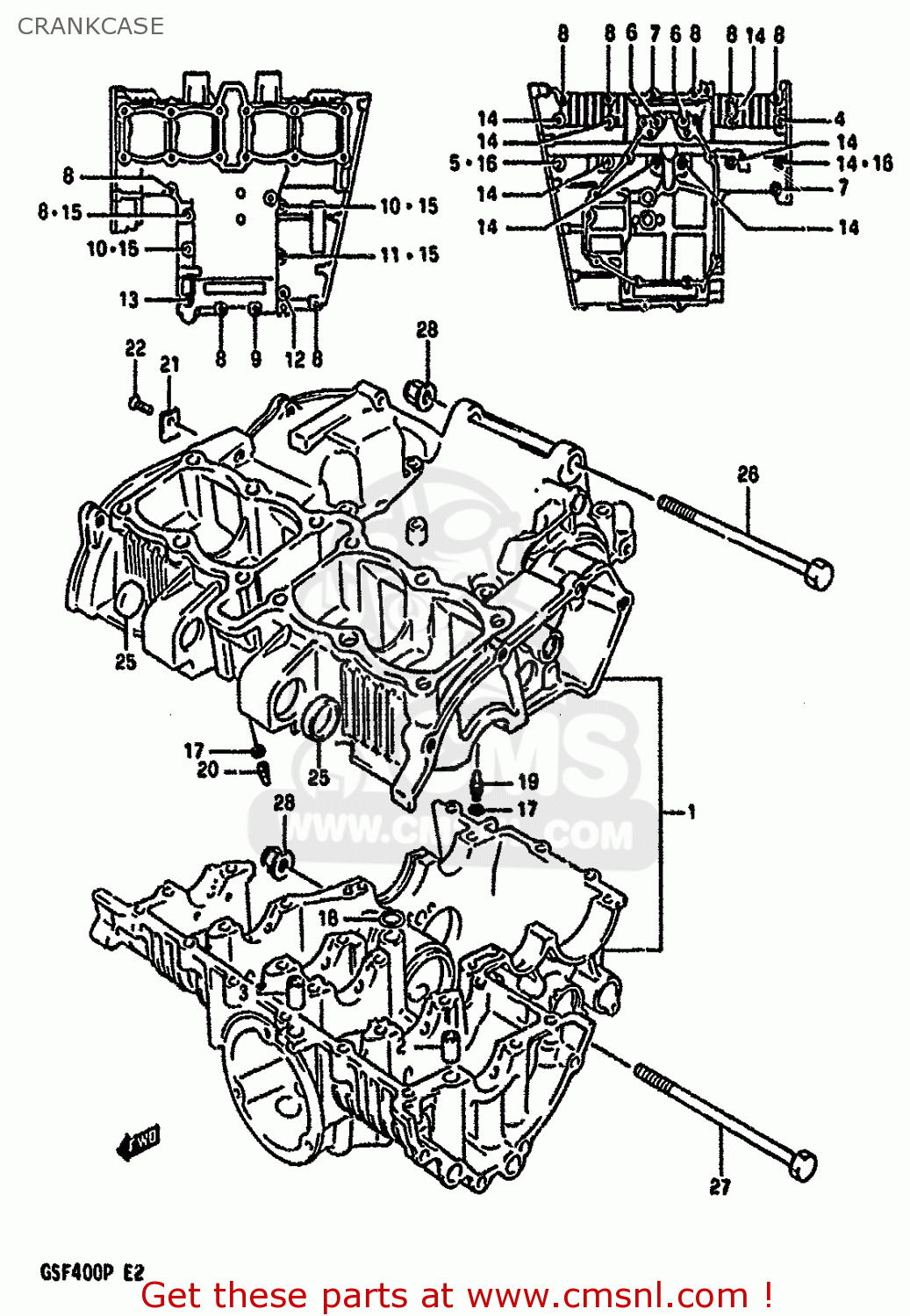

CRANKCASE

ref

part #

description

quantity

1

1130010862
ref: 1
-11300-10861

CRANKCASE SET

€ 1,720.00

2

0920611005
ref: 2

PIN (11X20)(SUS)

€ 6.50

3

0920613004
ref: 3

PIN(10.4X13X22)

€ 3.00

4

0910308239
ref: 4

BOLT

€ 4.50

5

0910308179
ref: 5

BOLT(8X105)

€ 4.00

6

0711008555
ref: 6

BOLT

€ 3.50

7

0151706305
ref: 7

BOLT 6X30

€ 2.50

8

0151706354
ref: 8

BOLT 6X35

€ 2.50

9

0151706455
ref: 9

BOLT (6X45)

€ 2.50

10

0151706555
ref: 10

BOLT 6X55

€ 2.00

11

0151706655
ref: 11

BOLT

€ 2.50

12

0151706705
ref: 12

BOLT

€ 2.50

13

0151708555
ref: 13

BOLT

€ 3.00

14

0910308105
ref: 14

BOLT(8X95)

€ 3.00

15

0916806018
ref: 15

GASKET(6.2X13X1.2) (NAS)

€ 2.00

16

0916808016
ref: 16

GASKET(8.2X14X1) (NAS)

€ 1.00

17

0928004004
ref: 17

O RING(D:1.2,ID:4)

€ 2.00

18

0928013004
ref: 18

O RING(D:1.9,ID:13)

€ 2.50

19

0949380005
ref: 19

JET(8)

€ 12.00

20

0949380007
ref: 20

JET,OIL

€ 14.00

21

1131934200
ref: 21

PLATE,OIL GALLERY PLUG

€ 2.50

22

0212206167
ref: 22

SCREW

€ 2.00

23

1222843414
ref: 23
SEE ILLUSTRATION ON

PLATE,CRANK THRUST

€ 9.50

24-1

1222843411
ref: 24-1
SEE ILLUSTRATION ON

PLATE,CRANK THRUST

€ 8.50

24-2

1222843412
ref: 24-2

PLATE,CRANK THRUST

€ 8.50

24-3

1222843413
ref: 24-3

PLATE,CRANK THRUST

€ 8.00

24-4

1222843414
ref: 24-4

PLATE,CRANK THRUST

€ 9.50

24-5

1222843415
ref: 24-5

BEARING,THRUST

€ 8.50

24-6

1222843416
ref: 24-6

PLATE,CRANK THRUST

€ 9.50

25

0924125008
ref: 25

PLUG

€ 3.50

26

0910310085
ref: 26

BOLT 10X135

€ 4.00

27

0910310135
ref: 27

BOLT 10X145

€ 6.00

28

0915910044
ref: 28

NUT (10MM)

€ 4.00
