HEADLAMP HOUSING

GSF400 1993 (P) (E02 E04 E16 E21 E22 E25 E30 E34 E53)

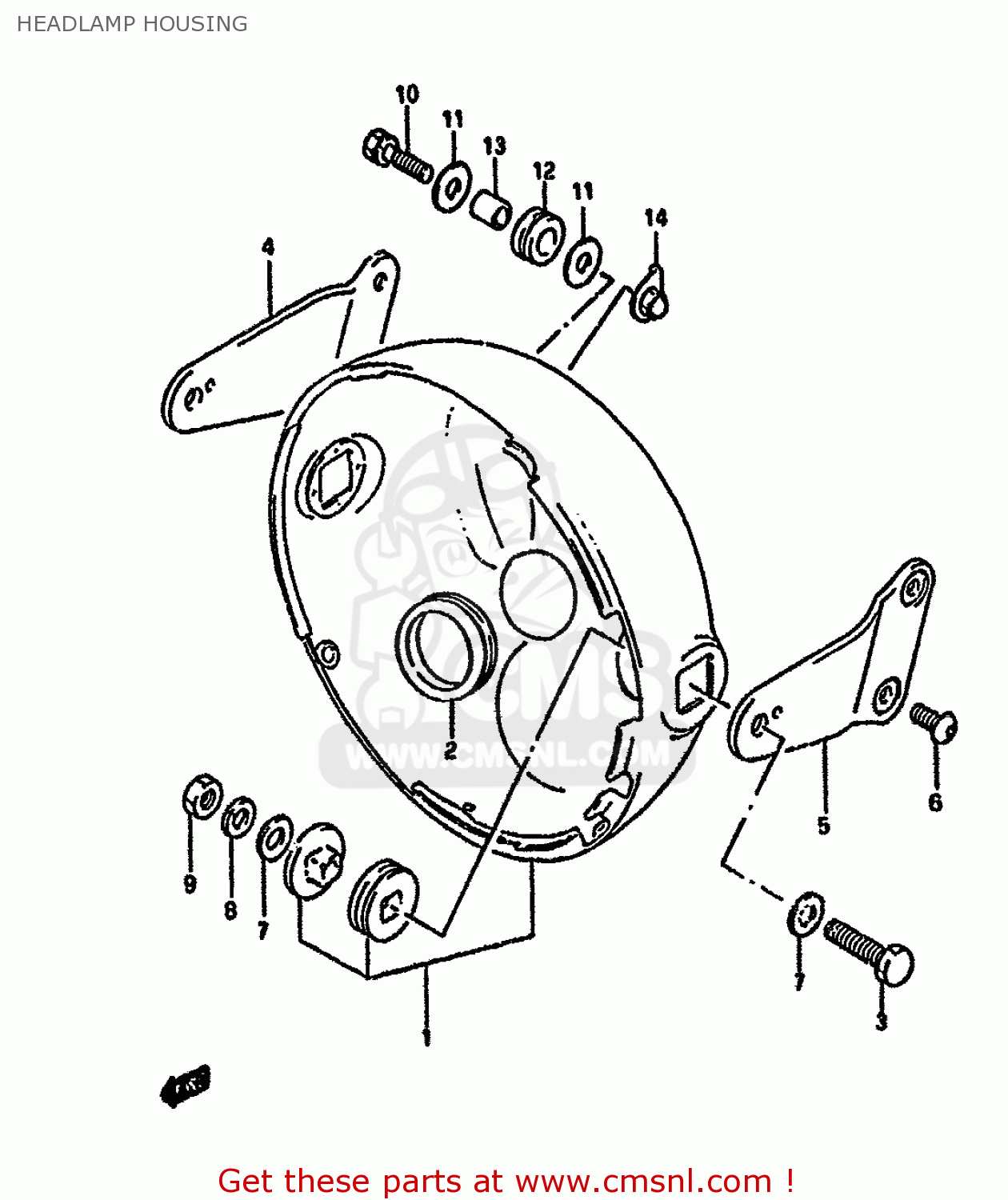

Headlamp housing diagram GSF400 1993 (P) (E02 E04 E16 E21 E22 E25 E30 E34 E53)

prices are in EUR

ref

part #

description

quantity

1-1

5181001D10
ref: 1-1
MODEL M

HOUSING COMP,HEADLAMP

€ 124.00

1-2

5181001D11
ref: 1-2
MODEL N/P

HOUSING,HEADLAMP

€ 124.00

5181701D00
ref: 2

GROMMET

€ 4.50

0120408307
ref: 3

BOLT

€ 2.50

5185110D00
ref: 4

STAY,HEADLAMP HOUSING,R

€ 47.00

5186110D00
ref: 5

STAY,HEADLAMP HOUSING,L

€ 53.00

0913906027
ref: 6

SCREW(6X12)

€ 3.00

0832211088
ref: 7

WASHER

€ 2.00

0832121088
ref: 8

LOCK WASHER

€ 2.00

0831012088
ref: 9

NUT

€ 2.00

0123406258
ref: 10

BOLT

€ 1.50

0916006006
ref: 11

WASHER

€ 2.00

0932010015
ref: 12

CUSHION

€ 2.50

0918007004
ref: 13

SPACER(6.5X10.5X12)

€ 2.50

5181506C00
ref: 14

PLATE,HEADLAMP

€ 5.00
