FRONT CALIPER (E22)

GSF400 1993 (P) (E02 E04 E16 E21 E22 E25 E30 E34 E53)

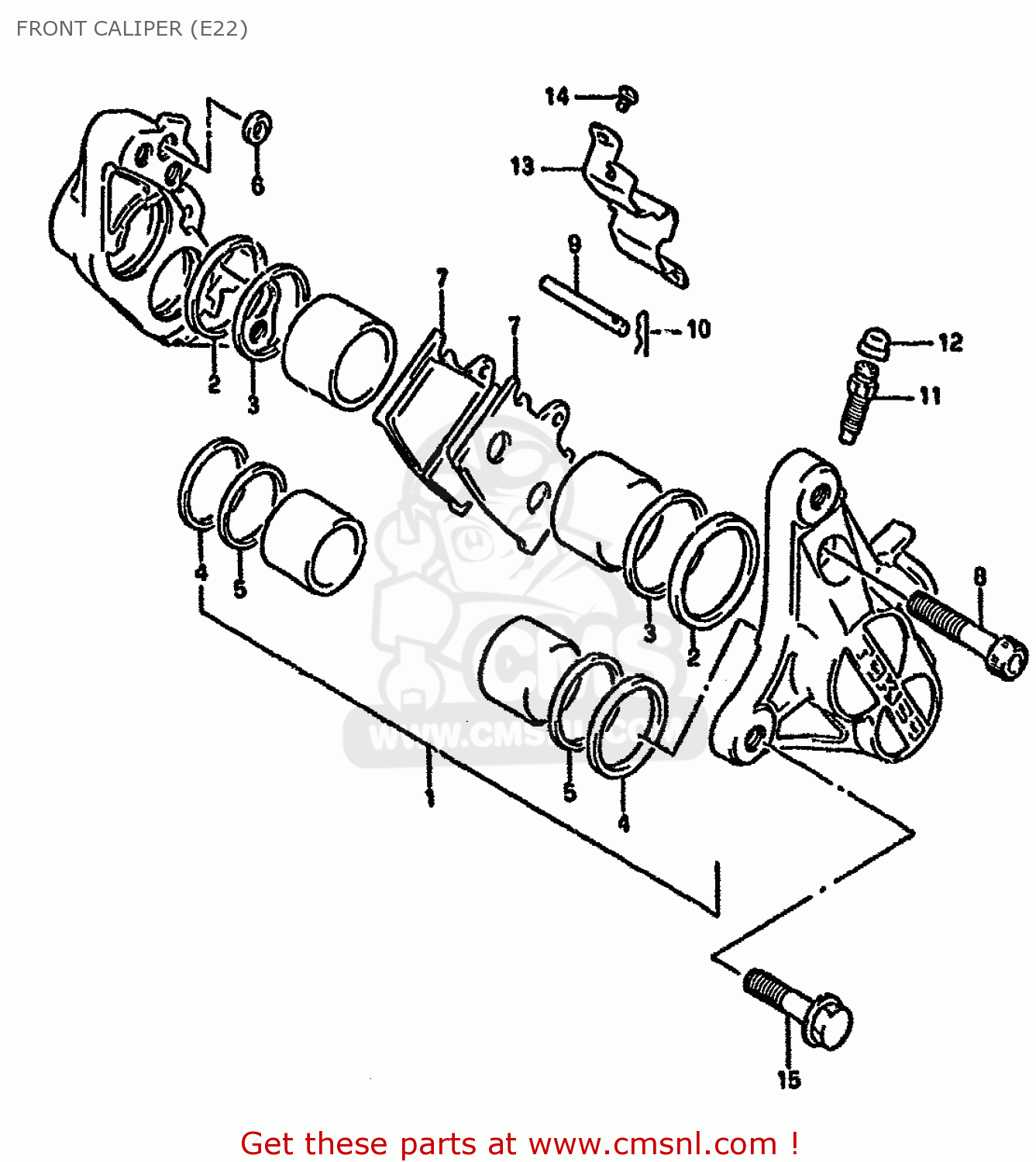

Front caliper (e22) diagram GSF400 1993 (P) (E02 E04 E16 E21 E22 E25 E30 E34 E53)

prices are in EUR

ref

part #

description

quantity

5910006C42
ref: 0

CALIPER ASSY,FRONT RH

€ 515.50

5930006C42
ref: 0

CALIPER ASSY,FRONT LH

€ 515.50

5910032811
ref: 1

PISTON SET,BRK

€ 293.00

5910739100
ref: 2

SEAL,PISTON

€ 18.00

5910836A00
ref: 3

SEAL,WIPER

€ 14.50

5910703A00
ref: 4

SEAL

€ 9.00

5910832C00
ref: 5

SEAL,WIPER

€ 16.00

6910734200
ref: 6

SEAL,JOINT

€ 12.00

5913038C00
ref: 7

PAD

€ 43.00

5914500A00
ref: 8

BOLT,CALIPER

€ 18.00

6914145000
ref: 9

PIN,PAD

€ 6.50

6914245000
ref: 10

CLIP,PAD PIN

€ 4.50

5912118410
ref: 11

BLEEDER

€ 8.00

5912218410
ref: 12

CAP,BREATHER

€ 6.00

13-1

5915222D00
ref: 13-1

COVER,DUST,R.

€ 15.00

13-2

5915122D00
ref: 13-2

COVER,DUST,L.

€ 15.00

5915322D00
ref: 14

SCREW

€ 4.50

0151710308
ref: 15

BOLT

€ 3.50
