prices are in EUR
ref
part #
description
quantity

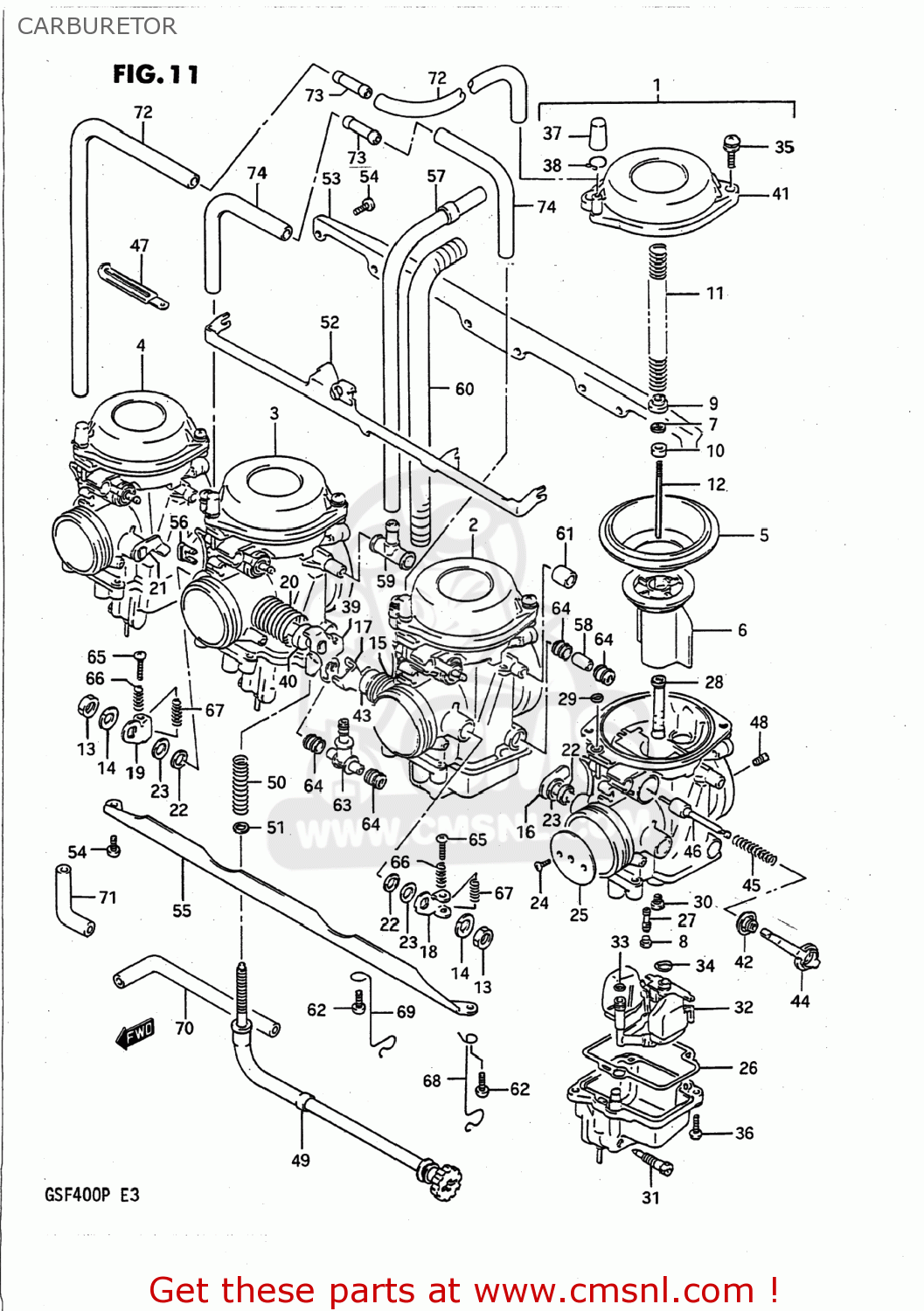

1-1
CARBURETOR ASSEMBLY,LEFT
1-2
CARBURETOR ASSEMBLY,LEFT
1-3
CARBURETOR ASSEMBLY,LEFT
1-4
NO PRODUCT DESCRIPTION AVAILABLE
2-1
CARBURETOR ASSEMBLY,MIDDLE,LEFT
2-2
CARBURETOR ASSEMBLY,MIDDLE,LEFT
2-3
CARBURETOR ASSEMBLY,MIDDLE,LEFT
2-4
NO PRODUCT DESCRIPTION AVAILABLE
3-1
CARBURETOR ASSEMBLY,MIDDLE,RIGHT
3-2
CARBURETOR ASSEMBLY,MIDDLE,RIGHT
3-3
CARBURETOR ASSEMBLY,MIDDLE,RIGHT
3-4
NO PRODUCT DESCRIPTION AVAILABLE
4-1
CARBURETOR ASSEMBLY,RIGHT
4-2
CARBURETOR ASSEMBLY,RIGHT
4-3
CARBURETOR ASSEMBLY,RIGHT
4-4
NO PRODUCT DESCRIPTION AVAILABLE
6
VALVE,PISTON
7
CLIP
8
PLUG
9
RING
10-1
RING
11
SPRING
12
NEEDLE,JET(5EZ74)
15-2
SPRING
22
SEAL
23
GASKET,THROTTLE SHAFT (NAS)
25-1
VALVE,THROTTLE (130)
25-2
VALVE,THROTTLE (130)
26
GASKET,FLOAT CHAMBER (NAS)
27
JET,PILOT(32.5)
28-1
JET,NEEDLE(O-9)
29
O RING
30-1
JET,MAIN(102.5)
30-2
JET,MAIN(105)
31
SCREW
32-1
FLOAT/NEEDLE VALVE ASSY
32-2
FLOAT/NEEDLE VALVE ASSY
33
O RING
34
O-RING,NEEDLE VALVE
35
SCREW
37
CAP
38
CLIP
41
COVER,DIAPHRAGM
42
CAP,STARTER
44
HOLDER,GUIDE
45
SPRING
48-1
JET,AIR
48-3
JET,PILOT AIR(1.5)
51
WASHER
52
LEVER
56
HOLDER
59
3 WAY
60
PROTECTOR,HOSE
63
NIPPLE
64
SEAL
65
SCREW
66
SPRING
67
SPRING
