RADIATOR
GSF400 BANDIT 1991 (M) USA (E03)

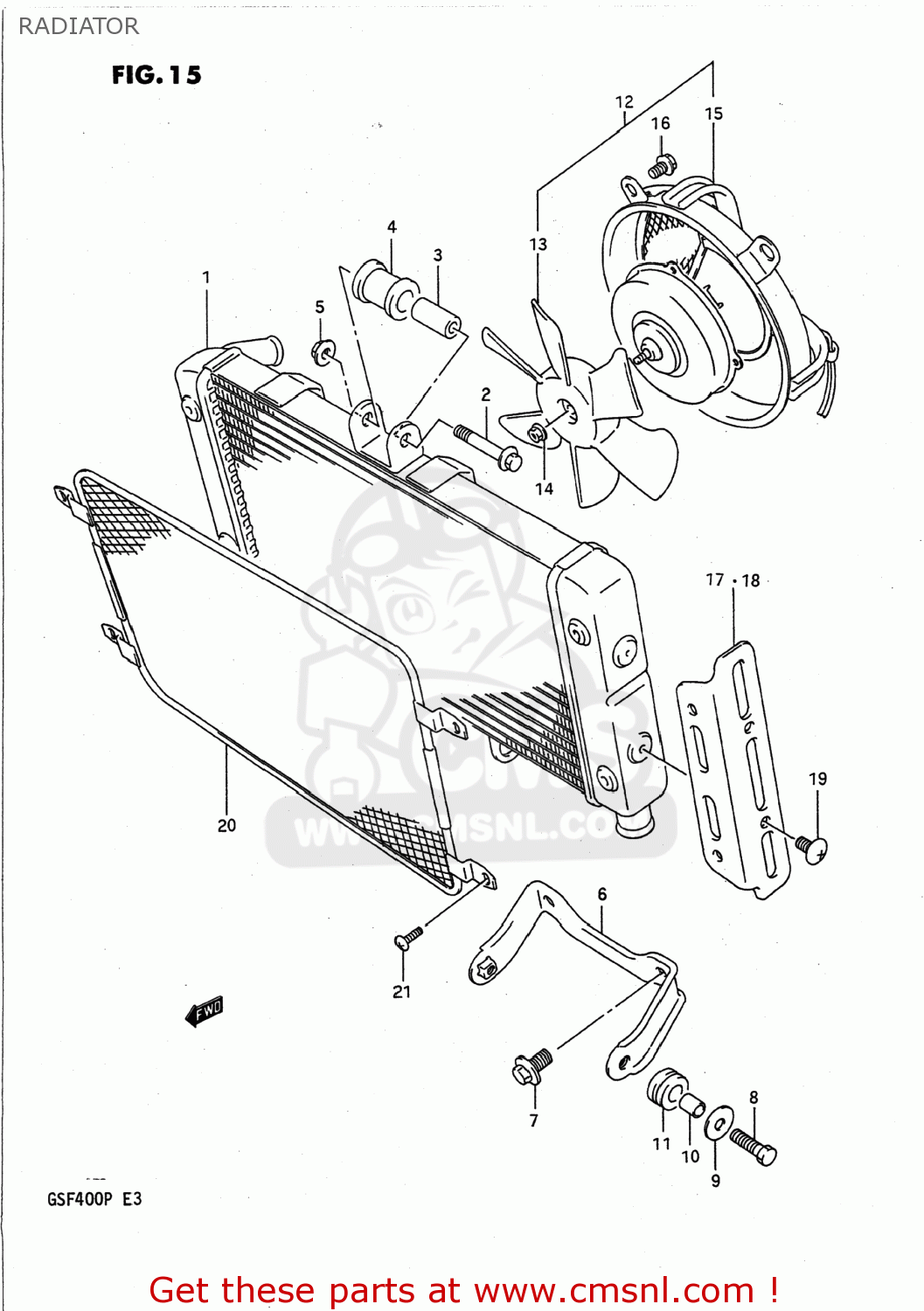

Radiator diagram GSF400 BANDIT 1991 (M) USA (E03)
RADIATOR GSF400 BANDIT 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1771010D00
ref: 1
RADIATOR ASSEMBLY,WATER
€ 926.50
2
0151706455
ref: 2
01550-0645A
BOLT (6X45)
€ 2.50
3
0918006216
ref: 3
09180-06313
SPACER
€ 4.50
4
0932012051
ref: 4
CUSHION
€ 0.00
5
0831616064
ref: 5
08316-1006B
NUT 6MM
€ 2.50
6
1774110D00
ref: 6
BRACKET COMP,ROTOR,LOWER
€ 12.00
7
0151708165
ref: 7
01550-0816A
BOLT, LOWER
€ 3.00
8
0151706204
ref: 8
01550-0620A
BOLT 6X20
€ 2.50
9
0916006063
ref: 9
09160-06054
WASHER (6.5X22X1.6)
€ 2.00
10
0918006213
ref: 10
09180-06290
SPACER (6.8X10X12)
€ 2.50
11
0932010042
ref: 11
CUSHION
€ 4.00
12
1778010D10
ref: 12
FAN ASSY,RADIATOR
€ 416.00
13
1782010D00
ref: 13
FAN ASSY
€ 49.50
14
0831626066
ref: 14
08316-1006B
NUT
€ 2.00
15
1777010D10
ref: 15
17770-10D20
SHROUD,FAN
€ 67.50
16
0151706108
ref: 16
01550-06107
BOLT
€ 2.50
17
1776110D01
ref: 17
COVER,RADIATOR,R
€ 45.00
18
1776210D01
ref: 18
COVER,RADIATOR
€ 50.50
19
0913906027
ref: 19
SCREW(6X12)
€ 3.00
20-1
1779010D01
ref: 20-1
17790-10D02
NET,RADIATOR
€ 60.50
20-2
1779010D02
ref: 20-2
NET,RADIATOR
€ 60.50
21
0912504024
ref: 21
SCREW(4X12)
€ 2.50
