TRANSMISSION
GSF400 BANDIT 1991 (M) USA (E03)

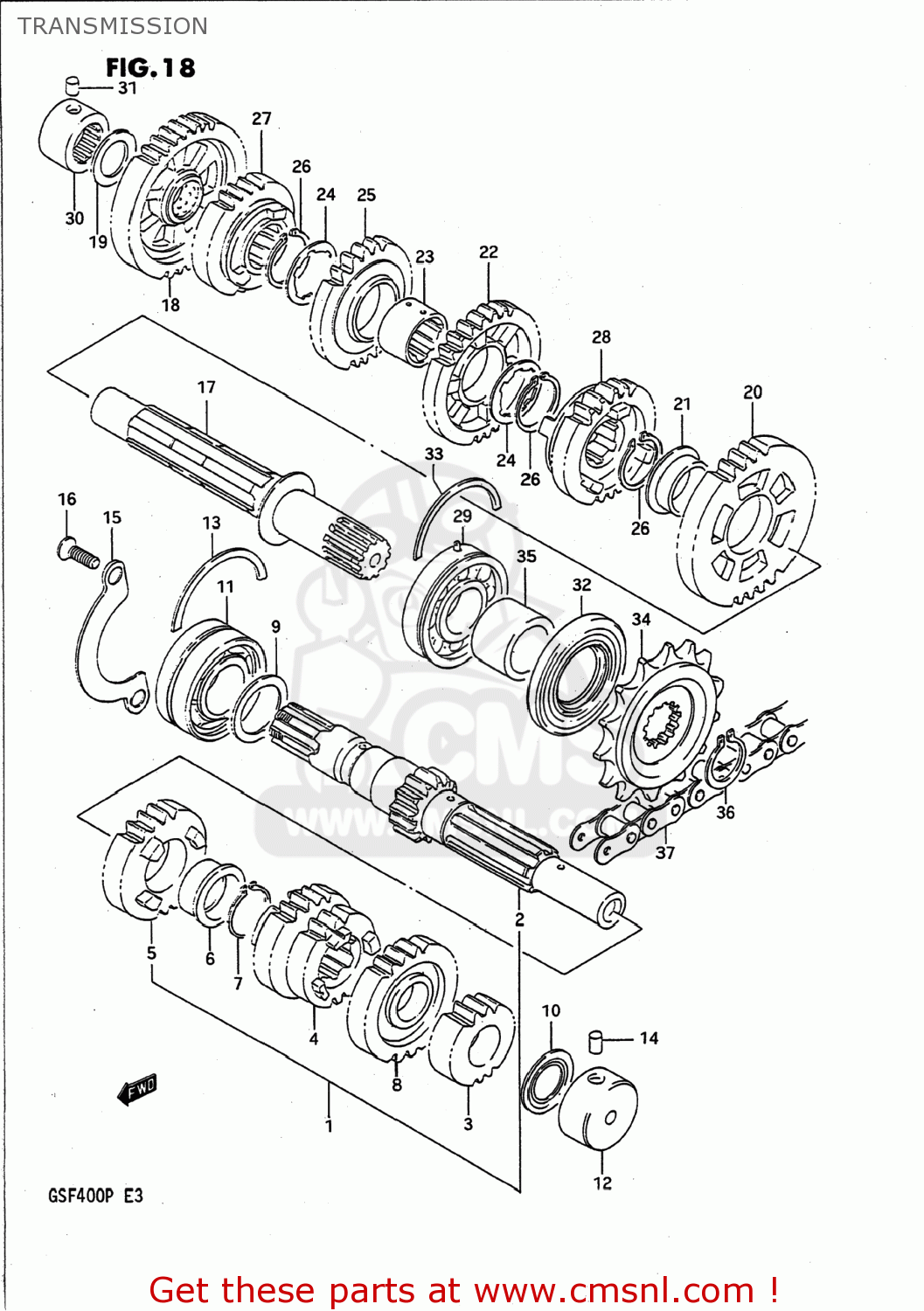

Transmission diagram GSF400 BANDIT 1991 (M) USA (E03)
TRANSMISSION GSF400 BANDIT 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2412032C00
ref: 1-1
SHAFT,COUNTER
€ 188.50
1-2
2412034C00
ref: 1-2
SHAFT,COUNTER
€ 195.50
2
2412130B01
ref: 2
24121-30B02
COUNTER SHAFT NT:11
€ 189.00
3
2422130B00
ref: 3
24221-30B01
GEAR,2ND DRIVE
€ 63.00
4
2423132C02
ref: 4
GEAR,3RD & 4TH DRIVE(NT:16/16)
€ 114.50
4
2423132C02
ref: 4
GEAR,3RD & 4TH DRIVE(NT:16/16)
€ 114.50
5
2425132C01
ref: 5
GEAR,5TH DRIVE(NT:24)
€ 72.50
6
0930122003
ref: 6
BUSH
€ 17.50
7
0833131226
ref: 7
08331-3122A
CIRCLIP
€ 2.00
8-1
2426032C00
ref: 8-1
GEAR,6TH DRIVE(NT:20)
€ 74.50
8-2
2426034C00
ref: 8-2
24260-34C10
GEAR,SIXTH DRIVE
€ 112.50
9
0821125341
ref: 9
09181-25167
WASHER
€ 3.50
10
0928517003
ref: 10
SEAL,OIL(17X28.5X2.5)
€ 7.50
11
0926725008
ref: 11
BEARING(25X52X19.6)
€ 79.00
12
0926317044
ref: 12
BEARING(17X34X16)
€ 52.50
13
0939058001
ref: 13
C RING
€ 2.00
14
0422107129
ref: 14
PIN
€ 1.50
15
2474138401
ref: 15
RETAINER,CNTR SHAFT BEARING
€ 5.50
16
0212206167
ref: 16
SCREW
€ 2.00
17
2413132C00
ref: 17
SHAFT,DRIVE
€ 186.50
18
2431030B00
ref: 18
24310-33C00
GEAR,FIRST DRIVEN
€ 114.50
19
0821120321
ref: 19
09181-20223
WASHER,THRUST
€ 3.00
20
2432130B00
ref: 20
GEAR,2ND DRIVEN
€ 108.50
21
0930125002
ref: 21
BUSH
€ 10.50
22
2433130B00
ref: 22
GEAR,3RD DRIVEN
€ 107.50
23
2433230B00
ref: 23
SPACER,3RD DRIVEN GEAR
€ 28.50
24
0916725022
ref: 24
WASHER,LOCK
€ 5.00
25
2434130B00
ref: 25
24341-30B01
GEAR,FOURTH DRIVEN
€ 62.50
26
0938025003
ref: 26
RING,SNAP
€ 3.00
27
2435132C01
ref: 27
GEAR,5TH DRIVEN(NT:30)
€ 103.50
28-1
2436132C01
ref: 28-1
24361-32C02
GEAR,SIXTH DRIVEN
€ 69.50
28-2
2436134C01
ref: 28-2
24361-34C11
GEAR,SIXTH DRIVEN
€ 117.00
29
0926222017
ref: 29
09262-22028
BEARING
€ 59.50
30
0926320040
ref: 30
BEARING(20X34X20)
€ 42.50
31
0422107129
ref: 31
PIN
€ 1.50
32
0928330044
ref: 32
SEAL,OIL(30X56X6)
€ 13.00
33
0939056001
ref: 33
C RING
€ 3.00
34
2751032C00
ref: 34
SPROCKET,ENGINE(NT:14)
€ 59.00
35
0918022043
ref: 35
SPACER(22X30X21.4)
€ 15.00
36
0833131226
ref: 36
08331-3122A
CIRCLIP
€ 2.00
37
2760032C10114
ref: 37
CHAIN,DRIVE(525V9X114LE)
€ 160.00
37
2760032C10114
ref: 37
CHAIN,DRIVE(525V9X114LE)
€ 160.00
