REAR FENDER
GSF400 BANDIT 1991 (M) USA (E03)

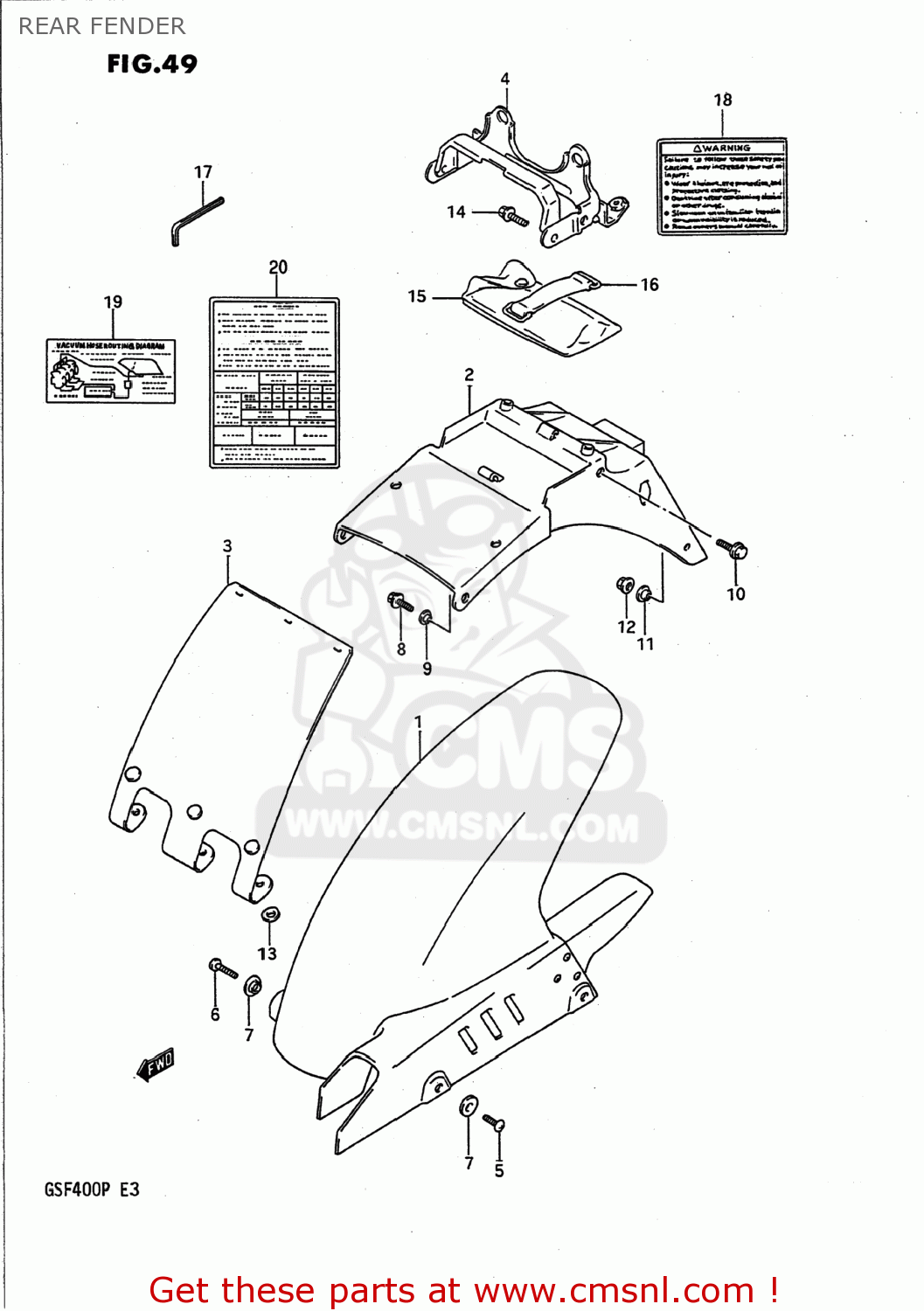

Rear fender diagram GSF400 BANDIT 1991 (M) USA (E03)
REAR FENDER GSF400 BANDIT 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6311010D00
ref: 1-1
63110-10D11
FENDER,REAR
€ 104.50
1-2
6311010D01
ref: 1-2
63110-10D11
FENDER COMP,REAR,LOWER
€ 104.50
2
6311310D20
ref: 2
BODY,RR FENDER UPR
€ 84.00
3
6341010D00
ref: 3
MUDGUARD ASSY,RR FENDER
€ 38.00
4
4717010D10
ref: 4
BRACKET,FRAME COVER
€ 34.50
5
0214206125
ref: 5
02142-0612A
SCREW 6X12
€ 2.00
6
0214206164
ref: 6
02142-0616A
SCREW
€ 2.50
7
0916906026
ref: 7
WASHER
€ 2.00
8
0151706167
ref: 8
01550-06167
BOLT 6X16
€ 1.50
9
0916906053
ref: 9
WASHER
€ 2.00
10
0151708307
ref: 10
01550-08307
BOLT 8X30
€ 3.50
11
0916908034
ref: 11
WASHER
€ 2.00
12
0831616088
ref: 12
08316-10087
NUT
€ 2.50
13
0916006069
ref: 13
09160-06052
WASHER
€ 2.00
14
0151706167
ref: 14
01550-06167
BOLT 6X16
€ 1.50
15
0980020034
ref: 15
09800-21006
TOOL SET
€ 45.50
16
0946200034
ref: 16
BAND
€ 4.50
17
0981600103
ref: 17
SPANNER,HEXAGON(4)
€ 3.00
18
6831940C00
ref: 18
68319-33E01
LABEL
€ 8.00
19
6838710D10
ref: 19
LABEL (VACUUM HOSE ROUTING)
€ 0.00
20
6833210D11
ref: 20
LABEL (TIRE AIR PRESSURE)
€ 4.00
