CYLINDER HEAD COVER
GSF400 BANDIT 1991 (M) USA (E03)

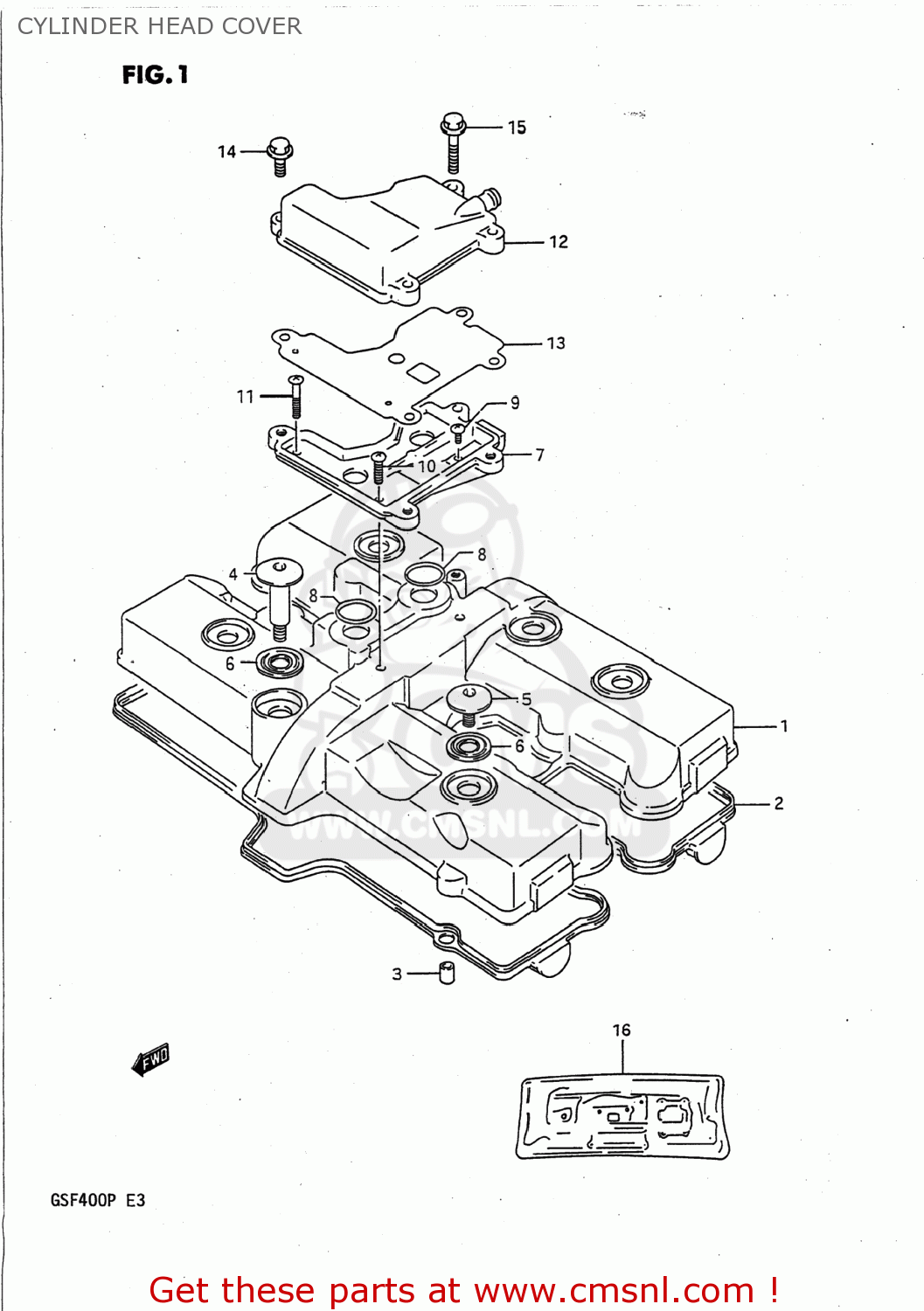

Cylinder head cover diagram GSF400 BANDIT 1991 (M) USA (E03)
CYLINDER HEAD COVER GSF400 BANDIT 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1117110D00
ref: 1
COVER,CYLINDER HEAD
€ 125.00
2
1117330B02
ref: 2
GASKET,CYLINDER HEAD COVER (NAS)
€ 36.00
3
0920608001
ref: 3
PIN(6.2X8X11)
€ 2.00
4
0910607016
ref: 4
BOLT(7X37)
€ 5.50
5
0910607015
ref: 5
BOLT(7X18.5)
€ 6.00
6
0916111008
ref: 6
WASHER(10.6X25.5X2.3)
€ 4.50
7
1117733C00
ref: 7
COVER,BREATHER,LOWER
€ 21.00
8
0928019005
ref: 8
O RING(D:2.4,ID:19)
€ 2.00
9
0211205106
ref: 9
02112-0510A
SCREW 5X10
€ 2.00
10
0211205206
ref: 10
02112-0520B
SCREW
€ 2.50
11
0211205306
ref: 11
02112-0530A
SCREW
€ 1.50
12
1118033C00
ref: 12
COVER,BREATHER,UPPER
€ 28.50
13
1117933C00
ref: 13
GASKET,BREATHER COVER (NAS)
€ 12.00
14
0151706207
ref: 14
01550-06207
BOLT 6X20
€ 2.50
15
0151706358
ref: 15
01550-06357
BOLT 6X35
€ 2.50
16-1
1140032864
ref: 16-1
11400-32880
GASKET SET (NAS)
€ 183.50
16-2
1140032867
ref: 16-2
11400-32880
GASKET SET (NAS)
€ 183.50
