GEAR SHIFTING
GSF400 BANDIT 1991 (M) USA (E03)

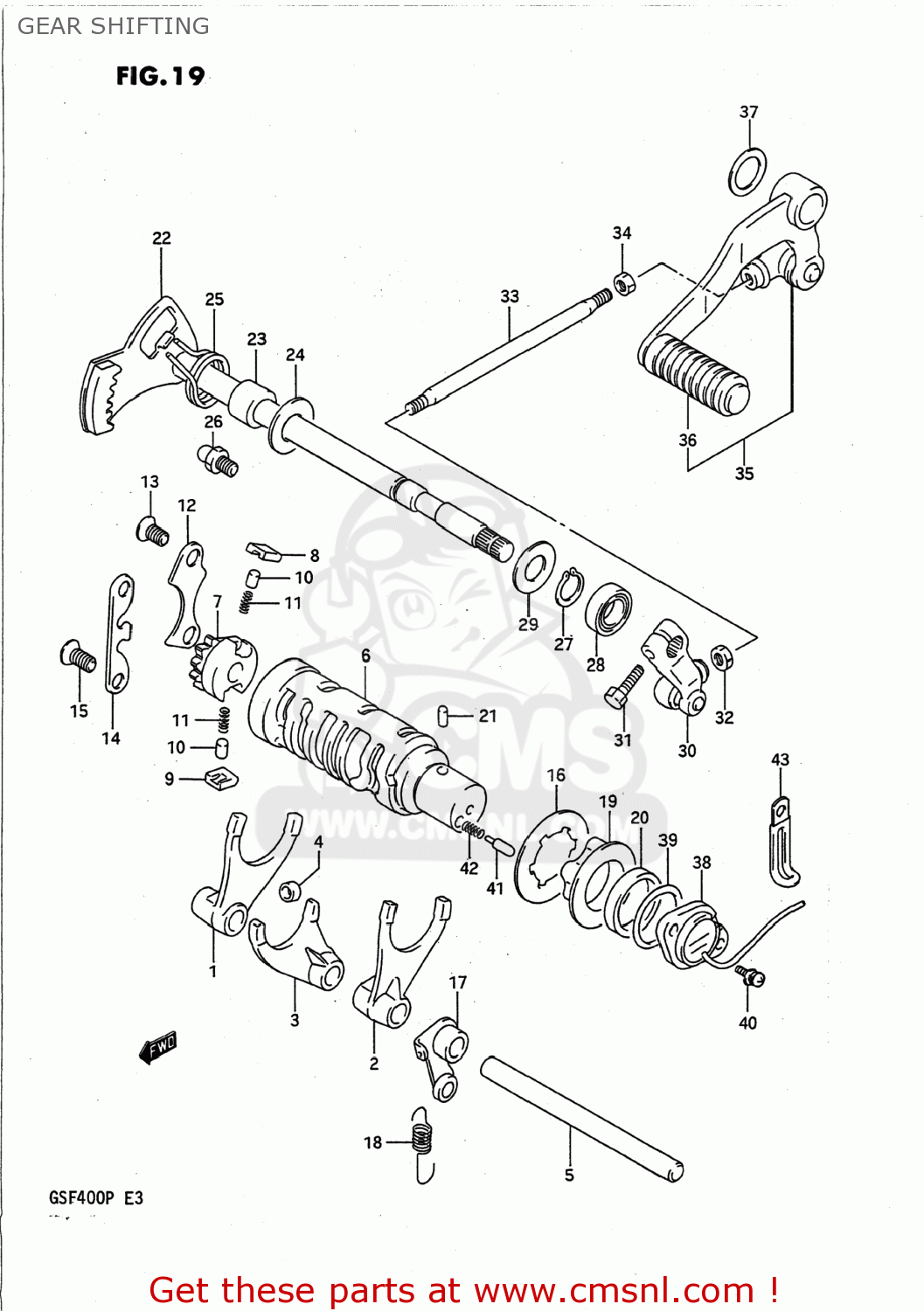

Gear shifting diagram GSF400 BANDIT 1991 (M) USA (E03)
GEAR SHIFTING GSF400 BANDIT 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521130B00
ref: 1
FORK,GEAR SHIFT NO.1
€ 38.50
2
2522134C00
ref: 2
FORK,GEAR SHIFT NO.2
€ 84.00
3
2523130B01
ref: 3
FORK,GEAR SHIFT NO.3
€ 79.00
4
0918006086
ref: 4
SPACER(6X9.8X6)
€ 2.50
5
2541130B00
ref: 5
SHAFT,GEAR SHIFT FORK
€ 14.00
6
2531034C01
ref: 6
CAM,GEAR SHIFT
€ 112.00
7
2532231301
ref: 7
25322-31310
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
8
2532334201
ref: 8
PAWL,GEAR SHIFT NO.1
€ 6.00
9
2532434201
ref: 9
PAWL,GEAR SHIFT NO.2
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
€ 1.50
11
0944004003
ref: 11
SPRING
€ 1.50
12
2533132C00
ref: 12
LIFTER,GEAR SHIFT PAWL
€ 4.00
13
0212206128
ref: 13
02122-06127
SCREW
€ 3.00
14
2534138401
ref: 14
GUIDE,GEAR SHIFT CAM
€ 8.50
15
0212206128
ref: 15
02122-06127
SCREW
€ 3.00
16
0916730007
ref: 16
WASHER,LOCK
€ 2.50
17
2535038400
ref: 17
25350-38401
STOPPER,GEAR SHIFTING
€ 8.00
18
0944309033
ref: 18
SPRING
€ 7.00
19
2538137400
ref: 19
25381-37401
PLATE,SHIFT CAM STOPPER
€ 10.50
20
0918025095
ref: 20
SPACER (25X30.1X6)
€ 0.00
21
0621104063
ref: 21
04221-04069
PIN 4X6
€ 2.00
22
2551010D00
ref: 22
SHAFT,GEAR SHIFT
€ 49.00
23
0918012126
ref: 23
SPACER(12X20X13.8)
€ 0.00
24
0821112262
ref: 24
WASHER
€ 1.50
25
0944426015
ref: 25
SPRING
€ 4.00
26
2567136A00
ref: 26
STOPPER,GEAR SHIFT ARM
€ 3.00
27
0833131126
ref: 27
08331-3112A
CIRCLIP,12 MM
€ 2.00
28
0928512002
ref: 28
09285-12006
OIL SEAL
€ 7.00
29
0916014003
ref: 29
09160-14054
WASHER (14.2X22X1)
€ 1.00
30
2552032C00
ref: 30
ARM,GEAR SHIFT LINK
€ 46.00
31
0110706207
ref: 31
01500-06207
BOLT
€ 2.00
32
0831011067
ref: 32
08310-00067
NUT 6MM
€ 2.50
33
2552507A01
ref: 33
25525-07A10
ROD,GEAR SHIFT LINK
€ 12.00
34
0914006011
ref: 34
NUT
€ 1.50
35-1
2560010D00
ref: 35-1
25600-10D10
LEVER ASSEMBLY,GEAR SHIFTING
€ 64.00
35-2
2560010D01
ref: 35-2
25600-10D10
LEVER ASSEMBLY,GEAR SHIFTING
€ 64.00
36
2565220C00
ref: 36
RUBBER,GEAR SHIFT PEDAL
€ 8.00
37
0916118003
ref: 37
09160-18022
WASHER(18.2X27X1)
€ 3.00
38
3772032C00
ref: 38
BASE ASSY,NEUTRAL SW TERMINAL
€ 38.50
39
0928026003
ref: 39
09280-26005
O-RING (D:2.4 ID:26.2)
€ 2.50
40
0913805003
ref: 40
09138-05011
SCREW
€ 1.50
41
0920905011
ref: 41
PIN(5X15.5)
€ 2.00
42
0944004010
ref: 42
SPRING
€ 1.50
43
0940406422
ref: 43
09404-06429
CLAMP
€ 2.50
