HEADLAMP (MODEL P)
GSF400 BANDIT 1991 (M) USA (E03)

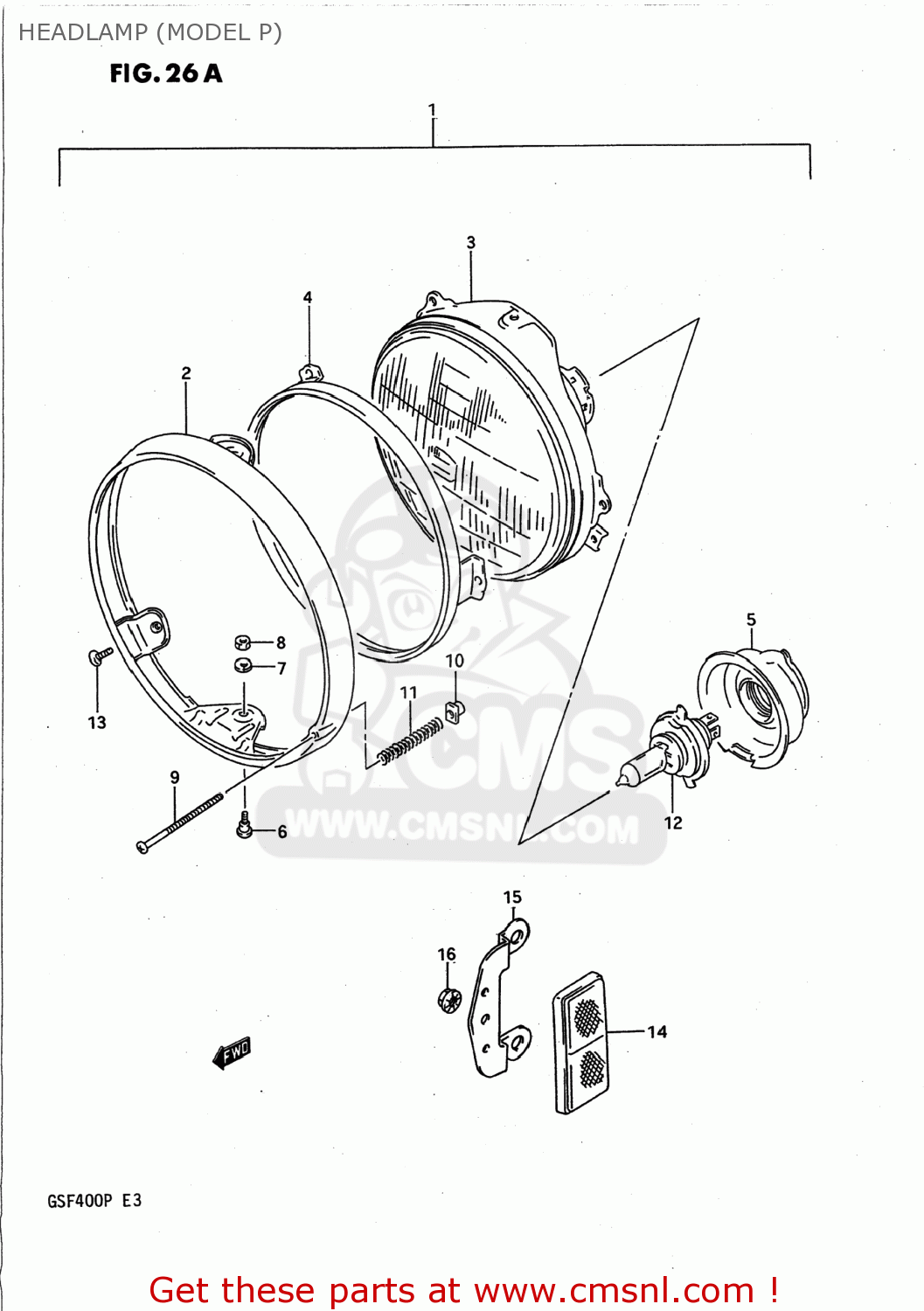

Headlamp (model p) diagram GSF400 BANDIT 1991 (M) USA (E03)
HEADLAMP (MODEL P) GSF400 BANDIT 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3510010D30999
ref: 1
35100-10D70-999
HEADLAMP ASSEMBLY
€ 244.00
2
3511101D20
ref: 2
RIM,HEADLAMP
€ 55.50
3
3512110D30
ref: 3
LAMP UNIT
€ 113.00
4
3512745030
ref: 4
RETAINING RING
€ 19.50
5
3517320A01
ref: 5
COVER,SOCKET
€ 14.50
6
3518115611
ref: 6
H/LAMP LENS UNIT FITING SCRE
€ 3.00
7
0832121057
ref: 7
08321-0105A
LOCK WASHER
€ 2.00
8
0831011056
ref: 8
08310-0005A
NUT
€ 2.50
9
3515145030
ref: 9
35151-45900
SCREW,HEADLAMP ADJUST
€ 4.00
10
3515215611
ref: 10
NUT
€ 3.50
11
3515431900
ref: 11
SPRING,ADJUSTING
€ 3.50
12
0947112060
ref: 12
BULB(12V60/55W,H4)
€ 8.00
13
0213205127
ref: 13
02122-05127
SCREW 5X12
€ 2.50
14
3595043431
ref: 14
REFLEX REFLECTOR,FR SIDE
€ 12.00
15
3595610D00
ref: 15
BRACKET,FRONT SIDE REFLECTOR
€ 7.50
16
0831626055
ref: 16
08316-2005A
NUT
€ 2.00
