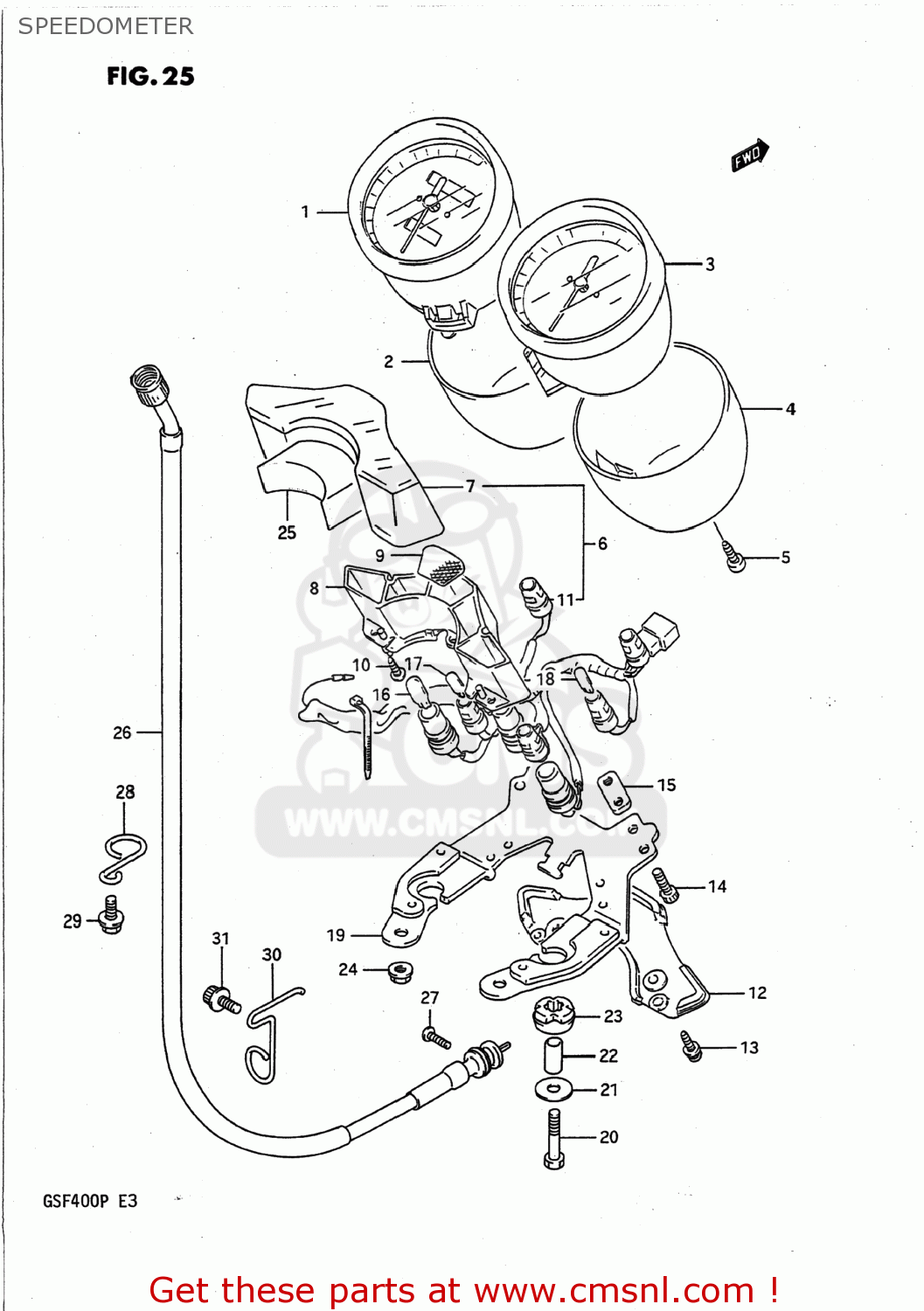

SPEEDOMETER

ref

part #

description

quantity

1

3411010D40
ref: 1

SPEEDOMETER(KILO)

€ 228.50

2

3411110D00
ref: 2

LWR CASE,SPEEDOMETER

€ 56.00

3-1

3421010D00
ref: 3-1
34210-10D01

TACHOMETER

€ 495.50

3-2

3421010D01
ref: 3-2

TACHOMETER

€ 495.50

4

3421110D00
ref: 4
34211-10D01

LOWER CASE,TACHOMETER

€ 52.00

5

3418310D10
ref: 5

SCREW

€ 3.00

6

3638010D00
ref: 6
36380-10D90

BOX PILOT

€ 314.50

7

3639310D00
ref: 7

UPR CASE

€ 54.50

8

3638110D00
ref: 8

INNER CASE

€ 20.50

9

3630010830
ref: 9
36300-10840

LENS SET,PILOT

€ 22.00

10

0311204129
ref: 10
03111-0412A

SCREW

€ 1.50

11

3417010D00
ref: 11

SOCKET

€ 86.00

12

3638310D00
ref: 12

LOWER CASE

€ 30.00

13

0311114165
ref: 13

SCREW

€ 2.00

14

3419910D00
ref: 14
07130-0520B

BOLT

€ 1.50

15

3411810D00
ref: 15

PLATE

€ 5.50

16

0947112082
ref: 16

BULB(12V3.4W,T10,BF175-01450A)

€ 3.50

17

0947112085
ref: 17

BULB(12V3W,WB371,T7)

€ 3.00

18

0947112100
ref: 18

BULB(12V1.7W,WB372,T7)

€ 2.00

19

3495011D00
ref: 19

BRACKET,METER

€ 45.50

20-1

0110706305
ref: 20-1
01500-0630A

BOLT

€ 2.50

20-2

0110706307
ref: 20-2
01500-06307

BOLT 6X30

€ 2.50

21-1

0916006102
ref: 21-1
09160-06088

WASHER (6.5X20X1.6)

€ 2.00

21-2

0916006020
ref: 21-2
09160-06066

WASHER

€ 2.00

22

0918006094
ref: 22
09180-06251

SPACER

€ 2.00

23

0932009040
ref: 23

CUSHION

€ 2.50

24

0831931055
ref: 24
08319-3105B

NUT

€ 3.00

25

3416110D02
ref: 25

CUSHION,PILOT LAMP

€ 12.00

26

3491011D01
ref: 26

CABLE ASSY,SPEEDOMETER

€ 75.50

27

0211205164
ref: 27

SCREW

€ 2.00

28

3493810D00
ref: 28

CLAMP,SPEEDOMETER CABLE

€ 2.00

29

0111406125
ref: 29
01550-0612A

BOLT

€ 2.50

30

3493811D00
ref: 30
34938-11D0V

CLAMP,SPEEDOMETER CABLE

€ 7.50

31-1

0910610059
ref: 31-1
09103-10195

BOLT

€ 2.00

31-2

0910310195
ref: 31-2

BOLT(10X12)

€ 2.00
