CYLINDER HEAD
GSF400 BANDIT 1991 (M) USA (E03)

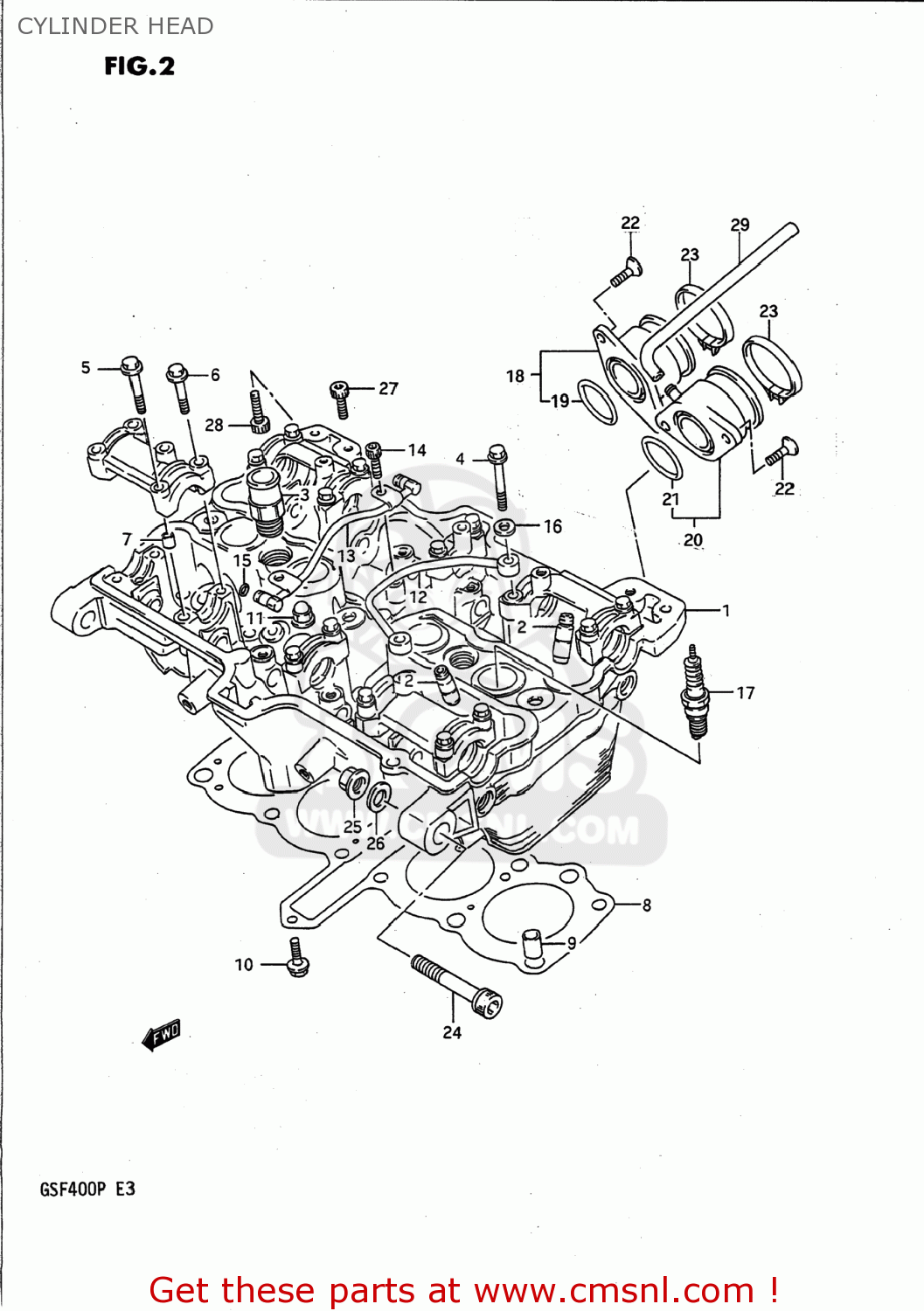

Cylinder head diagram GSF400 BANDIT 1991 (M) USA (E03)
CYLINDER HEAD GSF400 BANDIT 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110010D00
ref: 1-1
11100-10D01
HEAD ASSEMBLY,CYLINDER
€ 1,891.00
1-2
1110010D01
ref: 1-2
HEAD ASSEMBLY,CYLINDER
€ 1,891.00
2
1111532C70
ref: 2
11115-32C71
GUIDE,VALVE
€ 17.50
3-1
1118132C03
ref: 3-1
11181-32C04
UNION,WATER HOSE
€ 22.00
3-2
1118132C04
ref: 3-2
UNION,WATER HOSE
€ 22.00
4
0910306013
ref: 4
09103-06165
BOLT
€ 2.50
5
0910306026
ref: 5
BOLT(6X39)
€ 2.00
6
0910306108
ref: 6
BOLT(6X35)
€ 2.00
7
0920608001
ref: 7
PIN(6.2X8X11)
€ 2.00
8
1114132C01
ref: 8
11141-32C10
GASKET,CYLINDER HEAD (NAS)
€ 49.00
9
0421111189
ref: 9
PIN
€ 2.00
10
0151706254
ref: 10
01550-0625A
BOLT
€ 2.50
11
0831321087
ref: 11
08313-20087
NUT 8MM
€ 2.50
12
1296130B01
ref: 12
PIPE,OIL CYLINDER HEAD,L
€ 43.00
13
1296130B10
ref: 13
PIPE,OIL CYLINDER HEAD
€ 17.00
14
0711006126
ref: 14
07130-0612A
BOLT,STRANGER
€ 2.00
15
0928005004
ref: 15
O RING(D:1.9,ID:4.8)
€ 2.00
16
0832221066
ref: 16
08322-0106B
WASHER, LOWER
€ 2.00
17-1
0948200412
ref: 17-1
PLUG,SPARK(CR8EK)
€ 11.00
17-10
0948200463
ref: 17-10
PLUG,SPARK(U31ETR)
€ 10.50
17-2
0948200413
ref: 17-2
PLUG,SPARK(U24ETR)
€ 11.00
17-3
0948200410
ref: 17-3
PLUG,SPARK(CR9EK)
€ 10.50
17-4
0948200411
ref: 17-4
09482-00459
PLUG,SPARK(U27ETR)
€ 8.50
17-5
0948200410
ref: 17-5
PLUG,SPARK(CR9EK)
€ 10.50
17-6
0948200414
ref: 17-6
PLUG,SPARK(CR7EK)
€ 12.50
17-7
0948200411
ref: 17-7
09482-00459
PLUG,SPARK(U27ETR)
€ 8.50
17-8
0948200415
ref: 17-8
PLUG,SPARK(U22ETR)
€ 13.50
17-9
0948200462
ref: 17-9
PLUG,SPARK(CR10EK)
€ 10.50
18
1310110D00
ref: 18
PIPE ASSY,INTAKE
€ 46.50
19
0928036002
ref: 19
09280-36004
O-RING
€ 11.50
20
1310210D00
ref: 20
PIPE ASSY,INTAKE NO.2
€ 50.50
21
0928036002
ref: 21
09280-36004
O-RING
€ 11.50
22
0912606014
ref: 22
SCREW(6X16)
€ 2.00
23
0940248208
ref: 23
CLAMP
€ 4.50
24
0711010707
ref: 24
BOLT
€ 4.50
25
0915910044
ref: 25
09159-10115
NUT (10MM)
€ 4.00
26
0916010005
ref: 26
WASHER(10.5X20X3.2)
€ 2.00
27
0713008255
ref: 27
07130-0825B
BOLT
€ 3.50
28-1
0711008305
ref: 28-1
07130-0830A
BOLT, REAR (8X30)
€ 3.00
28-2
0713008255
ref: 28-2
07130-0825B
BOLT
€ 3.50
29-1
0935250823300
ref: 29-1
44420-44AR0
HOSE
€ 13.00
29-1
0935250823300
ref: 29-1
44420-44AR0
HOSE
€ 13.00
29-2
0935450103300
ref: 29-2
44421-13ER0
HOSE
€ 7.50
29-2
0935450103300
ref: 29-2
44421-13ER0
HOSE
€ 7.50
