REAR SWINGING ARM
GSF400 BANDIT 1991 (M) USA (E03)

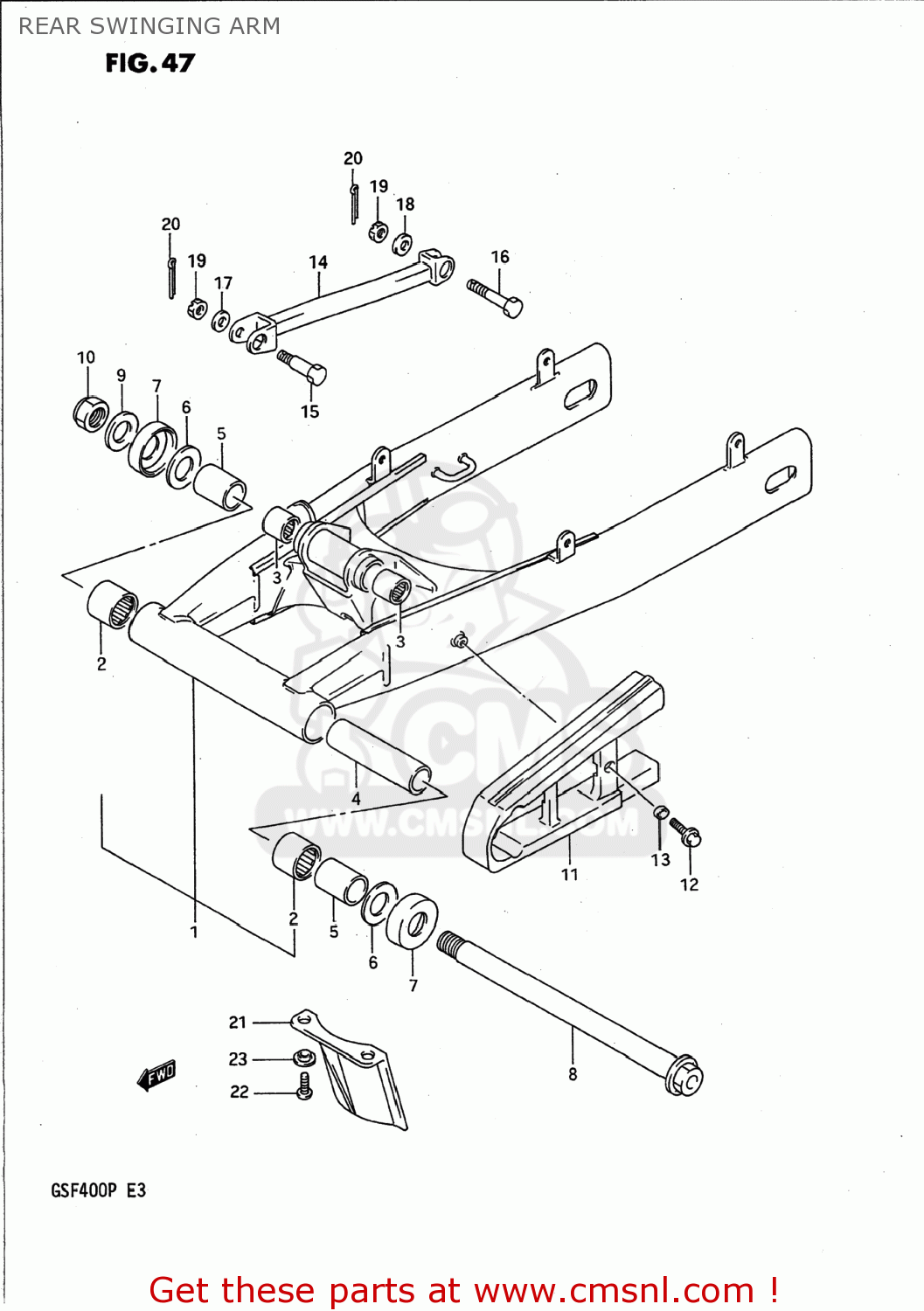

Rear swinging arm diagram GSF400 BANDIT 1991 (M) USA (E03)
REAR SWINGING ARM GSF400 BANDIT 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6100010D010FP
ref: 1-1
61000-10D10-13L
SWING ARM ASSEMBLY,REAR
€ 502.00
1-1
6100010D010FP
ref: 1-1
61000-10D10-13L
SWING ARM ASSEMBLY,REAR
€ 502.00
1-2
6100010D010NH
ref: 1-2
61000-10D10-0NH
SWING ARM ASSEMBLY,REAR
€ 617.00
1-2
6100010D010NH
ref: 1-2
61000-10D10-0NH
SWING ARM ASSEMBLY,REAR
€ 617.00
1-3
6100010D01019
ref: 1-3
61000-10D10-019
SWING ARM ASSEMBLY,REAR
€ 502.00
1-3
6100010D01019
ref: 1-3
61000-10D10-019
SWING ARM ASSEMBLY,REAR
€ 502.00
1-4
6100010D010WP
ref: 1-4
61000-10D10-0WP
SWING ARM ASSEMBLY,REAR
€ 502.00
1-4
6100010D010WP
ref: 1-4
61000-10D10-0WP
SWING ARM ASSEMBLY,REAR
€ 502.00
1-5
6100010D10019
ref: 1-5
SWING ARM ASSEMBLY,REAR
€ 502.00
1-5
6100010D10019
ref: 1-5
SWING ARM ASSEMBLY,REAR
€ 502.00
1-6
6100010D100WP
ref: 1-6
SWING ARM ASSEMBLY,REAR
€ 502.00
1-6
6100010D100WP
ref: 1-6
SWING ARM ASSEMBLY,REAR
€ 502.00
1-7
6100010D101UG
ref: 1-7
SWING ARM ASSEMBLY,REAR
€ 502.00
2
0926325024
ref: 2
BEARING(25X33X30)
€ 31.50
3
0926317037
ref: 3
BEARING(17X24X25)
€ 19.00
4
0918020108
ref: 4
SPACER(20.8X27.2X146)
€ 21.50
5
6125117C00
ref: 5
SPACER,RR SWGARM PIVOT BERRING
€ 36.00
6
0821120381
ref: 6
WASHER
€ 3.00
7
6126210D00
ref: 7
COVER,RR SWGARM PIVOT SEAL
€ 9.00
8
6121106C01
ref: 8
SHAFT,RR SWINGINGARM PIVOT
€ 43.00
9
0832211188
ref: 9
08322-0118B
WASHER
€ 2.50
10
0915918007
ref: 10
NUT
€ 14.00
11
6127310D01
ref: 11
BUFFER,CHAIN TOUCH DEFENCE
€ 28.50
12
0911606111
ref: 12
09116-06152
BOLT 6X20,WITH PLAIN WASHER
€ 2.00
13
0918006142
ref: 13
09180-06255
SPACER
€ 1.50
14-1
6431010D000FP
ref: 14-1
64310-10D00-019
TORQUE LINK,REAR
€ 26.50
14-2
6431010D000NH
ref: 14-2
64310-10D00-019
TORQUE LINK,REAR
€ 26.50
14-3
6431010D00019
ref: 14-3
TORQUELINK,RR
€ 26.50
14-3
6431010D00019
ref: 14-3
TORQUELINK,RR
€ 26.50
14-4
6431010D000WP
ref: 14-4
64310-10D00-019
TORQUE LINK,REAR
€ 26.50
15
0911110011
ref: 15
09111-10022-XC0
BOLT
€ 8.00
16
0910110036
ref: 16
BOLT(10X35)
€ 4.50
17
0916010057
ref: 17
09160-10142
WASHER
€ 2.00
18
0916010069
ref: 18
09160-10005
WASHER (10X18X3.2)
€ 2.00
19
0831441108
ref: 19
08314-4010B
NUT
€ 2.50
20
0411120208
ref: 20
04111-2020A
PIN 20X20
€ 1.50
21
6341142A00
ref: 21
63411C42A00J000
GUARD,RR UNIT MUD
€ 3.50
21
6341142A00
ref: 21
63411C42A00J000
GUARD,RR UNIT MUD
€ 3.50
22
0214206167
ref: 22
SCREW
€ 2.00
23
0916906025
ref: 23
09169-06010
WASHER,LOCK
€ 3.00
