COWLING (GSX1100ESD)

GSX1100X 1983 (D)

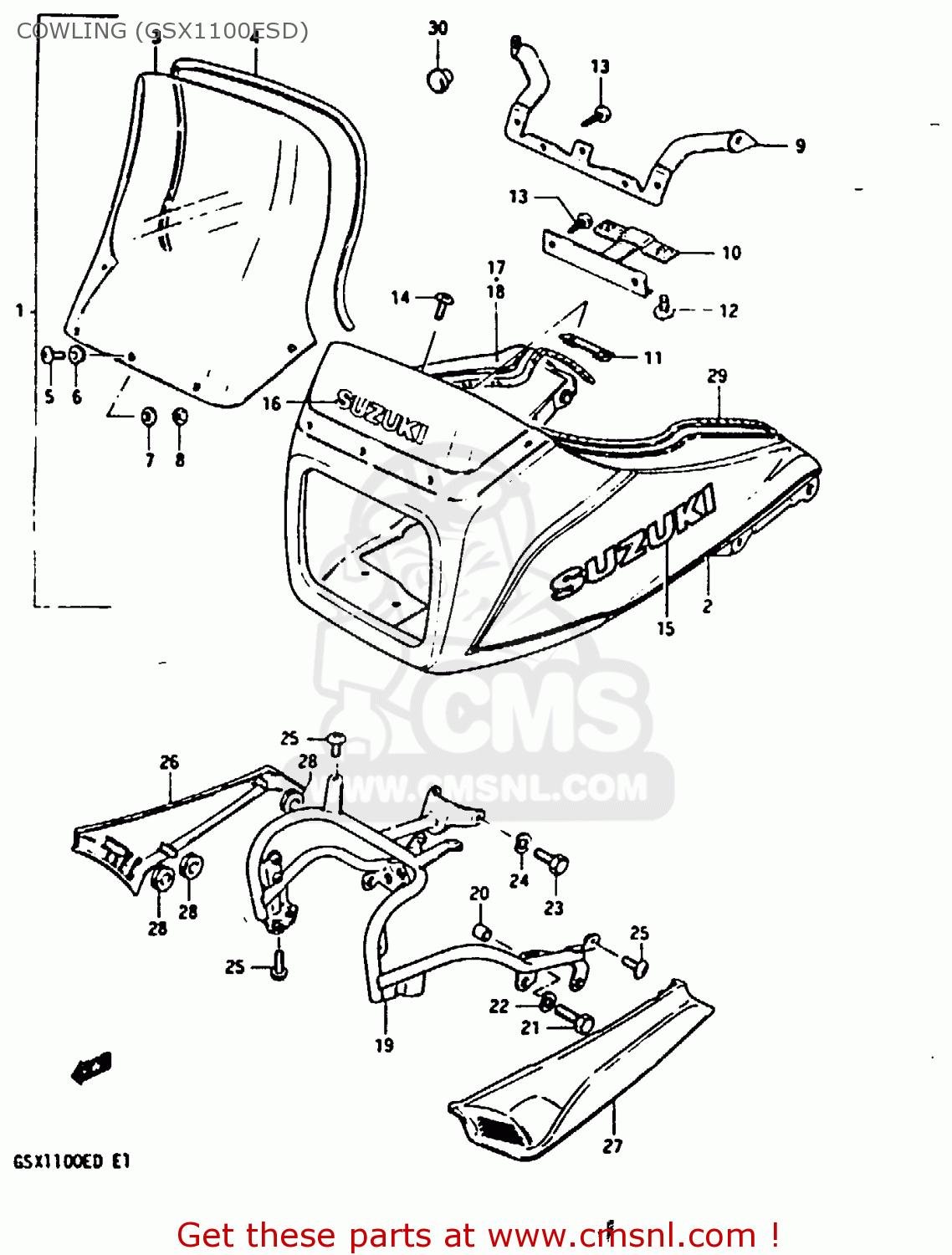

Cowling (gsx1100esd) diagram GSX1100X 1983 (D)

COWLING (GSX1100ESD) GSX1100X 1983 (D)

COWLING (GSX1100ESD) GSX1100X 1983 (D)

prices are in EUR

ref

part #

description

quantity

1-1

944004950086S
ref: 1-1
(RED/BLACK)

COWLING ASSY

€ 886.00

1-2

944004950091J
ref: 1-2
(BLUE/WHITE)

COWLING ASSY

€ 886.00

1-3

NOTUSED
ref: 1-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-4

NOTUSED
ref: 1-4

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2-1

681904950082S
ref: 2-1
FOR 86S

TAPE SET,COWLING

€ 0.00

2-2

681904950093K
ref: 2-2
FOR 91J

TAPE SET,COWLING

€ 0.00

3-1

9461131310
ref: 3-1

WINDOW

€ 318.50

3-2

NOTUSED
ref: 3-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

4-1

9463131310
ref: 4-1

MOLDING

€ 18.00

4-2

NOTUSED
ref: 4-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

5

0913905023
ref: 5

SCREW(5X20)

€ 2.00

6

0932005008
ref: 6

CUSHION

€ 5.00

7

0832221058
ref: 7

WASHER

€ 2.50

8

0831011058
ref: 8

NUT

€ 2.50

9

9453031310
ref: 9

BRACE,COWLING,UPPER

€ 18.50

10

9454031310
ref: 10

BRACE,COWLING,LOWER

€ 10.00

11

9455031310
ref: 11

BRACKET

€ 2.50

12

0214206108
ref: 12

SCREW

€ 2.00

13

0321105105
ref: 13

SCREW

€ 1.00

14

0214205108
ref: 14

SCREW RH & LH

€ 2.50

15-1

681314955060D
ref: 15-1
FOR 82S

EMBLEM

€ 10.50

15-2

681314955073H
ref: 15-2
FOR 91J

EMBLEM

€ 11.50

16

6827143400064
ref: 16

EMBLEM,HEADLAMP

€ 4.00

17

6819731300
ref: 17

TAPE,RIGHT

€ 8.50

18

6819831300
ref: 18

TAPE,LEFT

€ 9.50

19

9451031310
ref: 19

BRACE,COWLING

€ 98.00

20

9454931310
ref: 20

SPACER,COWLING BRACE

€ 10.50

21

0110708308
ref: 21

BOLT (8X30)

€ 2.50

22

0832121088
ref: 22

LOCK WASHER

€ 2.00

23

0110708168
ref: 23

BOLT

€ 2.00

24

0832121088
ref: 24

LOCK WASHER

€ 2.00

25

0214206125
ref: 25

SCREW 6X12

€ 2.00

26-1

944314950013Z
ref: 26-1
FOR 82S

COVER,COWLING,RIGHT

€ 36.50

26-2

944314950016D
ref: 26-2
FOR 91J

COVER,COWLING,RIGHT

€ 36.50

27-1

944414950013Z
ref: 27-1
FOR 82S

COVER,COWLING,LEFT

€ 36.50

27-2

944414950016D
ref: 27-2
FOR 91J

COVER,COWLING,LEFT

€ 36.50

28

0932008018
ref: 28

CUSHION

€ 4.00

29

9459331310
ref: 29

MOLDING,FUEL TANK

€ 32.00

30

0925006005
ref: 30
GSX1100 D, ED, XD, E

PLUG(OD:12)

€ 2.00
