LEFT HANDLE SWITCH (MODEL D)

GSX1100X 1983 (D)

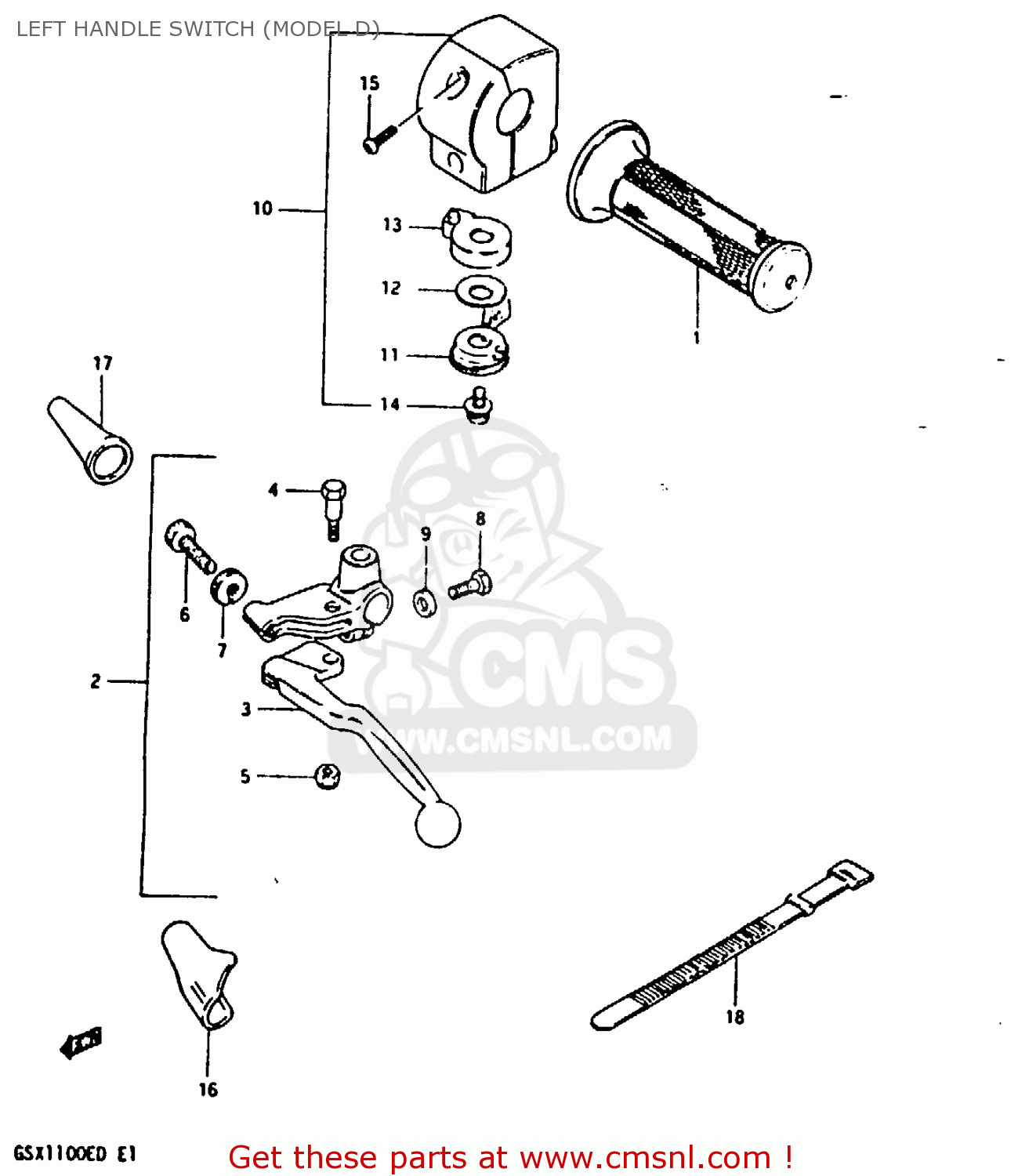

Left handle switch (model d) diagram GSX1100X 1983 (D)

LEFT HANDLE SWITCH (MODEL D) GSX1100X 1983 (D)

LEFT HANDLE SWITCH (MODEL D) GSX1100X 1983 (D)

prices are in EUR

ref

part #

description

quantity

1-1

5721149500
ref: 1-1

GRIP,L

€ 9.00

1-2

5721149510
ref: 1-2

GRIP,L

€ 26.50

2

5750049121
ref: 2

LEVER ASSEMBLY,CLUTCH

€ 49.50

3

5762049101
ref: 3

LEVER,CLUTCH

€ 28.50

4

5743149120
ref: 4

BOLT,LEVER

€ 5.00

5

0831921068
ref: 5

NUT 6MM

€ 2.00

6

5744144400
ref: 6

ADJUSTER,CABLE

€ 5.50

7

5744244400
ref: 7

NUT,CABLE ADJUSTER LOCK

€ 4.00

8

5745149120
ref: 8

BOLT,CLUTCH LEVER HOLDER

€ 2.00

9

5758149120
ref: 9

SPACER

€ 2.00

10-1

3740049513
ref: 10-1
FLAT TYPE

SWITCH ASSY, HANDLE LH

€ 165.00

10-2

3740049553
ref: 10-2
NEUTRAL TYPE

SWITCH ASSY, HANDLE LH

€ 165.00

10-3

NOTUSED
ref: 10-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

10-4

NOTUSED
ref: 10-4

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

10-5

3740049553
ref: 10-5
GSX1100ESD, FLAT TYP

SWITCH ASSY, HANDLE LH

€ 165.00

10-6

NOTUSED
ref: 10-6

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

10-7

NOTUSED
ref: 10-7

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

11

5872127503
ref: 11

LEVER,STARTER

€ 8.00

12

5872203010
ref: 12

WASHER,ADJUSTER

€ 3.00

13

3757249441
ref: 13

BODY,STARTER LEVER

€ 15.50

14

3757449440
ref: 14

SCREW,CHOKE LE

€ 2.50

15

0211205168
ref: 15

SCREW

€ 2.50

16

5766131000
ref: 16

COVER,CLUTCH LEVER

€ 5.50

17

5827331000
ref: 17

BOOT,CLUTCH CABLE

€ 2.50

18

0940712402
ref: 18

CLAMP(L:120)

€ 3.00
