SEAT TAIL COVER (GSX1100XD/EXD)

GSX1100X 1983 (D)

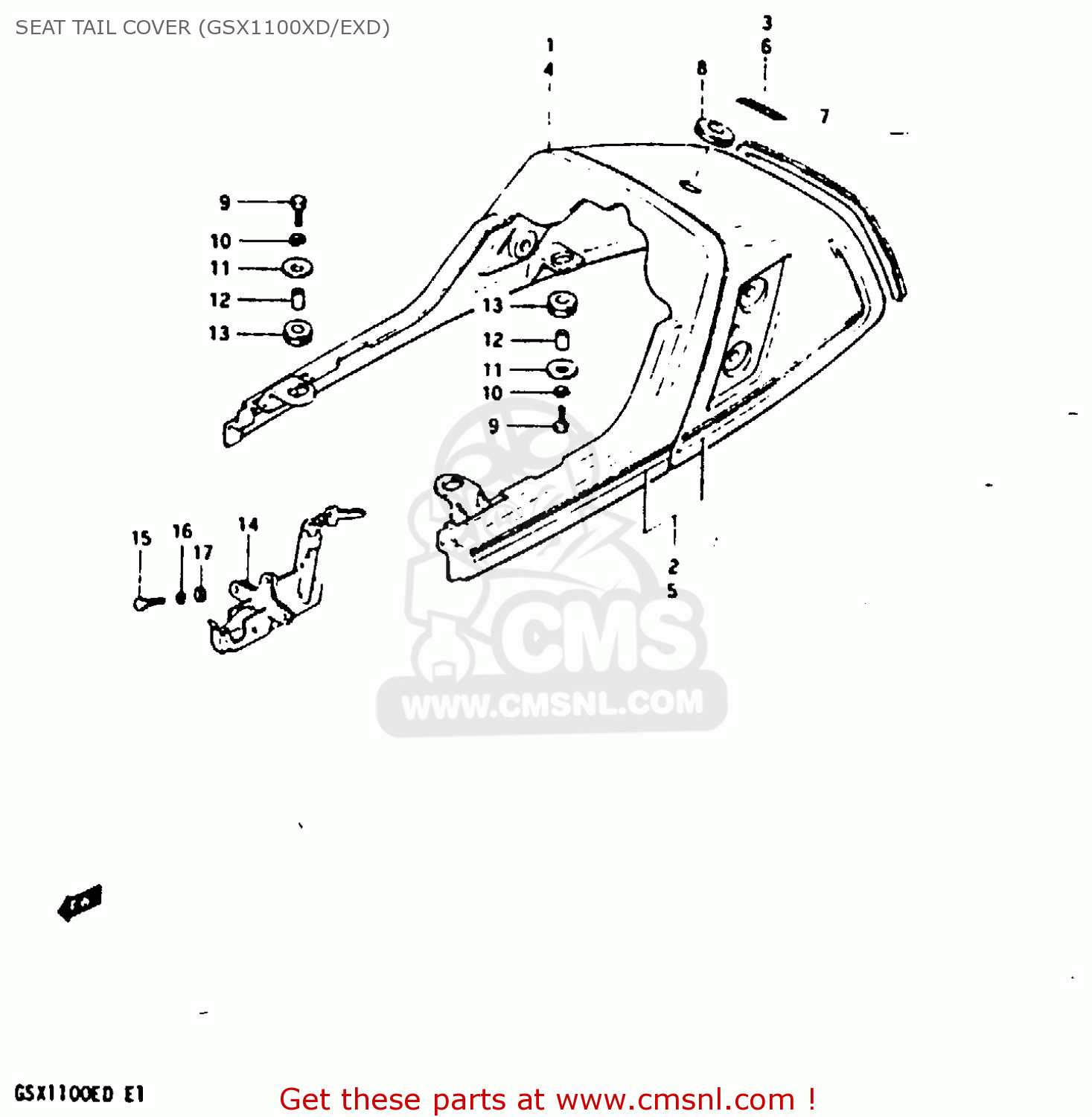

Seat tail cover (gsx1100xd/exd) diagram GSX1100X 1983 (D)

SEAT TAIL COVER (GSX1100XD/EXD) GSX1100X 1983 (D)

SEAT TAIL COVER (GSX1100XD/EXD) GSX1100X 1983 (D)

prices are in EUR

ref

part #

description

quantity

1

455104954013Z
ref: 1

TAIL COVER, SEAT (BLACK)

€ 120.50

2

681604952067N
ref: 2

TAPE SET, SEAT TAIL COVER

€ 0.00

3

681663130008L
ref: 3

EMBLEM (BLUE)

€ 0.00

4

455104954017R
ref: 4

TAIL COVER, SEAT (RED)

€ 120.50

5

681604952065M
ref: 5

TAPE SET, SEAT TAIL COVER

€ 0.00

6

6816631300742
ref: 6

EMBLEM

€ 5.00

7

4556249500
ref: 7

RUBBER,BLIND,SEAT TAIL COVER

€ 20.00

8

4552249200
ref: 8

GROMMET,SEAT LOCK HOLE

€ 5.50

9

0110706208
ref: 9

BOLT

€ 2.00

10

0832121068
ref: 10

LOCK WASHER

€ 2.50

11

0916006012
ref: 11

WASHER(6,5X22X1.6)

€ 2.00

12

0918007004
ref: 12

SPACER(6.5X10.5X12)

€ 2.50

13

0932010011
ref: 13

CUSHION

€ 5.50

14

9570049830
ref: 14

LOCK SET,SEAT

€ 81.50

15

0110706128
ref: 15

BOLT

€ 2.00

16

0832121068
ref: 16

LOCK WASHER

€ 2.50

17

0832221068
ref: 17

WASHER

€ 2.00
