FRONT CALIPERS

GSX1100X 1983 (D)

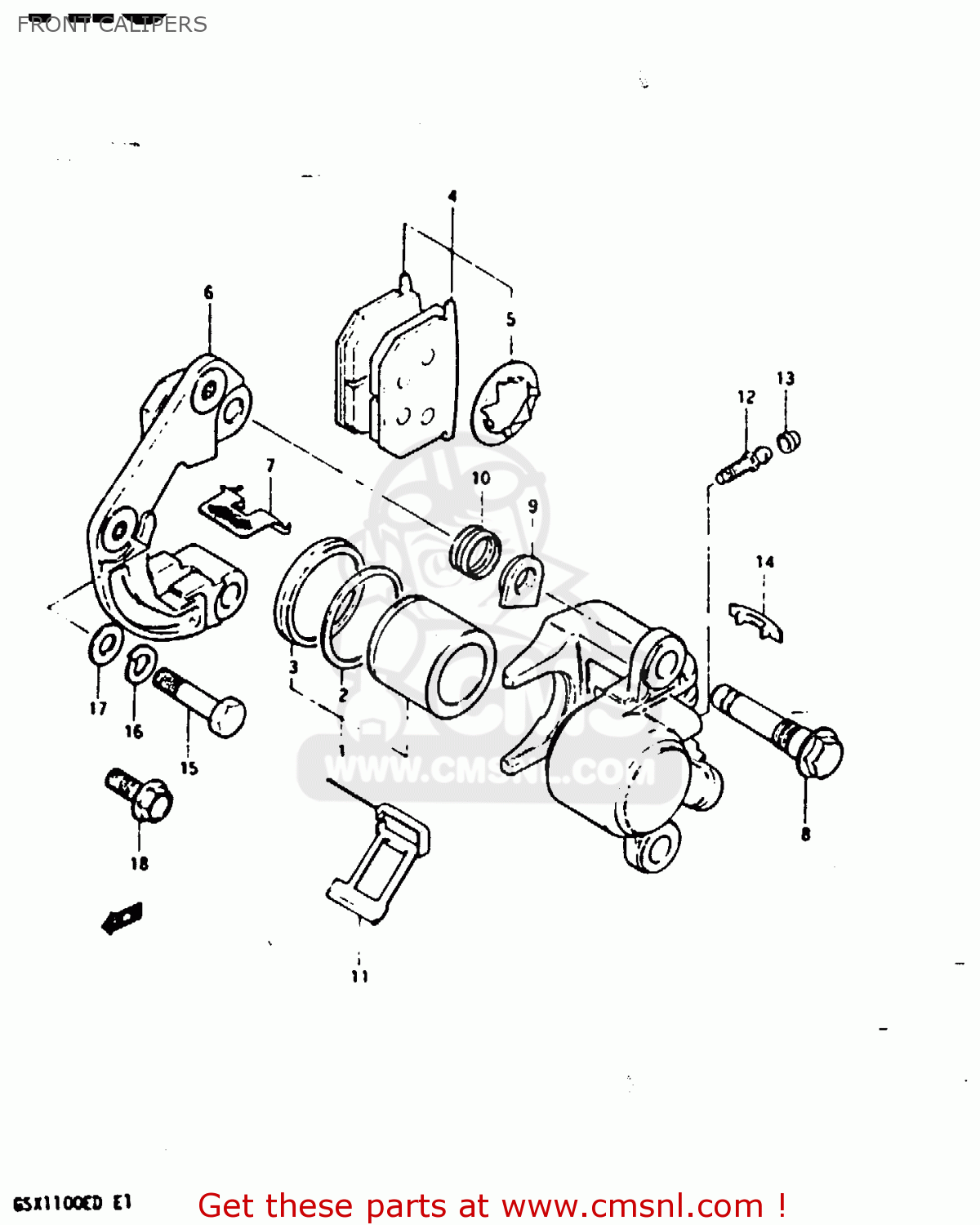

Front calipers diagram GSX1100X 1983 (D)

FRONT CALIPERS GSX1100X 1983 (D)

FRONT CALIPERS GSX1100X 1983 (D)

prices are in EUR

ref

part #

description

quantity

0

5910049002
ref: 0

CARIPER ASSEMBLY,RIGHT

€ 187.50

0

5930049002
ref: 0

CALIPER ASSEMBLY,LEFT

€ 290.00

1

5930049810
ref: 1

PISTON SET

€ 52.50

2

5910734020
ref: 2

SEAL,PISTON

€ 6.50

3

5930849000
ref: 3

BOOT,PISTON

€ 9.00

4

5930049821
ref: 4

PAD & SHIM SET (MCA)

€ 91.00

5

5937149000
ref: 5

SHIM,PAD

€ 7.00

6-1

5915049001
ref: 6-1

HOLDER,CALIPER,RIGHT

€ 96.00

6-2

5935049001
ref: 6-2

HOLDER,CALIPER,LEFT

€ 83.50

7

5931649001
ref: 7

PAD,GUIDE

€ 11.00

8

5930549000
ref: 8

AXLE,CALIPER

€ 42.00

9

5931749000
ref: 9

NUT,CALIPER AXLE

€ 14.00

10

5931249000
ref: 10

BOOT

€ 30.00

11

5931549000
ref: 11

SPRING

€ 9.50

12

5912147050
ref: 12

BREATHER

€ 11.50

13

5247460020
ref: 13

CAP,BLEEDER PL

€ 6.00

14

5932449000
ref: 14

COVER,INDICATOR

€ 12.50

15

0910410012
ref: 15
MODEL Z

BOLT

€ 3.50

16

0832121108
ref: 16
MODEL Z

LOCK WASHER

€ 2.00

17

0832221108
ref: 17
MODEL Z

WASHER

€ 2.50

18

0910310038
ref: 18
MODEL D

BOLT 10X37

€ 3.00
