STARTING MOTOR (GSX1100ESD)

GSX1100X 1983 (D)

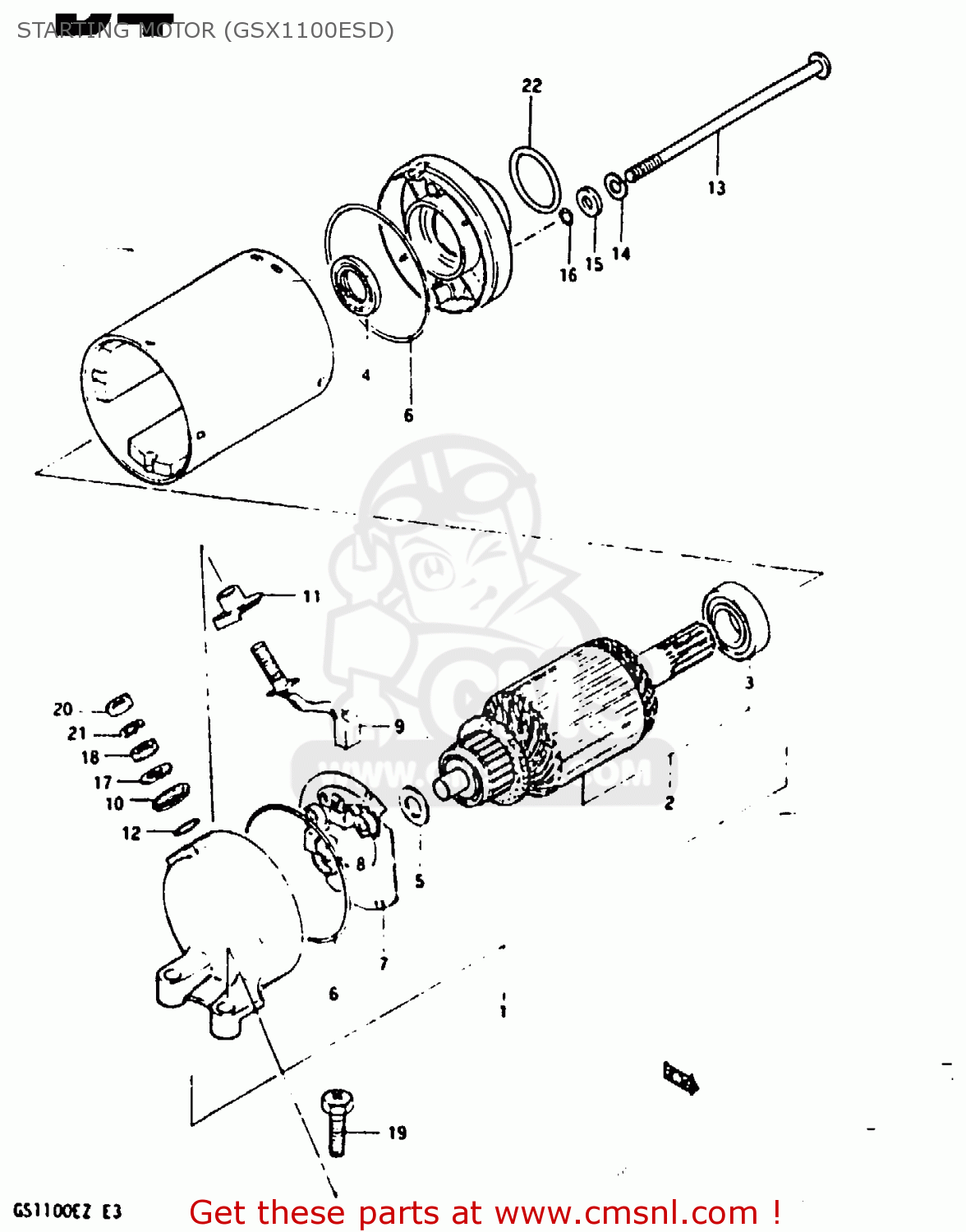

Starting motor (gsx1100esd) diagram GSX1100X 1983 (D)

STARTING MOTOR (GSX1100ESD) GSX1100X 1983 (D)
STARTING MOTOR (GSX1100ESD) GSX1100X 1983 (D)
STARTING MOTOR (GSX1100ESD) GSX1100X 1983 (D)
prices are in EUR
ref
part #
description
quantity
1
3110049500
ref: 1
MOTOR ASSEMBLY,STARTING
€ 704.50
2
3131049500
ref: 2
ARMATURE
€ 76.00
3
3115545010
ref: 3
BEARING
€ 21.00
4
3115349210
ref: 4
SEAL,OIL
3115349210
€ 15.00
5
3136147010
ref: 5
SHIM,ARMATURE
€ 3.50
6
3126444110
ref: 6
O RING
3126444110
€ 8.00
7
3113244110
ref: 7
HOLDER,BRUSH
€ 47.00
8
3113565010
ref: 8
SPRING
3113565010
€ 3.00
9
3113038300
ref: 9
BRUSH SUB ASSY,STARTING MOTOR
3113038300
€ 12.50
10
3117238300
ref: 10
BUSHING
3117238300
€ 4.00
11
3117138300
ref: 11
BUSH,B
3117138300
€ 5.50
12
3114338300
ref: 12
O RING
3114338300
€ 3.50
13
3128105300
ref: 13
BOLT
€ 8.50
14
0832121058
ref: 14
LOCK WASHER
0832121058
€ 2.00
15
3116138300
ref: 15
WASHER
3116138300
€ 2.50
16
3115638300
ref: 16
O RING
3115638300
€ 3.00
17
0832221068
ref: 17
WASHER
0832221068
€ 2.00
18
0831022068
ref: 18
NUT 6MM
€ 2.50
19
0912806024
ref: 19
SCREW (6X25)
0912806024
€ 2.50
20
0831022068
ref: 20
NUT 6MM
€ 2.50
21
0832121068
ref: 21
LOCK WASHER
0832121068
€ 2.50
22
0928024003
ref: 22
O RING(D:3,ID:24.5)
0928024003
€ 2.00
