FOOTREST (MODEL D)
GSX1100X 1983 (D)

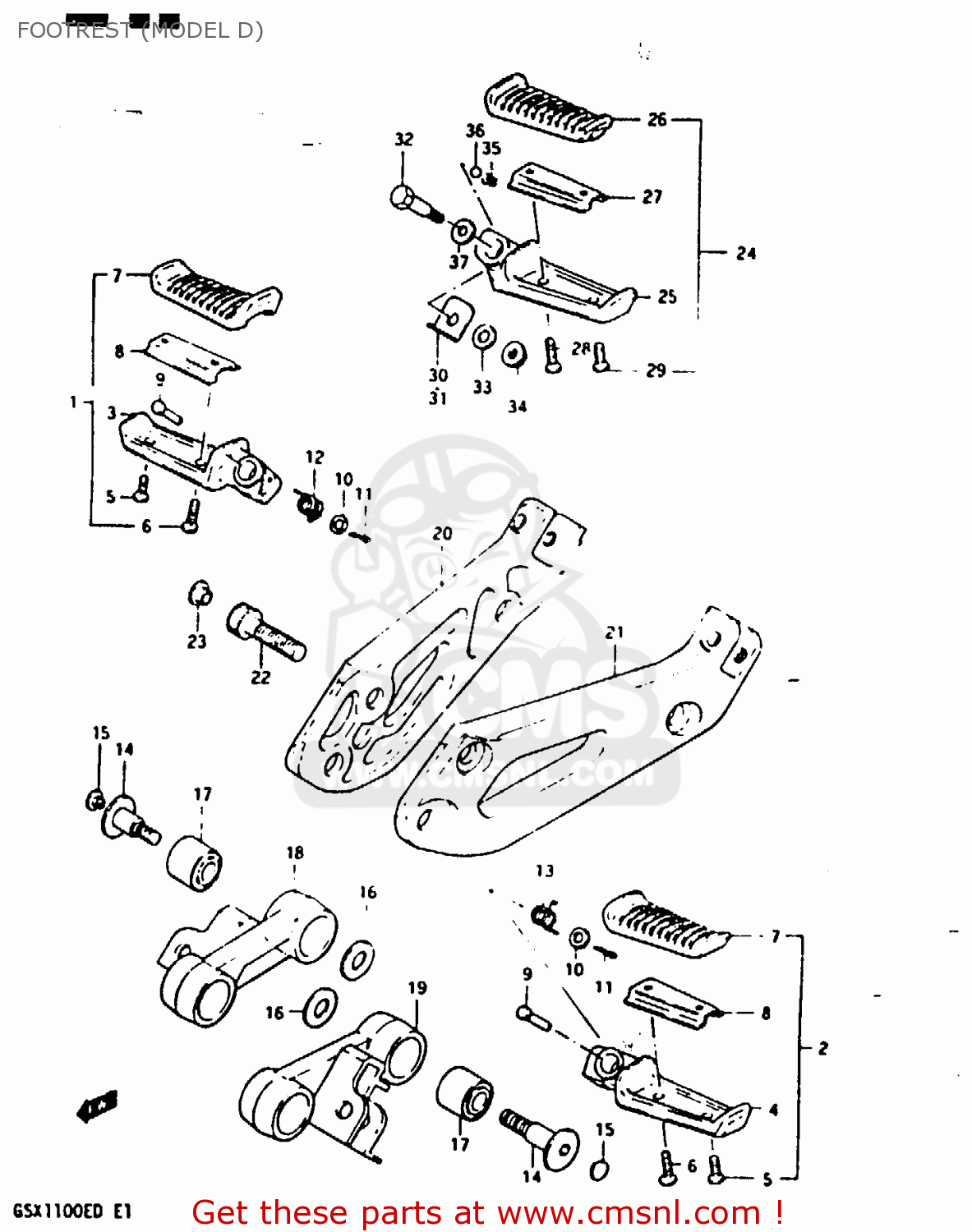

Footrest (model d) diagram GSX1100X 1983 (D)
FOOTREST (MODEL D) GSX1100X 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1
4350133300
ref: 1
FOOTREST ASSEMBLY,FRONT,RIGHT
€ 64.00
2
4350233300
ref: 2
FOOTREST ASSEMBLY,FRONT,LEFT
€ 57.50
3
4351033300
ref: 3
BAR,FRONT FOOTREST
€ 64.00
4
4352033300
ref: 4
BAR,FRONT FOOTREST,LEFT
€ 57.50
5
0211205128
ref: 5
SCREW
€ 2.50
6
0211205168
ref: 6
SCREW
€ 2.50
7
4355133300
ref: 7
RUBBER,FR FOOTREST
€ 9.00
8
4358033300
ref: 8
PLATE,FRONT FOOTREST RUBBER
€ 4.50
9
0920008040
ref: 9
PIN
€ 3.00
10
0832211088
ref: 10
WASHER
€ 2.00
11
0411120208
ref: 11
PIN 20X20
€ 1.50
12
0944814029
ref: 12
SPRING
€ 0.00
13
0944814028
ref: 13
SPRING
€ 3.50
14
0910610010
ref: 14
BOLT(10X50)
€ 44.00
15
4357534500
ref: 15
CAP
€ 1.50
16
0916010058
ref: 16
WASHER
€ 2.00
17
0931910008
ref: 17
BUSH
€ 8.00
18
4353149520
ref: 18
HOLDER,FRONT FOOTREST,RIGHT
€ 63.00
19
4354149520
ref: 19
HOLDER,FRONT FOOTREST,LEFT
€ 51.50
20
4381149510
ref: 20
BRACKET,MUFFLER,RIGHT
€ 97.00
21
4382149510
ref: 21
BRACKET,MUFFLER,LEFT
€ 97.00
22
0910610006
ref: 22
BOLT
€ 4.50
23
4357534500
ref: 23
CAP
€ 1.50
24-1
4360045501
ref: 24-1
FOOTREST ASSY,PILLION,R
€ 41.50
24-2
4370045501
ref: 24-2
FOOTREST ASSY,PILLION,L
€ 56.50
25-1
4361045501
ref: 25-1
BAR,PILLION FOOTREST,RIGHT
€ 17.00
25-2
4371045501
ref: 25-2
BAR,PILLION FOOTREST,LEFT
€ 16.00
26
4361245500
ref: 26
RUBBER,PILLION FOOTREST
€ 10.00
27
4363245500
ref: 27
PLATE,RUBBER STOP
€ 2.50
28
0213205127
ref: 28
SCREW 5X12
€ 2.50
29
0213205168
ref: 29
SCREW
€ 2.00
30
4363533300
ref: 30
PLATE,PILLION FOOTREST SPRG,R
€ 3.50
31
4373533300
ref: 31
PLATE,SPRING STOP,LEFT
€ 3.00
32
0911106035
ref: 32
BOLT
€ 4.50
33
0832211088
ref: 33
WASHER
€ 2.00
34
0831931068
ref: 34
NUT
€ 2.50
35
0944005003
ref: 35
SPRING
€ 1.50
36
0611107004
ref: 36
BALL
€ 1.50
37
0918108004
ref: 37
SHIM(8.2X22X0.2)
€ 2.50
