FRONT WHEEL (GSX1100ED/EXD/ESD)

GSX1100X 1983 (D)

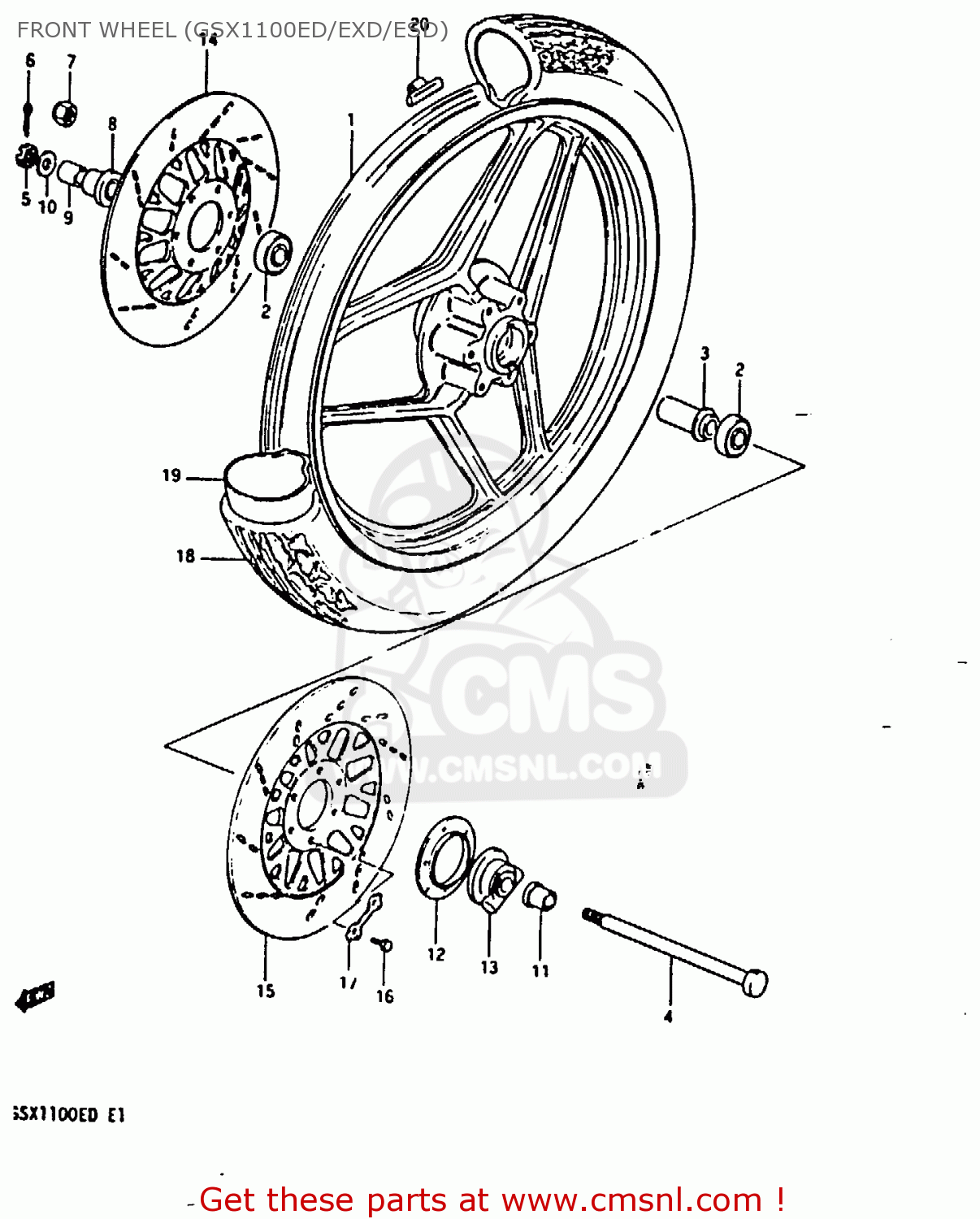

Front wheel (gsx1100ed/exd/esd) diagram GSX1100X 1983 (D)

FRONT WHEEL (GSX1100ED/EXD/ESD) GSX1100X 1983 (D)

FRONT WHEEL (GSX1100ED/EXD/ESD) GSX1100X 1983 (D)

prices are in EUR

ref

part #

description

quantity

1

5411149500291
ref: 1
BLACK

CASTING WHEEL,FRONT 1.85

€ 490.50

2

0812363027
ref: 2

BEARING

€ 19.00

3

5473018400
ref: 3

SPACER,FR HUB BEARING

€ 13.00

4

5471149000
ref: 4

AXLE,FR

€ 79.50

5

0831431128
ref: 5

NUT 12MM

€ 2.00

6

0411130308
ref: 6

COTTER PIN

€ 1.50

7

NOTUSED
ref: 7

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

8

5474018402
ref: 8

SPACER,FR AXLE,R

€ 18.50

9

5474149300
ref: 9

SPACER,FR AXLE,R

€ 19.00

10

0832221128
ref: 10

WASHER

€ 2.00

11

5474149000
ref: 11

SPACER,FR AXLE,L

€ 16.50

12

5487145010
ref: 12

DUST SEAL,SPEEDOMETER GEAR BOX

€ 21.00

13

5460018401
ref: 13

BOX ASSEMBLY,SPEEDOMETER GEAR

€ 90.50

14

5921145250
ref: 14

DISC,FR BRAKE,R

€ 149.00

15

5922145250
ref: 15

DISC,FR BRAKE,L

€ 149.00

16

0910008140
ref: 16

BOLT(8X25)

€ 2.00

17

0916908016
ref: 17

WASHER

€ 3.50

18

5510049515
ref: 18
IRC

TIRE, FRONT (3.50V19)

€ 319.00

19

5520015010
ref: 19

TUBE,INNER

€ 41.00

20-1

5541149300
ref: 20-1

BALANCER,WHEEL

€ 7.00

20-2

5541249300
ref: 20-2

BALANCER,WHEEL (30G)

€ 4.00
