CYLINDER HEAD COVER (MODEL D)

GSX1100X 1983 (D)

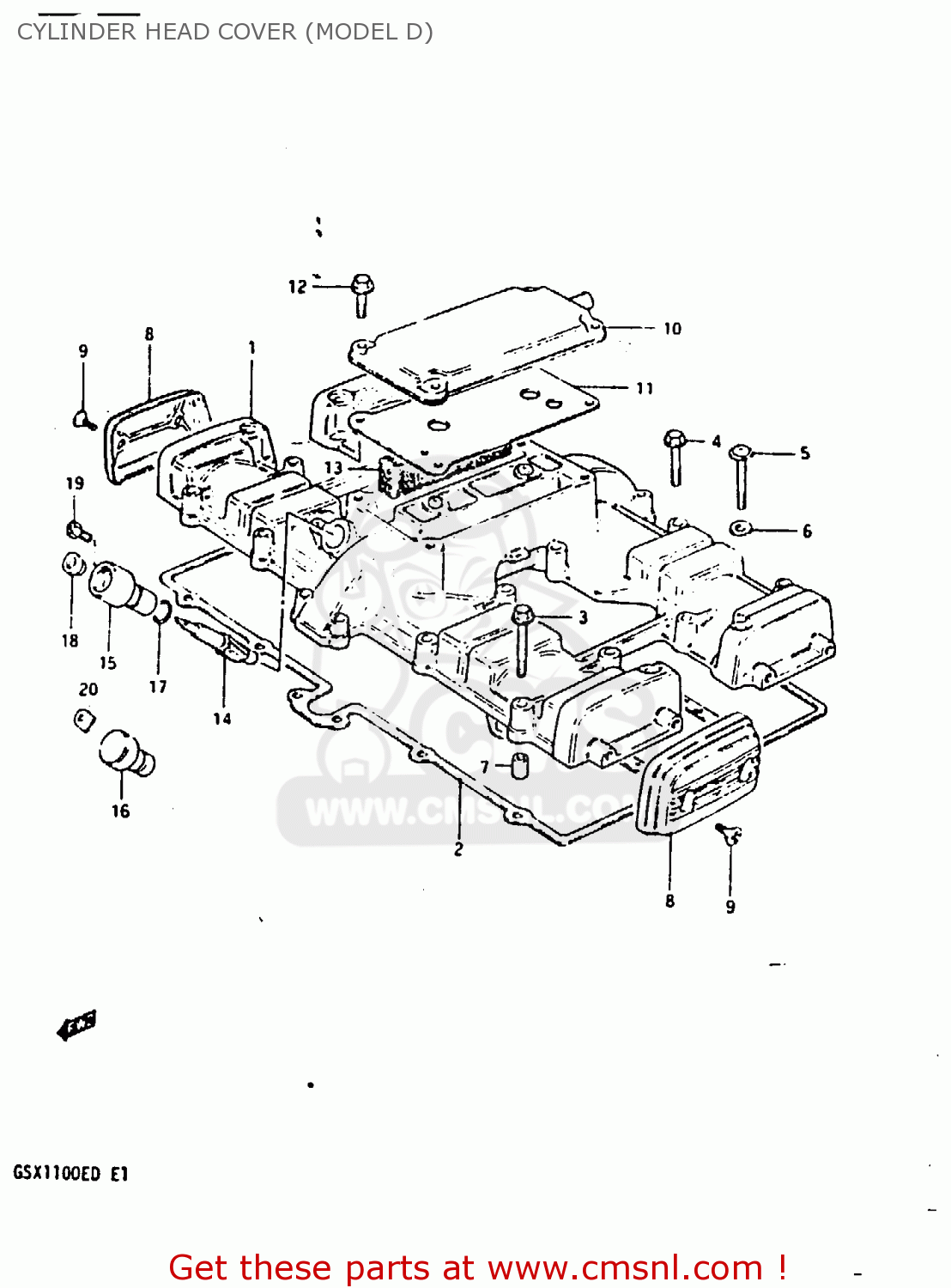

Cylinder head cover (model d) diagram GSX1100X 1983 (D)

CYLINDER HEAD COVER (MODEL D) GSX1100X 1983 (D)

CYLINDER HEAD COVER (MODEL D) GSX1100X 1983 (D)

prices are in EUR

ref

part #

description

quantity

1

1117145440
ref: 1

COVER,CYLINDER HEAD

€ 213.00

2

1117349221
ref: 2

GASKET,CYLINDER HEAD COVER

€ 47.00

3

0151706405
ref: 3

BOLT (6X40)

€ 2.00

4

0151706355
ref: 4

BOLT

€ 2.50

5

0215206405
ref: 5

SCREW 6X40

€ 2.00

6

0916806009
ref: 6

GASKET (NAS)

€ 2.00

7

0920608001
ref: 7

PIN(6.2X8X11)

€ 2.00

8

1117449221
ref: 8

CAP,CYLINDER HEAD COVER

€ 23.00

9

0912705015
ref: 9

SCREW(5X12)

€ 2.00

10

1117645411
ref: 10

COVER,BREATHER

€ 24.50

11

1117749210
ref: 11

GASKET (MCA)

€ 40.00

12

0151706205
ref: 12

BOLT

€ 2.50

13

1118649200
ref: 13

COVER,BREATHER

€ 16.50

14

2643149200
ref: 14
GSX1100D/ED/XD/EXD

GEAR,TACHOMETER DRIVEN

€ 40.00

15

2644149000
ref: 15
GSX1100D/ED/XD/EXD

SLEEVE,TACHOMETER DRIVE GEAR

€ 18.00

16

2644245000
ref: 16
GSX1100ESD

PLUG,TACH GEAR SLEEVE HOLE

€ 15.50

17

2645145000A
ref: 17

SEAL,TACHOMETER DRIVEN

€ 4.50

18

0928905002
ref: 18
GSX1100D/ED/XD/EXD

SEAL,OIL(5X12X8)

€ 11.00

19

0912805101
ref: 19

SCREW(5X12)

€ 1.50

20

2644933000
ref: 20
GSX1100ESD

PLATE,TACH DRIVE GEAR SLEEVE

€ 3.50
