CRANKSHAFT
GSX1100X 1983 (D)

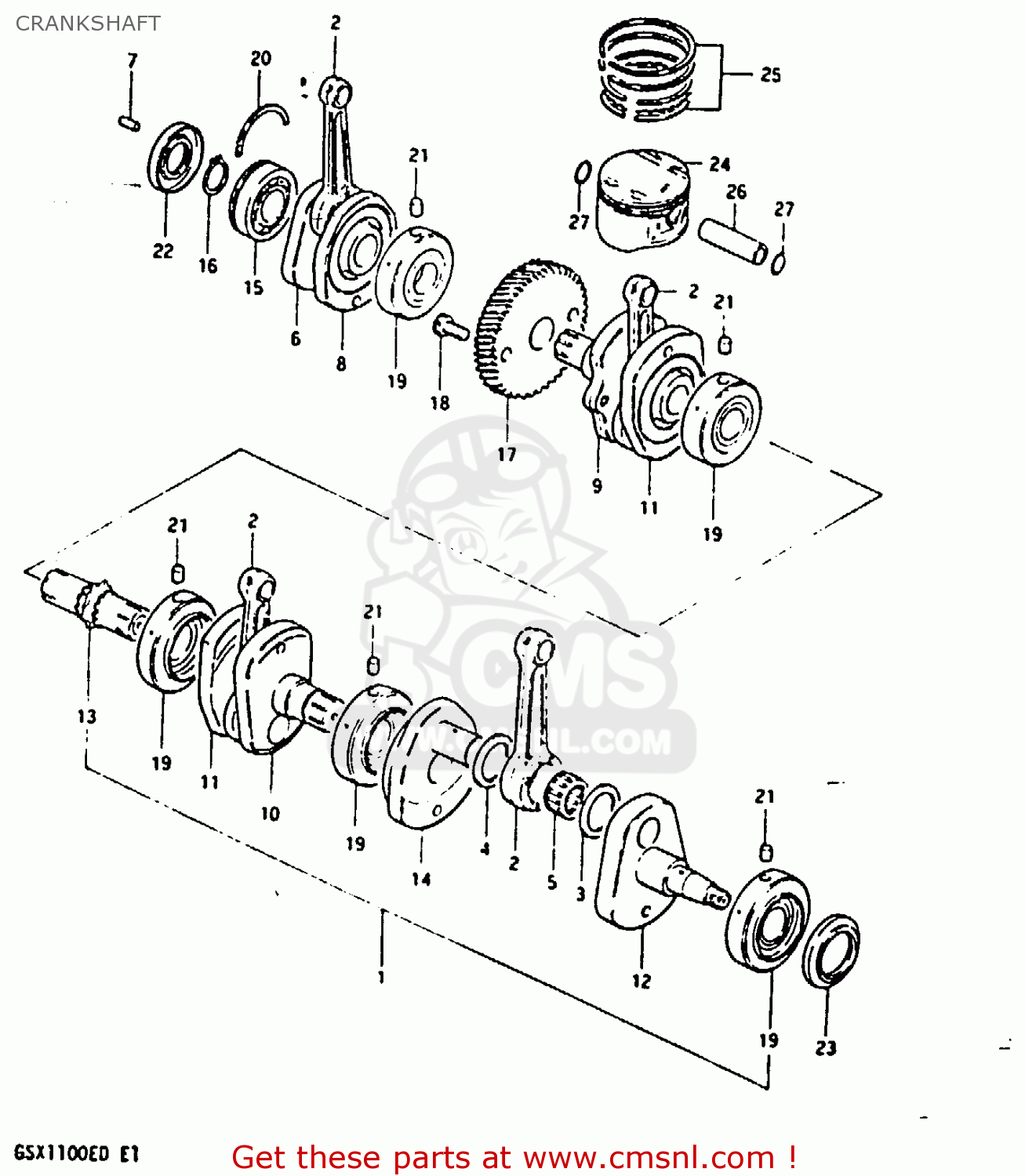

Crankshaft diagram GSX1100X 1983 (D)
CRANKSHAFT GSX1100X 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1-1
1220049303
ref: 1-1
MODEL Z
CRANKSHAFT ASSEMBLY
€ 3,492.00
1-2
1220049603
ref: 1-2
MODEL D
CRANKSHAFT ASSEMBLY
€ 2,629.50
2
1216149201
ref: 2
CONNECTING ROD
€ 184.50
3
0916031002
ref: 3
WASHER(31X48.5X1)
€ 7.00
4
0916031003
ref: 4
WASHER(31X48.5X2)
€ 11.50
5
0926331004
ref: 5
BEARING(31X39X21)
€ 53.00
6
1222049202
ref: 6
CRANKSHAFT,RIGHT
€ 153.00
7
0422104089
ref: 7
PIN
€ 1.50
8
1223049201
ref: 8
WEB,CRANK
€ 218.00
9
1224149202
ref: 9
CRANKSHAFT
€ 153.00
10
1227149202
ref: 10
CRANKSHAFT,MIDDLE,LEFT
€ 89.50
11
1225049201
ref: 11
WEB,CRANK,MIDDLE
€ 153.00
12-1
1226149302
ref: 12-1
MODEL Z
CRANKSHAFT,LEFT
€ 216.00
12-2
1226149601
ref: 12-2
MODEL D
CRANKSHAFT,LH
€ 211.50
13
1228149200
ref: 13
SHAFT,TIMING CHAIN DRIVE
€ 93.50
14
1229049201
ref: 14
WEB,CRANK,LEFT
€ 228.50
15
0926230033
ref: 15
BEARING(30X72X19)
€ 47.00
16
0833111308
ref: 16
CIRCLIP,30MM
€ 3.00
17
2111149002
ref: 17
GEAR,PRIMARY DRIVE
€ 56.50
18
0910608006
ref: 18
BOLT
€ 3.00
19
0926432005
ref: 19
BEARING
€ 138.00
20
0939072004
ref: 20
C RING
€ 3.00
21
0422107129
ref: 21
PIN
€ 1.50
22
0928330021
ref: 22
SEAL,OIL(30X72X11)
€ 22.00
23
0928948002
ref: 23
SEAL,OIL(47.3X60X6.5)
€ 12.00
24-1
1211149203
ref: 24-1
MODEL Z
PISTON (72.00MM)
€ 1,114.50
24-2
1211149221
ref: 24-2
MODEL D
PISTON (72.00MM)
€ 1,114.50
24-3
1211149203050
ref: 24-3
OPT, MODEL Z
PISTON
€ 640.00
24-4
1211149221050
ref: 24-4
OPT, MODEL D
PISTON
€ 640.00
24-5
1211149203100
ref: 24-5
OPT, MODEL Z
PISTON
€ 104.00
24-6
1211149221100
ref: 24-6
OPT, MODEL D
PISTON (73.00MM)
€ 104.00
25-1
1214049220
ref: 25-1
RING SET,PISTON
€ 67.00
25-2
1214049220050
ref: 25-2
OPT
RING SET,PISTON (OS:0.5)
€ 59.00
25-3
1214049220100
ref: 25-3
OPT
RING SET,PISTON (OS:1.0)
€ 38.50
26
1215115500
ref: 26
PIN,PISTON
€ 15.00
27
0938118002A
ref: 27
CIRCLIP,PISTON PIN
€ 1.50
