OIL PUMP - OIL FILTER

GSX1100X 1983 (D)

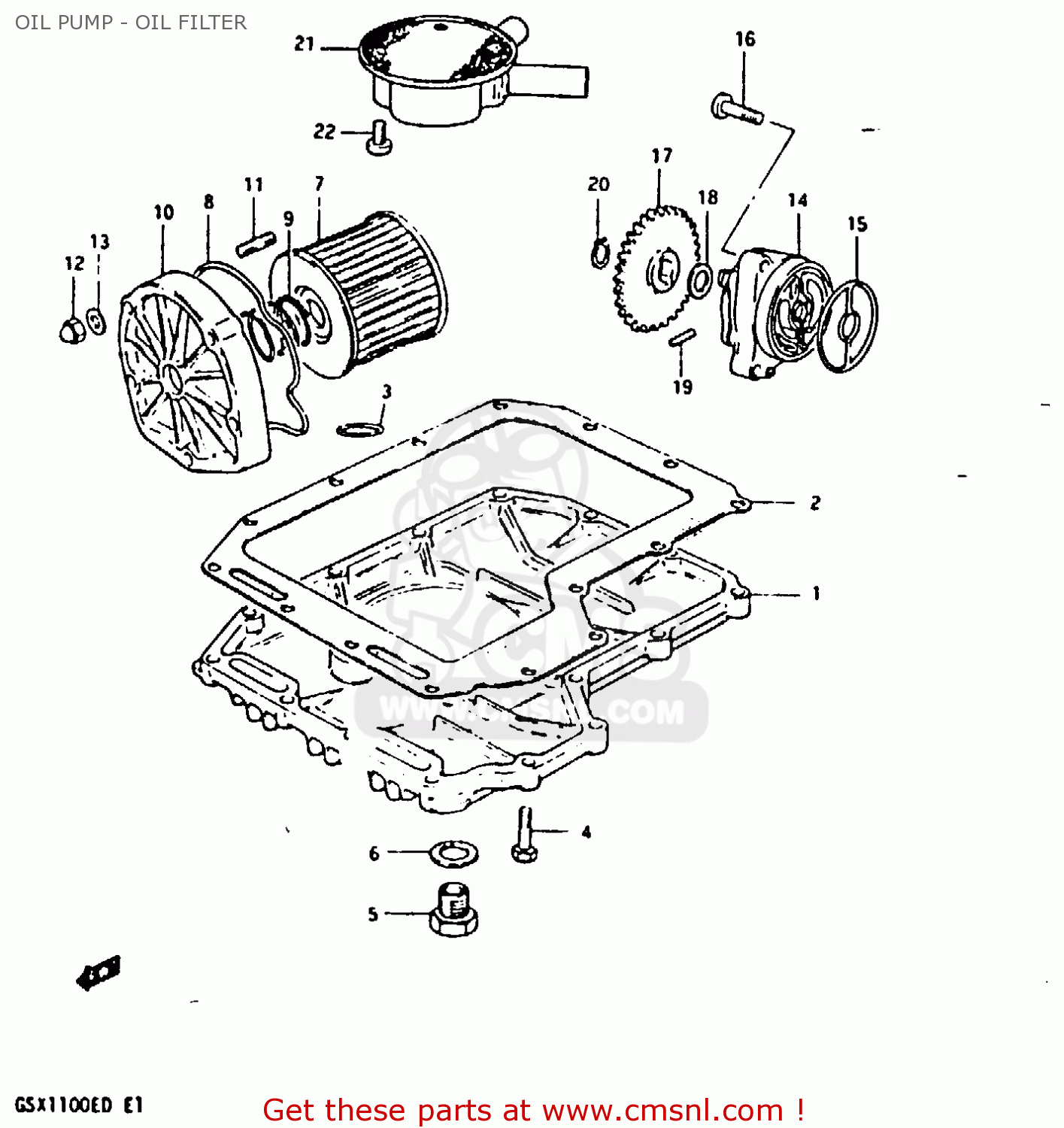

Oil pump - oil filter diagram GSX1100X 1983 (D)

OIL PUMP - OIL FILTER GSX1100X 1983 (D)

OIL PUMP - OIL FILTER GSX1100X 1983 (D)

prices are in EUR

ref

part #

description

quantity

1-1

1151149200
ref: 1-1
MODEL Z

PAN,OIL

€ 255.50

1-2

1151149220
ref: 1-2
MODEL D

PAN,OIL

€ 255.50

2

1148949200
ref: 2

GASKET,OIL PAN (MCA)

€ 13.00

3

0928013001
ref: 3

O RING(D:3.2,ID:12.9)

€ 4.00

4-1

0151706258
ref: 4-1
MODEL Z

BOLT

€ 2.50

4-2

0151706255
ref: 4-2
MODEL D

BOLT

€ 2.50

5

0924714001
ref: 5

PLUG

€ 5.00

6

0916814004
ref: 6

GASKET(14X19.2X2) (NAS)

€ 2.50

7

1651045040
ref: 7

FILTER ASSY,ENGINE OIL

€ 7.50

8

1651849200
ref: 8

O RING,OIL FILTER CHAMBER CAP

€ 8.50

9

0944032004
ref: 9

SPRING

€ 13.50

10-1

1653149210
ref: 10-1
MODEL Z

CAP,ENG OIL FLTR OUTER CHAMBER

€ 41.00

10-2

1653149220
ref: 10-2
MODEL D

CAP,ENGINE OIL FILTER

€ 35.50

11

0142106258
ref: 11

STUD 6X25

€ 2.50

12-1

0831311068
ref: 12-1
MODEL Z

NUT

€ 2.00

12-2

0831311065
ref: 12-2
MODEL D

NUT 6MM

€ 2.00

13-1

0832221068
ref: 13-1
MODEL Z

WASHER

€ 2.00

13-1

0832221065
ref: 13-1
MODEL D

WASHER

€ 2.00

14

1640049220
ref: 14

PUMP ASSY,ENGINE OIL

€ 155.00

15

1649149200
ref: 15

O-RING,OIL PUMP

€ 12.50

16

0910306045
ref: 16

BOLT(6X32)

€ 3.00

17

1633149000
ref: 17

GEAR,ENG OIL PUMP DRIVEN(NT:33

€ 84.50

18

0822110185
ref: 18

SHIM

€ 2.00

19

0926104009
ref: 19

PIN(4X15.8)

€ 1.50

20

0833131109
ref: 20

CIRCLIP

€ 2.00

21

1652049200
ref: 21

STRAINER,ENGINE OIL

€ 58.50

22

0211206128
ref: 22

SCREW 6X12

€ 2.00
