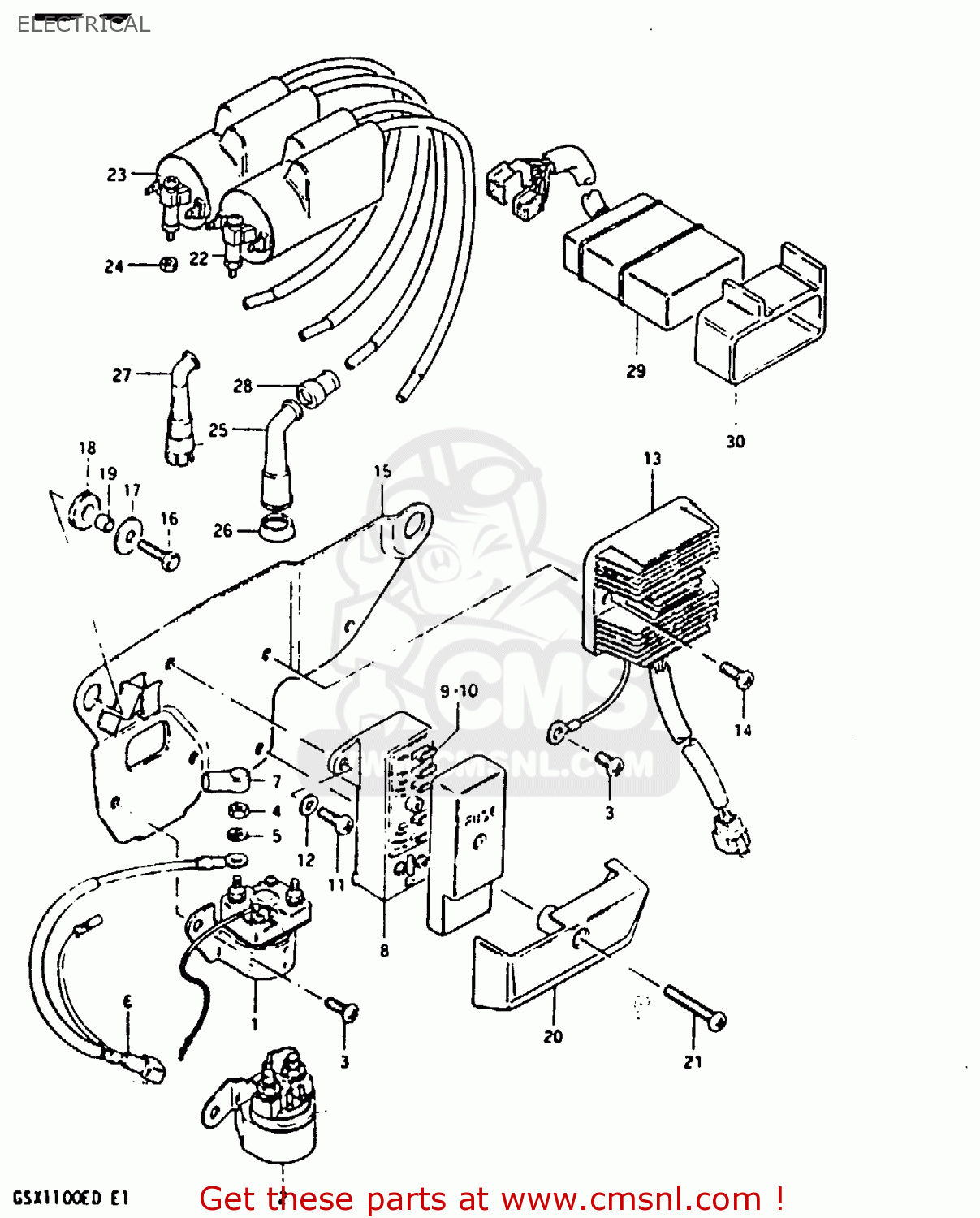

Electrical diagram GSX1100X 1983 (D)

ELECTRICAL GSX1100X 1983 (D)

ELECTRICAL GSX1100X 1983 (D)

prices are in EUR

ref

part #

description

quantity

1

3180037020
ref: 1

RELAY ASSY,STARTING MOTOR

€ 105.00

2

3180033400
ref: 2
GSX1100ESD

RELAY ASSEMBLY,STARTING MOTOR

€ 89.00

3

0211206108
ref: 3

SCREW

€ 1.50

4

0831022068
ref: 4

NUT 6MM

€ 2.50

5

0832121068
ref: 5

LOCK WASHER

€ 2.50

6-1

3385044110
ref: 6-1
MODEL Z

CORD,BATTERY MINUS

€ 8.50

6-2

3385049002
ref: 6-2
MODEL D

WIRE,STARTER MOTOR LEAD

€ 8.50

7

3186135100
ref: 7

CAP,STARTER RELAY

€ 4.50

8

3674049400
ref: 8

BOX ASSEMBLY,FUSE

€ 69.50

9

0948110101
ref: 9

FUSE(10A)

€ 2.50

10

0948115101
ref: 10

FUSE(15A)

€ 1.50

11

0211206168
ref: 11

SCREW

€ 2.50

12

0832221068
ref: 12

WASHER

€ 2.00

13

3280049430
ref: 13

RECTIFIER ASSEMBLY

€ 380.50

14

0211206128
ref: 14

SCREW 6X12

€ 2.00

15-1

4741049310
ref: 15-1

HOLDER COMP,ELECTRONIC PARTS

€ 10.00

15-2

NOTUSED
ref: 15-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

16

0110706168
ref: 16

BOLT, UPPER

€ 3.00

17

0916006063
ref: 17

WASHER (6.5X22X1.6)

€ 2.00

18

0932008013
ref: 18

CUSHION

€ 4.00

19

0918007005
ref: 19

SPACER (7X9X7)

€ 2.50

20

4741949301
ref: 20

COVER,ELECTRIC PARTS HOLDER

€ 5.50

21

0211206358
ref: 21

SCREW (6X35)

€ 2.50

22

3341049210
ref: 22

COIL ASSEMBLY,IGNITION

€ 182.00

23

3342049210
ref: 23

COIL ASSEMBLY,IGNITION

€ 182.00

24

0831011068
ref: 24

NUT

€ 2.50

25

3351045010
ref: 25

CAP ASSY,SPARK PLUG

€ 23.00

26

3354132410
ref: 26

SEAL,SPARK PLUG

€ 7.00

27

NOTUSED
ref: 27

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

28

3354298000
ref: 28

SEAL,SPARK PLU

€ 4.50

29

3886049500
ref: 29

RELAY,LAMP OUTAGE WARNING

€ 115.00

30

3886149500
ref: 30

STAY,LAMP OUTAGE INDICATOR

€ 7.00
