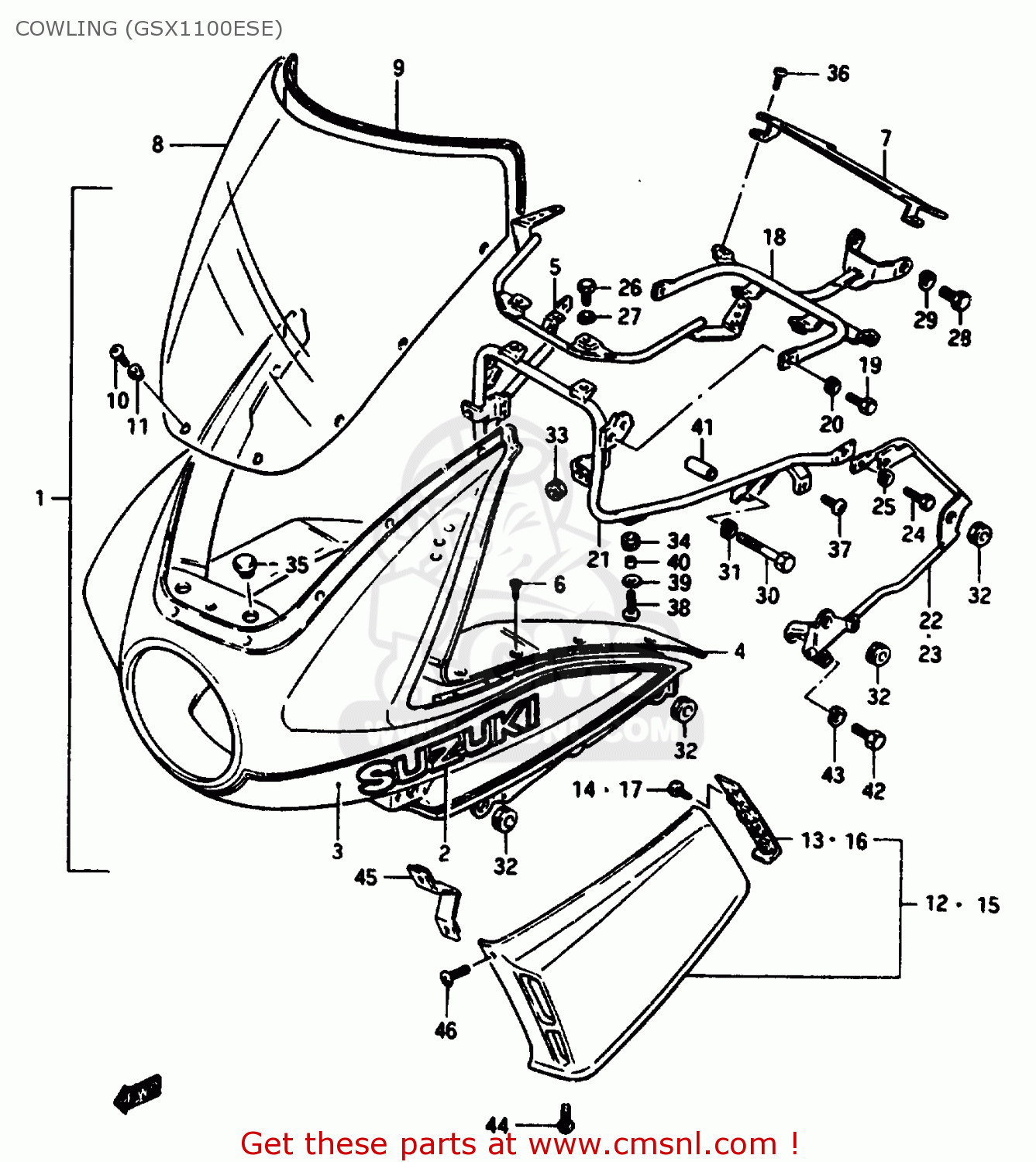

COWLING (GSX1100ESE)

ref

part #

description

quantity

1-1

9440000A0187P
ref: 1-1
SEE NOTE

COWLING ASSY (WHITE/RED)

€ 1,245.00

1-2

9440000A017DP
ref: 1-2
SEE NOTE

COWLING ASSY

€ 1,245.00

2-1

6811100A1060D
ref: 2-1
FOR 87P

EMBLEM

€ 22.00

2-2

6811100A1071L
ref: 2-2
FOR 70P

EMBLEM

€ 18.50

3-1

6819000A107EE
ref: 3-1
FOR 87P

TAPE SET

€ 0.00

3-2

6819000A107EF
ref: 3-2
FOR 70P

TAPE SET

€ 0.00

4

9442000A00
ref: 4

PANEL,COWLING

€ 75.00

5

9456000A00
ref: 5

BRACE,COWLING BODY

€ 35.00

6

0323104104
ref: 6

SCREW, PANEL

€ 2.00

7

9442600A00
ref: 7

COVER,METER,REAR

€ 26.00

8-1

9461100A00
ref: 8-1

WINDOW,COWLING

€ 464.50

8-2

9461100A20
ref: 8-2
E17

SCREEN

€ 393.50

9-1

9463100A00
ref: 9-1

MOLDING COWLING

€ 18.00

9-2

9463100A10
ref: 9-2
E17

MOLDING

€ 14.00

10

0913905023
ref: 10

SCREW(5X20)

€ 2.00

11

0932005008
ref: 11

CUSHION

€ 5.00

12-1

9443000A0116D
ref: 12-1
FOR 87P, SEE NOTE

COVER, RH (WHITE)

€ 166.50

12-2

9443000A0121J
ref: 12-2
FOR 70P, SEE NOTE

COVER,COWLING

€ 166.50

13

9443200A00
ref: 13

PANEL,COWL SIDE COVER RR RH

€ 8.00

14

0354104126
ref: 14

SCREW

€ 1.50

15-1

9444000A0116D
ref: 15-1
FOR 8P, SEE NOTE

COVER, LH (WHITE)

€ 120.50

15-2

9444000A0121J
ref: 15-2
FOR 70P, SEE NOTE

COVER, LH (SILVER)

€ 120.50

16

9444200A00
ref: 16

PANEL,COWLING SIDE COVER

€ 7.50

17

0354104126
ref: 17

SCREW

€ 1.50

18

9451000A00
ref: 18

BRACE,COWLING,FRONT

€ 45.00

19

0110706205
ref: 19

BOLT

€ 2.00

20

0832121065
ref: 20

LOCK WASHER

€ 2.00

21

9452000A00
ref: 21

BRACE,COWL RR

€ 118.00

22

9453000A00
ref: 22

BRACE,COWLING SIDE,RIGHT

€ 27.50

23

9454000A00
ref: 23

BRACE,COWLING SIDE,LEFT

€ 27.50

24

0110706165
ref: 24

BOLT 6X16

€ 2.00

25

0832121065
ref: 25

LOCK WASHER

€ 2.00

26

0110706205
ref: 26

BOLT

€ 2.00

27

0832121065
ref: 27

LOCK WASHER

€ 2.00

28

0110708165
ref: 28

BOLT

€ 2.00

29

0832121085
ref: 29

LOCK WASHER

€ 2.50

30

0110708505
ref: 30

BOLT

€ 3.00

31

0832121085
ref: 31

LOCK WASHER

€ 2.50

32

0932008018
ref: 32

CUSHION

€ 4.00

33

0932008013
ref: 33

CUSHION

€ 4.00

34

0932009016
ref: 34

CUSHION

€ 2.50

35

0925018003
ref: 35

PLUG(OD:22)

€ 2.00

36

0214205105
ref: 36

SCREW

€ 2.50

37

0214206125
ref: 37

SCREW 6X12

€ 2.00

38

0214206205
ref: 38

SCREW, CENTER

€ 2.00

39

0916006056
ref: 39

WASHER(6.5X18X1)

€ 2.00

40

0918006011
ref: 40

SPACER (6.1X9X9)

€ 2.00

41

0918008091
ref: 41

SPACER (8.6X13.8X35)

€ 3.00

42

0711008165
ref: 42

BOLT

€ 3.00

43

0832121085
ref: 43

LOCK WASHER

€ 2.50

44

0913905029
ref: 44

SCREW

€ 1.50

45

9455000A00
ref: 45

BRACE,SIDE,FRONT

€ 4.00

46

0214206167
ref: 46

SCREW

€ 2.00

all assemblies
