HEADLAMP HOUSING - FRONT FENDER (GSX1100EE/EF/EG)

GSX1150ES 1985 (F) (E06)

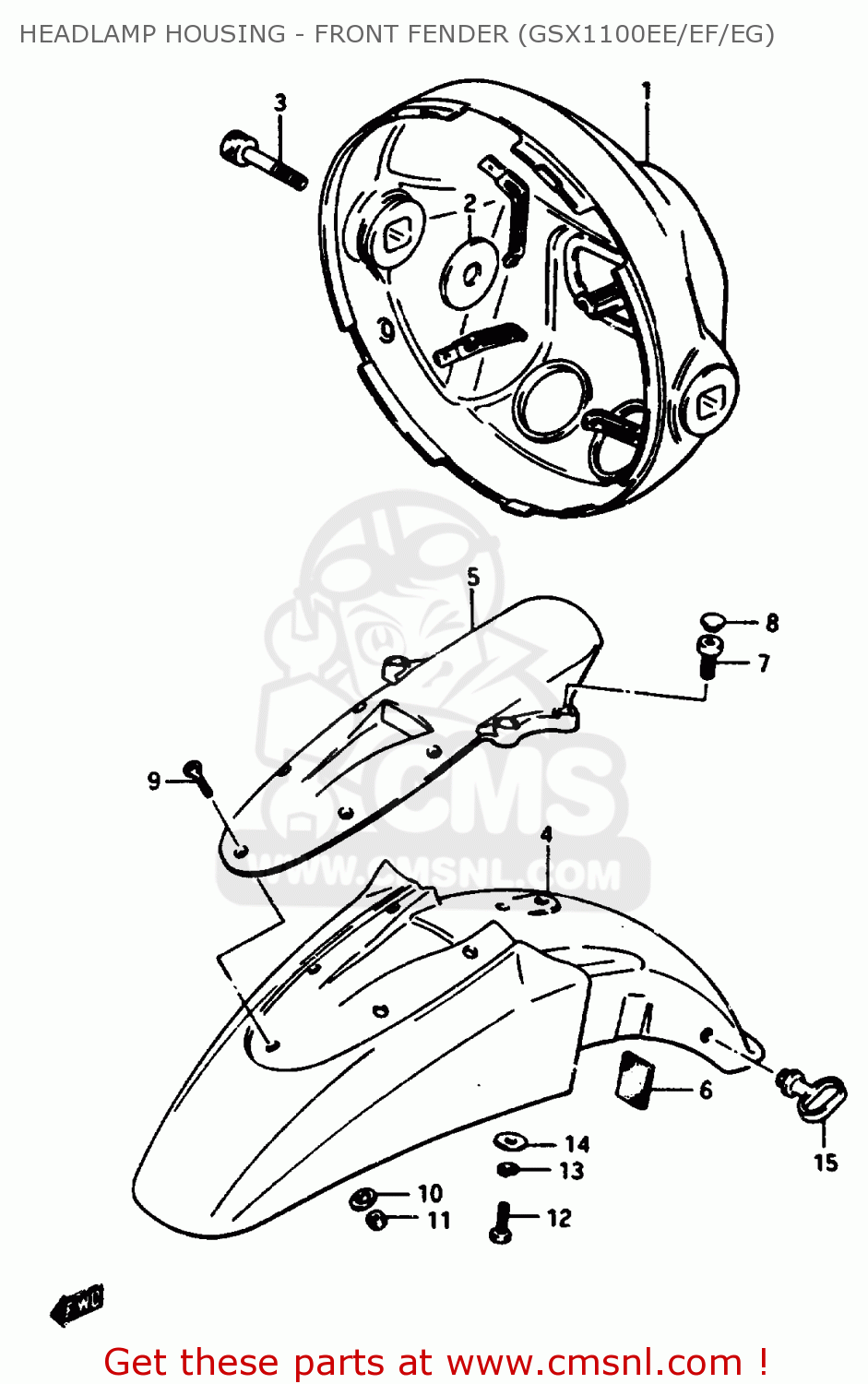

Headlamp housing - front fender (gsx1100ee/ef/eg) diagram GSX1150ES 1985 (F) (E06)

HEADLAMP HOUSING - FRONT FENDER (GSX1100EE/EF/EG) GSX1150ES 1985 (F) (E06)

HEADLAMP HOUSING - FRONT FENDER (GSX1100EE/EF/EG) GSX1150ES 1985 (F) (E06)

prices are in EUR

ref

part #

description

quantity

1

5181045900019
ref: 1

HOUSING,HEADLAMP(BLACK)

€ 139.00

2

0916008002
ref: 2

WASHER (8.5X29X1.6)

€ 2.00

3

0711008307
ref: 3

BOLT, LH

€ 4.50

4-1

5311100A0017R
ref: 4-1
MODEL E

FENDER,FRONT

€ 55.00

4-2

5311100A00019
ref: 4-2
MODEL F/G

FENDER,FRONT

€ 55.00

4-3

5311100A0012F
ref: 4-3
MODEL F

FENDER,FRONT

€ 55.00

4-4

5311100A0022R
ref: 4-4
MODEL G

FENDER,FRONT

€ 55.00

4-5

5311100A20019
ref: 4-5
MODEL G E22

FENDER,FRONT

€ 55.00

4-6

5311100A2022R
ref: 4-6
MODEL G E22

FENDER,FRONT

€ 55.00

5

5311400A00
ref: 5

BRACE,FR FENDER CTR

€ 87.00

6

5343100A00
ref: 6

CUSHION

€ 4.00

7

0711008165
ref: 7

BOLT

€ 3.00

8

0925006004
ref: 8

CAP(OD:14.5)

€ 1.50

9

0213205164
ref: 9

SCREW, CENTER

€ 2.00

10

0916905011
ref: 10

WASHER

€ 2.00

11

0831921055
ref: 11

NUT 8MM

€ 1.50

12

0110706168
ref: 12

BOLT, UPPER

€ 3.00

13

0832121068
ref: 13

LOCK WASHER

€ 2.50

14

0916006007
ref: 14

WASHER

€ 2.00

15

5862121203A
ref: 15

GUIDE,CABLE

€ 7.50
