HEADLAMP (GSX1100EE/EF/EG)

GSX1150ES 1985 (F) (E06)

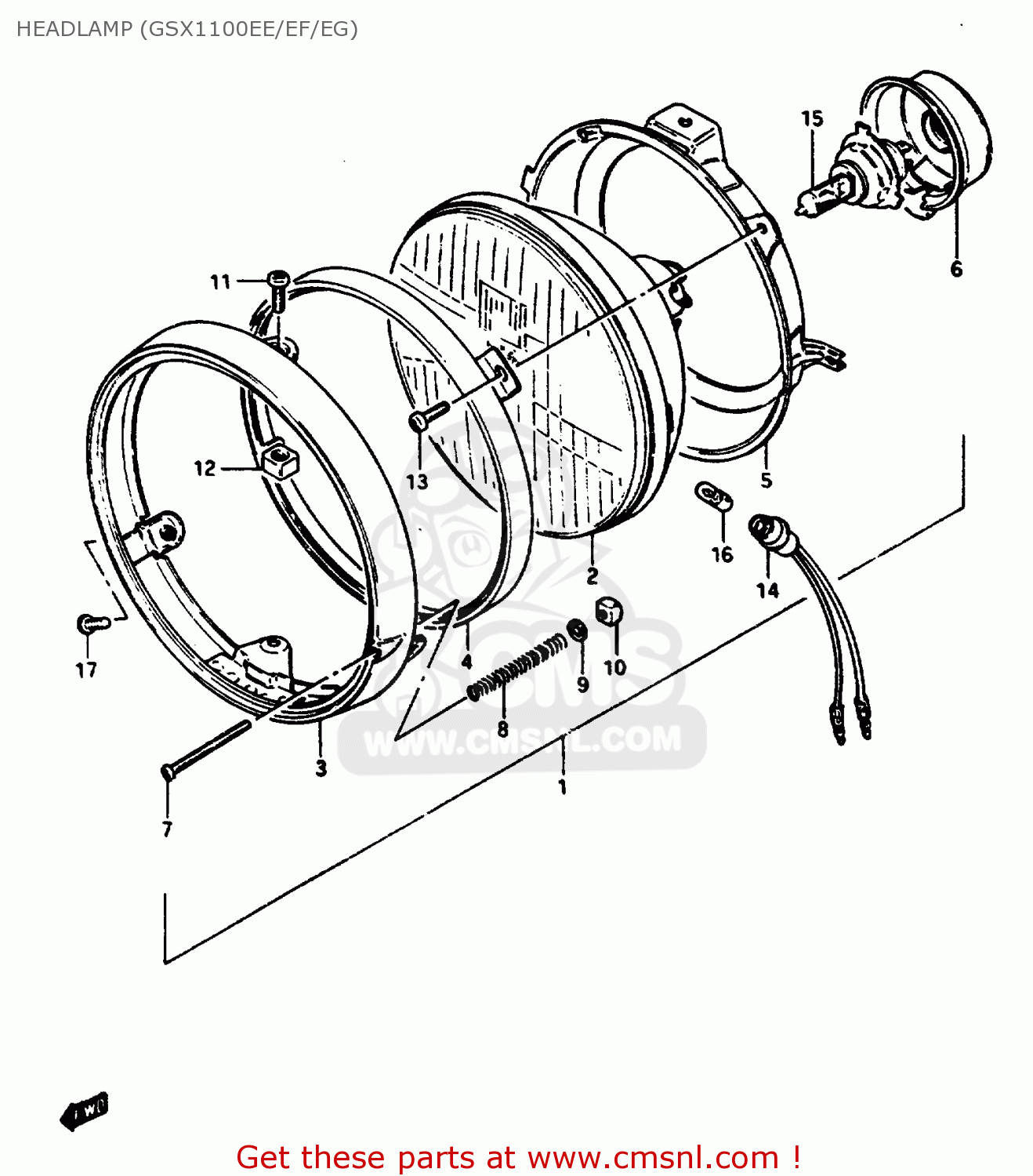

Headlamp (gsx1100ee/ef/eg) diagram GSX1150ES 1985 (F) (E06)

HEADLAMP (GSX1100EE/EF/EG) GSX1150ES 1985 (F) (E06)

HEADLAMP (GSX1100EE/EF/EG) GSX1150ES 1985 (F) (E06)

prices are in EUR

ref

part #

description

quantity

1-1

3510000A30999
ref: 1-1
E1,E6,E24

LAMP ASSEMBLY,HEAD

€ 0.00

1-2

3510000A20999
ref: 1-2
E2

HEADLAMP ASSY

€ 0.00

1-3

3510000A40999
ref: 1-3
E4

HEADLAMP ASSY

€ 258.00

1-4

3510000A50999
ref: 1-4
E21,E22

HEADLAMP ASSY

€ 258.00

2-1

3512145930
ref: 2-1
E1,E6,E24

LAMP UNIT

€ 151.00

2-2

3512145920
ref: 2-2
E2

UNIT

€ 164.50

2-3

3512145950
ref: 2-3
E4,E21,E22

LAMP UNIT

€ 171.00

3

3511100A20
ref: 3

RIM,HEADLAMP

€ 69.50

4

3512745900
ref: 4

RETAINER

€ 30.50

5

3513045900
ref: 5

RING,MOUNTING

€ 126.00

6

3517349200
ref: 6

COVER,HEADLAMP SOCKET

€ 12.50

7

3515145900
ref: 7

SCREW

€ 4.00

8

3515445900
ref: 8

SPRING,HEADLAMP ADJUST

€ 3.50

9

3515727630
ref: 9

WASHER

€ 2.50

10

3513545600
ref: 10

NUT

€ 3.00

11

0211205128
ref: 11

SCREW

€ 2.50

12

3513545900
ref: 12

NUT

€ 2.50

13

0211204088
ref: 13

SCREW

€ 1.50

14

3611845900
ref: 14
E2,E4,E21,E22

SOCKET,PARKING

€ 13.00

15-1

0947112060
ref: 15-1

BULB(12V60/55W,H4)

€ 8.00

15-2

0947112061
ref: 15-2
E4,EXECUTED LOCALLY

BULB (12V, 60/55W, H4)

€ 0.00

16

0947112063
ref: 16
E2,E4,E21,E22

BULB(12V4W)

€ 6.00

17

0213205124
ref: 17

SCREW

€ 2.00
