REAR SWINGING ARM

GSX1150ES 1985 (F) (E06)

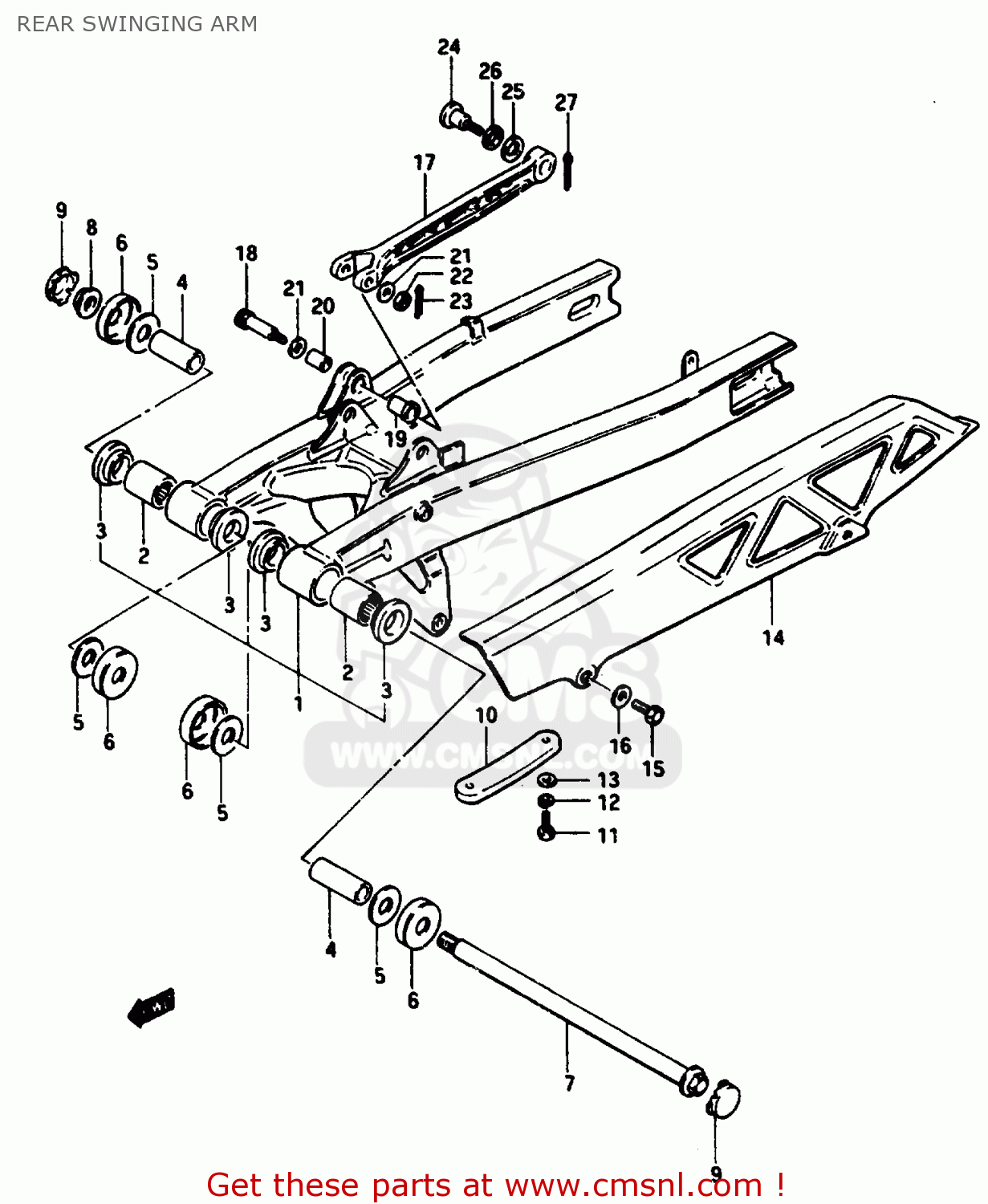

Rear swinging arm diagram GSX1150ES 1985 (F) (E06)

REAR SWINGING ARM GSX1150ES 1985 (F) (E06)

REAR SWINGING ARM GSX1150ES 1985 (F) (E06)

prices are in EUR

ref

part #

description

quantity

1

6100000A00
ref: 1

ARM,REAR SWING

€ 679.00

2

0926325024
ref: 2

BEARING(25X33X30)

€ 31.50

3

6126131300
ref: 3

BUSHING

€ 21.00

4

6125100A00
ref: 4

SPACER,RR SWINGING ARM PIVOT

€ 25.50

5

0821116381
ref: 5

WASHER

€ 2.50

6

6126249201
ref: 6

COVER,RR SWINGINGARM PIVOT

€ 8.50

7

6121100A00
ref: 7

SHAFT,REAR SWING ARM

€ 32.50

8

0915914017
ref: 8

NUT

€ 9.00

9

6122231301
ref: 9

CAP,PIVOT

€ 7.00

10

6127300A00
ref: 10

BUFFER,CHAIN TOUCH DEFENSE

€ 9.50

11

0110706125
ref: 11

BOLT

€ 2.00

12

0832121064
ref: 12

WASHER,LOCK

€ 2.00

13

0916006056
ref: 13

WASHER(6.5X18X1)

€ 2.00

14-1

6131000A00
ref: 14-1
MODEL E/F

CASE,CHAIN

€ 61.00

14-2

6131000A01
ref: 14-2
MODEL G

CASE,CHAIN

€ 61.00

15

0110706125
ref: 15

BOLT

€ 2.00

16

0916906034
ref: 16

WASHER

€ 2.50

17

6431100A0013L
ref: 17

LINK,REAR TORQUE

€ 57.00

18

0910108019
ref: 18

BOLT 8X60

€ 2.50

19

6435300A00
ref: 19

SPACER,REAR TORQUE LINK

€ 5.00

20

6435400A00
ref: 20

SPACER,REAR TORQUE LINK

€ 4.50

21

0832211088
ref: 21

WASHER

€ 2.00

22

0831441088
ref: 22

NUT 8MM

€ 2.50

23

0411120208
ref: 23

PIN 20X20

€ 1.50

24

6433100A00
ref: 24

BOLT,REAR TORGUE LINK,REAR

€ 7.00

25

0932018003
ref: 25

CUSHION

€ 2.50

26

0916018014
ref: 26

WASHER (18.5X28X2)

€ 2.00

27

0411120208
ref: 27

PIN 20X20

€ 1.50
