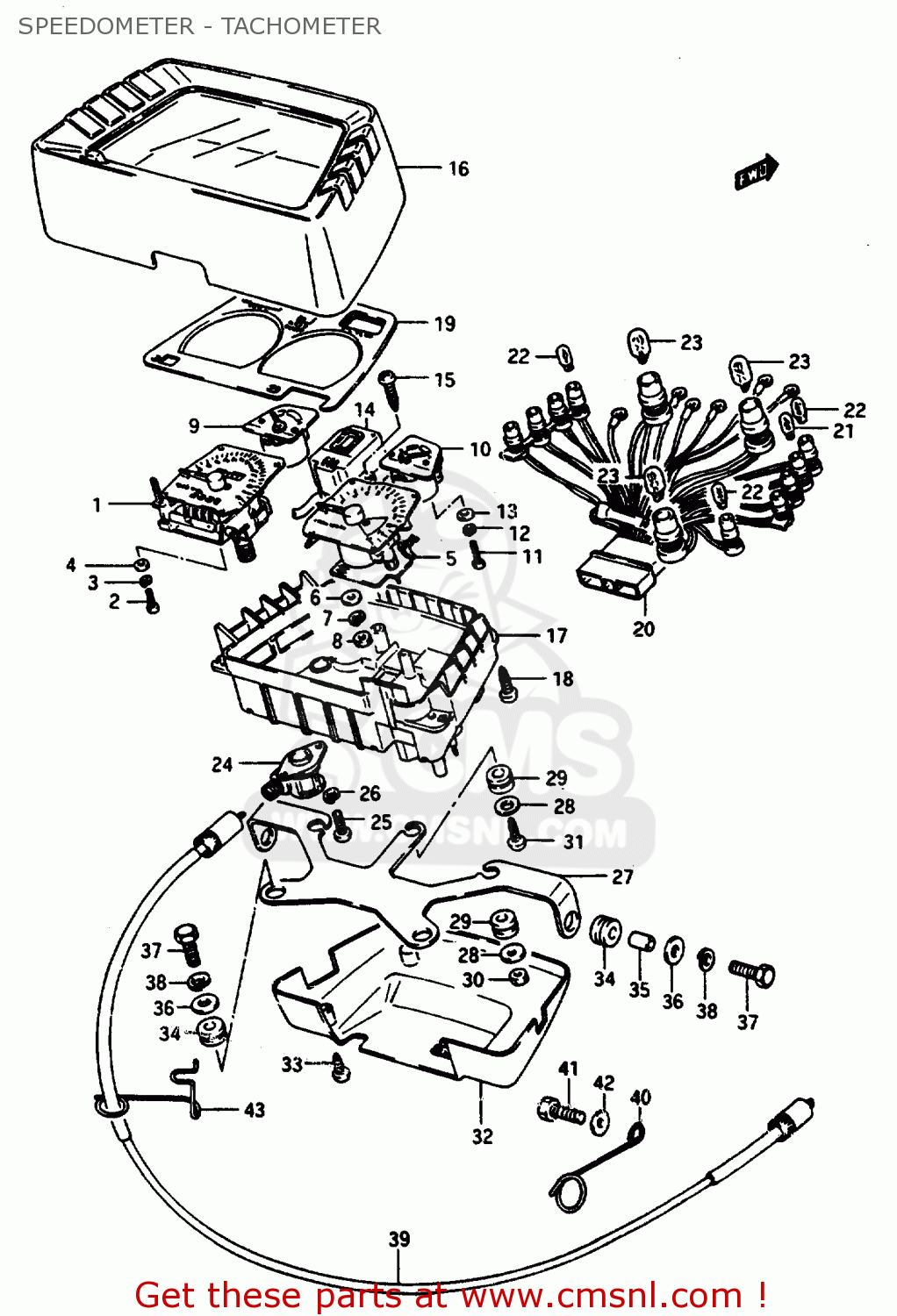

SPEEDOMETER - TACHOMETER - GSX1150ES 1985 (F) (E06)

ref

part #

description

quantity

0

ref: 0

1-1

3412000A11
ref: 1-1

SPEEDOMETER (KILO)

€ 275.00

1-2

3412000A21
ref: 1-2

SPEEDOMETER (MILE/KILO)

€ 374.50

1-3

3412000A51
ref: 1-3
E22

SPEEDOMETER (KILO)

€ 275.00

2

0211203106
ref: 2

SCREW

€ 1.50

3

0832121036
ref: 3

LOCK WASHER

€ 1.50

4

0832221036
ref: 4

WASHER 3.3X8X0

€ 1.50

5-1

3422000A11
ref: 5-1

METER,TACHOMETER

€ 278.50

5-2

3422000A31
ref: 5-2
E24

TACHOMETER

€ 278.50

6

0832221048
ref: 6

WASHER

€ 2.00

7

0832131046
ref: 7

LOCK WASHER

€ 2.00

8

0831022048
ref: 8

NUT 4MM

€ 2.00

9

3432000A11
ref: 9

METER,FUEL

€ 95.50

10-1

3473000A11
ref: 10-1

OIL TEMPERATURE METER (DEGREES C)

€ 99.50

10-2

3473000A31
ref: 10-2

METER,OIL TEMPERATURE

€ 0.00

11

0211203126
ref: 11

SCREW

€ 2.50

12

0832121036
ref: 12

LOCK WASHER

€ 1.50

13

0832221036
ref: 13

WASHER 3.3X8X0

€ 1.50

14

3645049910
ref: 14

INDICATOR ASSEMBLY,GEAR POSITION

€ 220.00

15

0321204109
ref: 15

SCREW

€ 2.00

16-1

3415010830
ref: 16-1
MODEL E/F E1,E2,E4,E

HOOD SET

€ 0.00

16-2

3415000A10
ref: 16-2
MODEL G E1,E2,E4,E6,

HOOD,METER

€ 120.00

16-3

3415010840
ref: 16-3
MODEL E/F E2,E15,E16

HOOD SET, METER

€ 0.00

16-4

3415000A40
ref: 16-4
MODEL G E2,E15,E16,E

HOOD, METER

€ 120.00

16-5

3415010850
ref: 16-5
MODEL E/F E17

HOOD SET, METER

€ 0.00

16-6

3415000A70
ref: 16-6
MODEL G E17

HOOD, METER

€ 120.00

17

3411100A10
ref: 17

CASE,METER

€ 78.50

18

0321204109
ref: 18

SCREW

€ 2.00

19

3415300A10
ref: 19

PLATE,METER WINDOW

€ 35.00

0

ref: 0

20-1

3417000A10
ref: 20-1
WITH SIDE STAND LAMP

SOCKET UNIT,METER

€ 97.00

20-2

3417000A40
ref: 20-2
NON SIDE STAND LAMP

SOCKET, METER

€ 97.00

20-3

3417000A50
ref: 20-3
E22

SOCKET, METER

€ 97.00

21

0947112100
ref: 21

BULB(12V1.7W,WB372,T7)

€ 2.00

22

0947112085
ref: 22

BULB(12V3W,WB371,T7)

€ 3.00

23

0947112082
ref: 23

BULB(12V3.4W,T10,BF175-01450A)

€ 3.50

24

3413149300
ref: 24

GEAR BOX,SPEEDOMETER

€ 197.50

25

0211204106
ref: 25

SCREWM4X0.7X10

€ 1.00

26

0832121046
ref: 26

LOCK WASHER

€ 2.00

27-1

3495010A10
ref: 27-1
MODEL E/F

BRACKET,METER

€ 38.00

27-2

3495010A11
ref: 27-2
MODEL G

BRACKET,METER

€ 38.00

28

3418149300
ref: 28

WASHER,COMBINATION METER

€ 1.50

29

3495528010
ref: 29

CUSHION

€ 4.00

30

0831022048
ref: 30

NUT 4MM

€ 2.00

31

0314204169
ref: 31

SCREW

€ 2.00

32

3419310A10
ref: 32

COVER,METER

€ 48.50

33

0311204125
ref: 33

SCREW

€ 1.50

34

0932009016
ref: 34

CUSHION

€ 2.50

35

0918006011
ref: 35

SPACER (6.1X9X9)

€ 2.00

36

0916006006
ref: 36

WASHER

€ 2.00

37

0110706206
ref: 37

BOLT,M6X1X20

€ 2.00

38

0832121066
ref: 38

WASHER,LOCK

€ 2.00

39

3491010A01
ref: 39

CABLE ASSEMBLY,SPEEDOMETER

€ 26.50

40

3493845100
ref: 40

CLAMP,SPEEDOMETER CABLE

€ 14.50

41

0110706168
ref: 41

BOLT, UPPER

€ 3.00

42

0832221068
ref: 42

WASHER

€ 2.00

43

3493800A10
ref: 43

GUIDE,METER CABLE

€ 4.00
