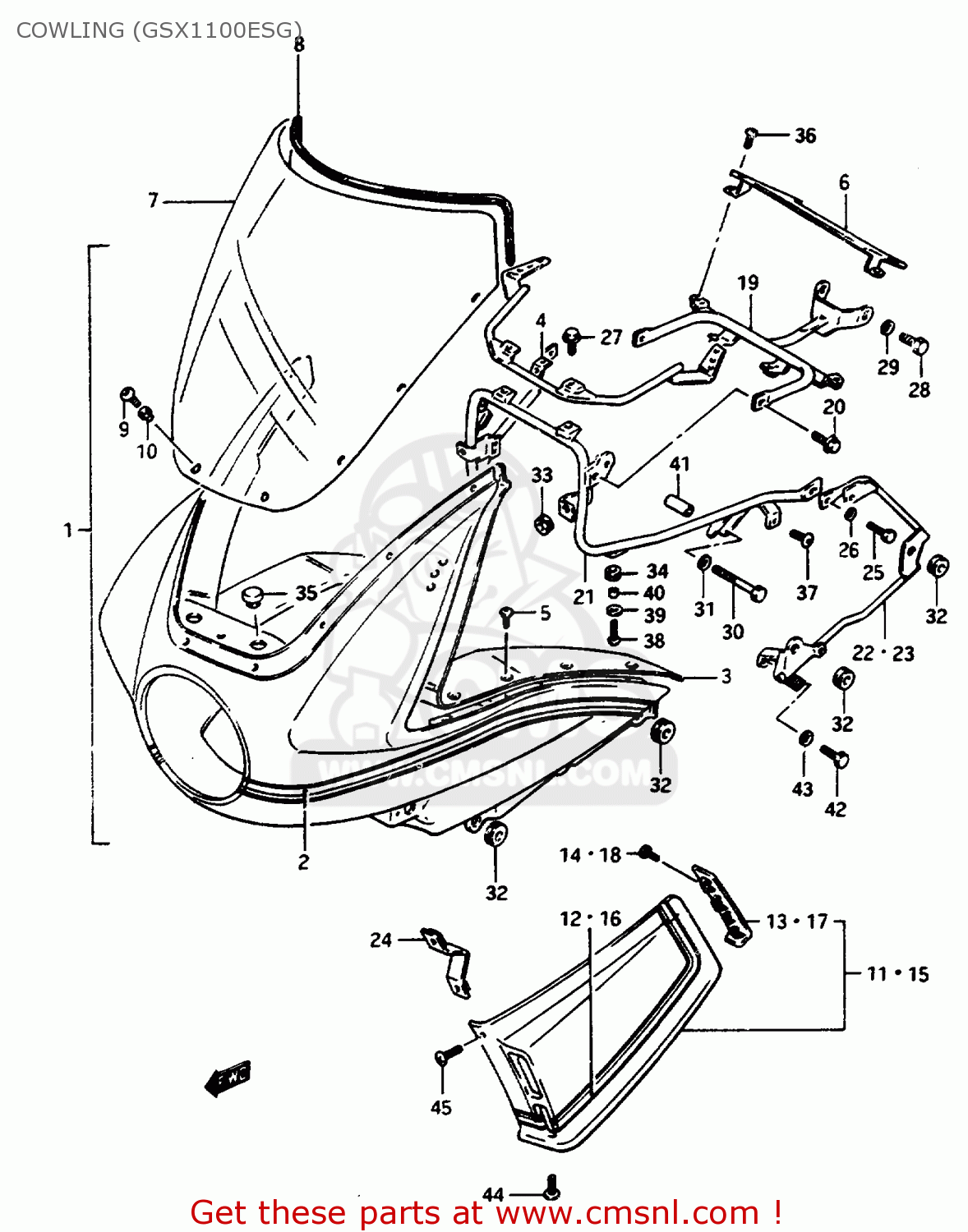

COWLING (GSX1100ESG)

ref

part #

description

quantity

1-1

9440000A907JJ
ref: 1-1

COWLING ASSY (WHITE/RED)

€ 1,245.00

1-2

9440000A907JK
ref: 1-2

COWLING ASSY (BLACK/RED)

€ 0.00

2-1

6819000A708BV
ref: 2-1
FOR 7JJ

TAPE SET,COWLING

€ 0.00

2-2

6819000A707JL
ref: 2-2
FOR 7JK

TAPE SET,COWLING

€ 0.00

3

9442000A01
ref: 3

PANEL,COWLING

€ 75.00

4

9456000A00
ref: 4

BRACE,COWLING BODY

€ 35.00

5

0323104104
ref: 5

SCREW, PANEL

€ 2.00

6

9442600A01
ref: 6

COVER,METER,REAR

€ 26.00

7-1

9461100A00
ref: 7-1

WINDOW,COWLING

€ 464.50

7-2

9461100A20
ref: 7-2
E17

SCREEN

€ 393.50

8-1

9463100A00
ref: 8-1

MOLDING COWLING

€ 18.00

8-2

9463100A10
ref: 8-2
E17

MOLDING

€ 14.00

9

0913905023
ref: 9

SCREW(5X20)

€ 2.00

10

0932005008
ref: 10

CUSHION

€ 5.00

11-1

9443000A707JJ
ref: 11-1

COVER, RH (WHITE/RED)

€ 132.00

11-2

9443000A707JK
ref: 11-2

COVER, RH (BLACK/RED)

€ 132.00

12-1

6868000A408BV
ref: 12-1
FOR 7JJ

TAPE SET,COWLING

€ 0.00

12-2

6868000A407JL
ref: 12-2
FOR 7JK

TAPE SET,COWLING

€ 0.00

13

9443200A00
ref: 13

PANEL,COWL SIDE COVER RR RH

€ 8.00

14

0354104126
ref: 14

SCREW

€ 1.50

15-1

9444000A707JJ
ref: 15-1

COVER, LH (WHITE/RED)

€ 0.00

15-2

9444000A707JK
ref: 15-2

COVER, LH (BLACK/RED)

€ 147.00

16-1

6869000A208BV
ref: 16-1
FOR 7JJ

TAPE SET,COWLING SIDE

€ 0.00

16-2

6869000A207JL
ref: 16-2
FOR 4JK

TAPE SET,COWLING SIDE

€ 0.00

17

9444200A00
ref: 17

PANEL,COWLING SIDE COVER

€ 7.50

18

0354104126
ref: 18

SCREW

€ 1.50

19

9451000A00
ref: 19

BRACE,COWLING,FRONT

€ 45.00

20

0151706163
ref: 20

BOLT

€ 2.50

21

9452000A00
ref: 21

BRACE,COWL RR

€ 118.00

22

9453000A01
ref: 22

BRACE,COWLING SIDE,RIGHT

€ 27.50

23

9454000A01
ref: 23

BRACE,COWLING SIDE,LEFT

€ 27.50

24

9455000A00
ref: 24

BRACE,SIDE,FRONT

€ 4.00

25

0110706165
ref: 25

BOLT 6X16

€ 2.00

26

0832121064
ref: 26

WASHER,LOCK

€ 2.00

27

0151706163
ref: 27

BOLT

€ 2.50

28

0110708165
ref: 28

BOLT

€ 2.00

29

0832121084
ref: 29

WASHER,LOCK,8.

€ 2.50

30

0110708505
ref: 30

BOLT

€ 3.00

31

0832121084
ref: 31

WASHER,LOCK,8.

€ 2.50

32

0932008018
ref: 32

CUSHION

€ 4.00

33

0932008013
ref: 33

CUSHION

€ 4.00

34

0932009016
ref: 34

CUSHION

€ 2.50

35

0925018003
ref: 35

PLUG(OD:22)

€ 2.00

36

0214205104
ref: 36

SCREW 5X10

€ 2.50

37

0214206125
ref: 37

SCREW 6X12

€ 2.00

38

0214206205
ref: 38

SCREW, CENTER

€ 2.00

39

0916006056
ref: 39

WASHER(6.5X18X1)

€ 2.00

40

0918006011
ref: 40

SPACER (6.1X9X9)

€ 2.00

41

0918008091
ref: 41

SPACER (8.6X13.8X35)

€ 3.00

42

0711008165
ref: 42

BOLT

€ 3.00

43

0832121084
ref: 43

WASHER,LOCK,8.

€ 2.50

44

0913905029
ref: 44

SCREW

€ 1.50

45

0214206167
ref: 45

SCREW

€ 2.00
