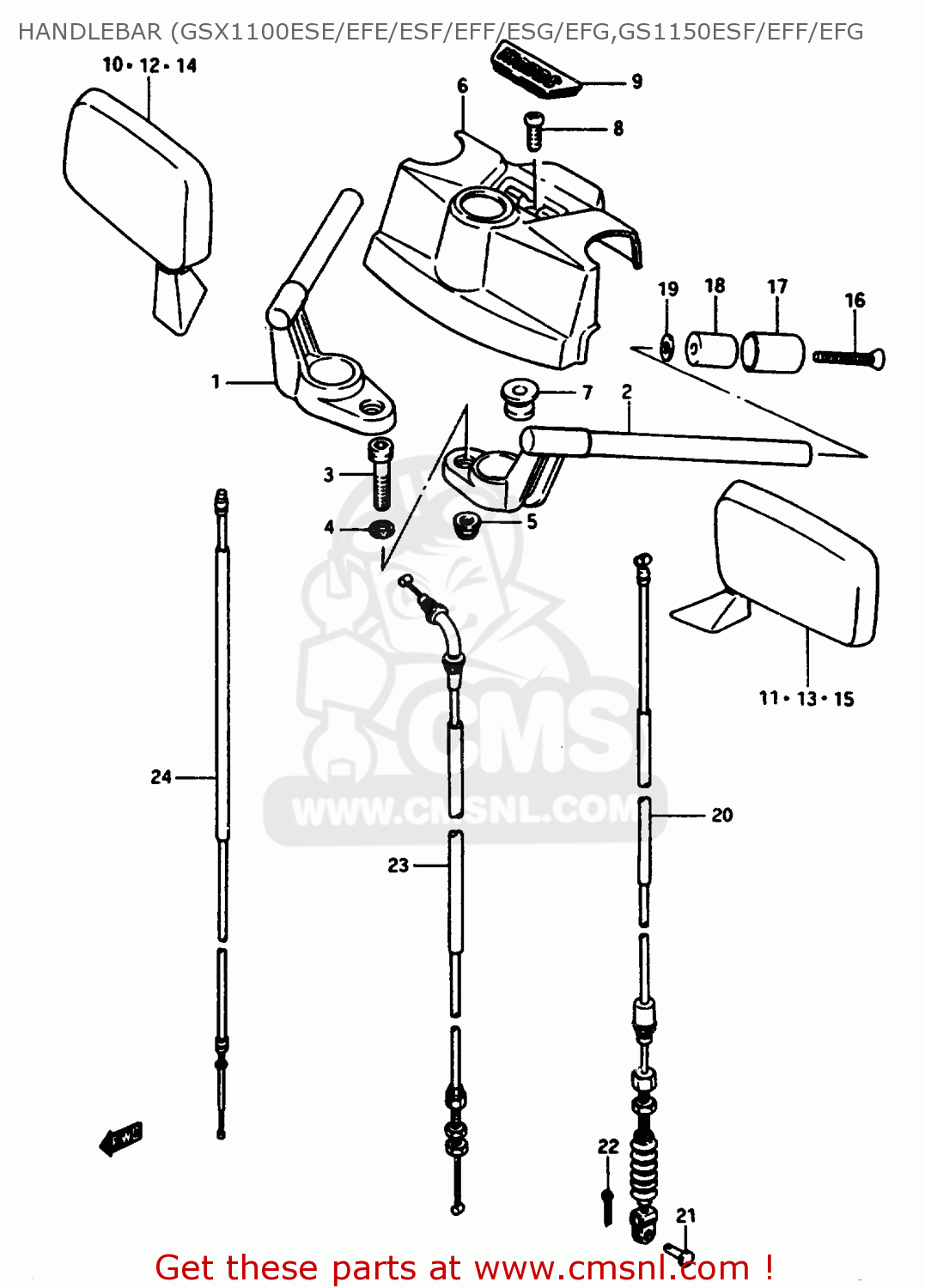

HANDLEBAR (GSX1100ESE/EFE/ESF/EFF/ESG/EFG,GS1150ESF/EFF/EFG

ref

part #

description

quantity

1-1

5611100A11
ref: 1-1

HANDLEBAR, RH

€ 263.50

1-2

5611100A21
ref: 1-2
E22

HANDLEBAR, RH

€ 263.50

2-1

5615100A11
ref: 2-1

HANDLEBAR, LH

€ 180.00

2-2

5615100A21
ref: 2-2
E22

HANDLEBAR, LH

€ 180.00

3

0910610023
ref: 3

BOLT(10X50)

€ 6.00

4

0916410005
ref: 4

WASHER

€ 6.50

5

0831931105
ref: 5

NUT 10MM

€ 3.00

6

5617000A10
ref: 6

PAD,HANDLE

€ 16.00

7

3495631001
ref: 7

CUSHION,METER BRACKET

€ 4.50

8

0211206168
ref: 8

SCREW

€ 2.50

9

5617400A00
ref: 9

CAP,HANDLE PAD

€ 8.00

10

5650000A00
ref: 10

MIRROR ASSEMBLY,RIGHT

€ 45.00

11

5660000A00
ref: 11

MIRROR ASSEMBLY,LEFT

€ 46.50

12

5650000A10
ref: 12
E2,E4,E21,E22,E25

MIRROR ASSY,RR VIEW,R

€ 45.00

13

5660000A10
ref: 13
E2,E4,E21,E22,E25

MIRROR ASSY,RR VIEW,L

€ 50.50

14

5650000A20
ref: 14
E16,E18,E24,E26

MIRROR, REAR VIEW RH

€ 45.00

15

5660000A20
ref: 15
E16,E18,E24,E26

MIRROR, REAR VIEW LH

€ 50.50

16-1

0213206655
ref: 16-1
MODEL E

SCREW 6X65

€ 2.50

16-2

0213206505
ref: 16-2
MODEL F/G

SCREW

€ 3.00

17-1

5627400A10
ref: 17-1
MODEL F/G

CAP,BALANCER

€ 6.00

17-2

5627405350
ref: 17-2
MODEL F/G

CAP,BALANCER

€ 223.50

18-1

5627100A00
ref: 18-1
MODEL E

BALANCER,HANDLEBAR

€ 19.50

18-2

5627149400
ref: 18-2
MODEL F/G

BALANCER,HANDLE

€ 19.50

19

5627534400
ref: 19

SPACER,BALANCER

€ 2.50

20

5820000A20
ref: 20

CABLE ASSY,CLUTCH

€ 42.00

21

0920006011
ref: 21

PIN(L:15)

€ 2.50

22

0411120158
ref: 22

PIN

€ 1.50

23-1

5830000A20
ref: 23-1

CABLE ASSEMBLY,THROTTLE

€ 25.00

23-2

5830000A30
ref: 23-2
GSX1100ESF/EFF/ESG/E

CABLE, THROTTLE

€ 0.00

24

5841000A20
ref: 24

CABLE COMP,STARTER

€ 9.00
