CYLINDER HEAD

GSX1150ES 1985 (F) (E06)

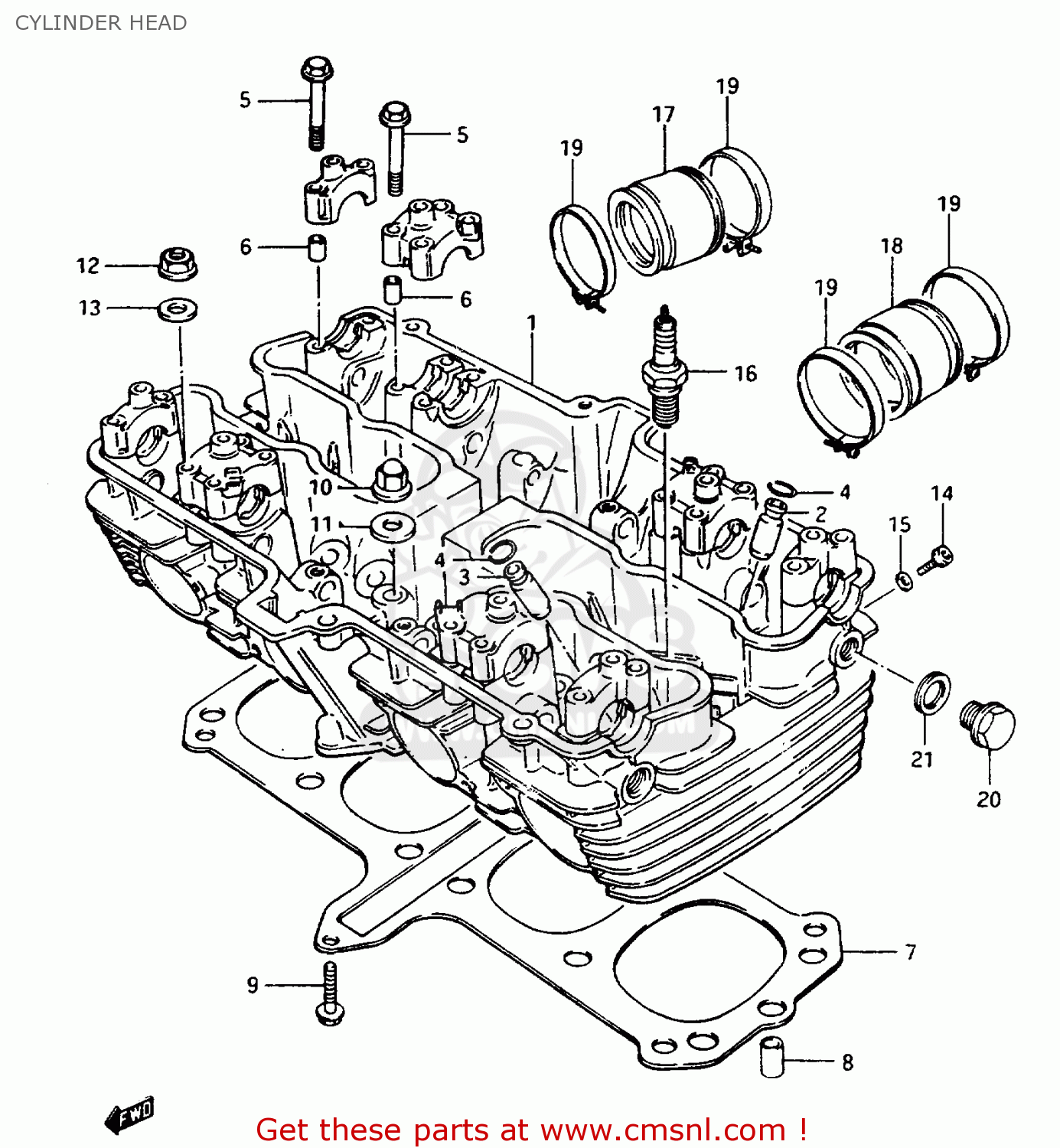

Cylinder head diagram GSX1150ES 1985 (F) (E06)

CYLINDER HEAD GSX1150ES 1985 (F) (E06)

CYLINDER HEAD GSX1150ES 1985 (F) (E06)

prices are in EUR

ref

part #

description

quantity

1

1110000A03
ref: 1

HEAD,CYLINDER (16 VALVE)

€ 1,330.00

2

1111549290
ref: 2

GUIDE,INTAKE VALVE

€ 19.50

3

1111549290
ref: 3

GUIDE,INTAKE VALVE

€ 19.50

4

0938110004
ref: 4

RING,SNAP

€ 1.50

5

0910306026
ref: 5

BOLT(6X39)

€ 2.00

6

0920608001
ref: 6

PIN(6.2X8X11)

€ 2.00

7

1114100A03
ref: 7

GASKET,CYLINDER HEAD (NAS)

€ 120.50

8

0421111189
ref: 8

PIN

€ 2.00

9

0151706305
ref: 9

BOLT 6X30

€ 2.50

10

0915910026
ref: 10

NUT

€ 6.00

11

0916810017
ref: 11

GASKET(10.5X22X2) (NAS)

€ 3.50

12

0831616108
ref: 12

NUT

€ 2.00

13

0916010039
ref: 13

WASHER(10.5X22X2.3)

€ 2.50

14

0711005085
ref: 14

BOLT, INTAKE PORT

€ 2.50

15

0916805010
ref: 15

GASKET(5.3X9.3X1.2) (NAS)

€ 2.00

16-1

0948200184
ref: 16-1

SPARK PLUG D9EA

€ 6.50

16-2

0948200185
ref: 16-2

SPARK PLUG X27ES-U

€ 0.00

16-3

0948200221
ref: 16-3
E2,E4,E6,E15,E16.E17

PLUG,SPARK(DR8ES)

€ 5.50

16-4

0948200224
ref: 16-4
E2,E4,E6,E15,E16E,17

PLUG,SPARK(X27ESR-U)

€ 9.50

17

1311100A00
ref: 17

PIPE,INTAKE RH

€ 22.00

18

1312100A00
ref: 18

PIPE INTAKE (NAS)

€ 22.00

19

0940252306
ref: 19

CLAMP

€ 6.00

20

0924714012
ref: 20

PLUG (14X12)

€ 3.50

21

0916814004
ref: 21

GASKET(14X19.2X2) (NAS)

€ 2.50
