REAR MASTER CYLINDER

GSX1150ES 1985 (F) (E06)

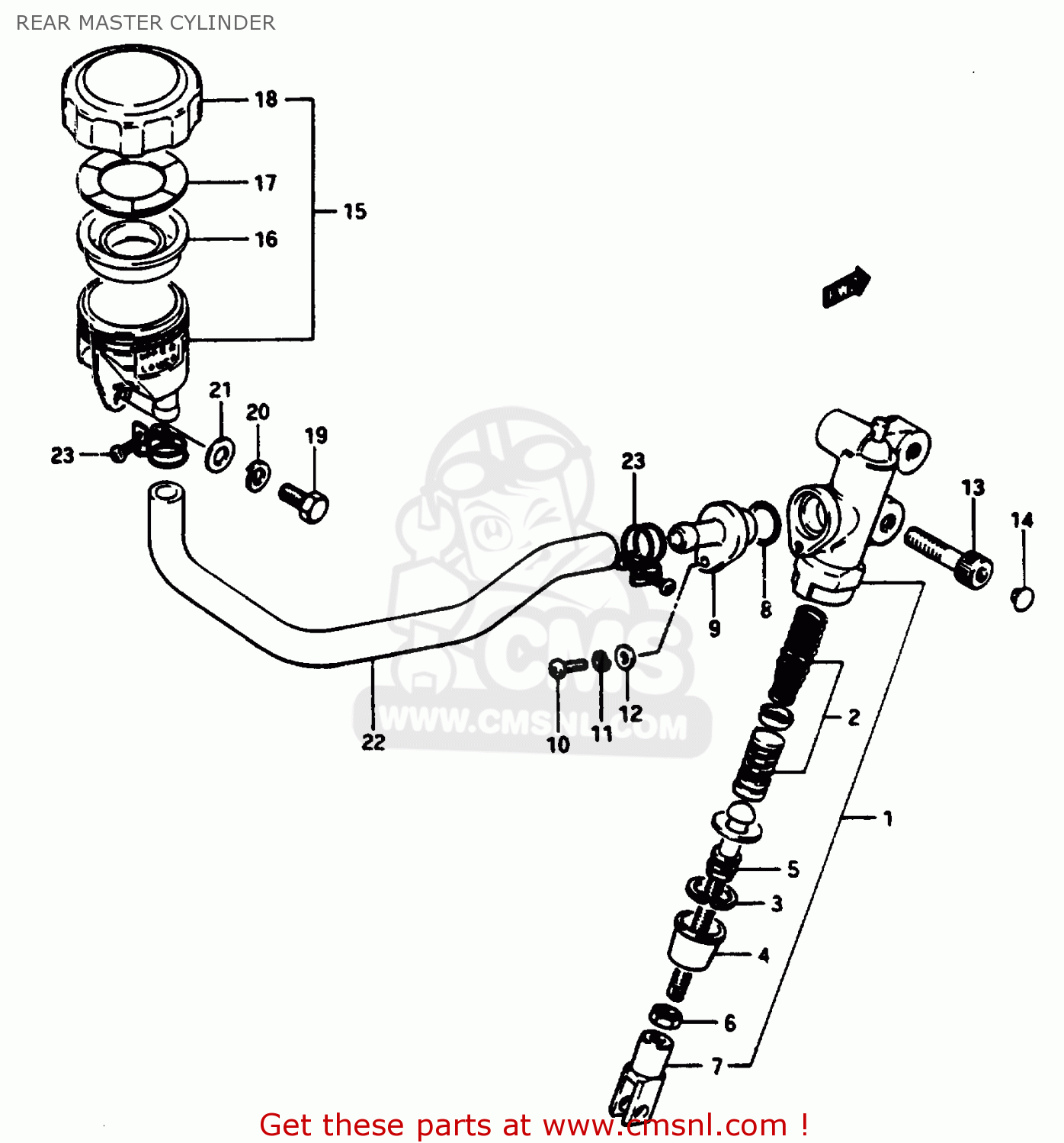

Rear master cylinder diagram GSX1150ES 1985 (F) (E06)

REAR MASTER CYLINDER GSX1150ES 1985 (F) (E06)

REAR MASTER CYLINDER GSX1150ES 1985 (F) (E06)

prices are in EUR

ref

part #

description

quantity

1

6960000A00
ref: 1

CYLINDER ASSEMBLY,REAR MASTER

€ 178.00

2

6960034810
ref: 2

PISTON/CUP SET

€ 36.50

3

5116270040
ref: 3

CIRCLIP

€ 3.00

4

6969100A00
ref: 4

BOOT

€ 3.50

5

6967000A00
ref: 5

ROD,PUSH

€ 13.00

6

6969334300
ref: 6

NUT,MASTER CYLINDER

€ 1.50

7

6969234300
ref: 7

YOKE

€ 11.00

8

6968634200
ref: 8

O RING

€ 3.50

9

6967200A00
ref: 9

CONNECTOR

€ 5.50

10

0211204125
ref: 10

SCREW

€ 1.50

11

0832121045
ref: 11

LOCK WASHER

€ 2.00

12

0832221045
ref: 12

WASHER

€ 5.00

13

0711008358
ref: 13

BOLT, FRONT RH

€ 4.50

14

0925006008
ref: 14

CAP(OD:10)

€ 3.00

15

6974034250
ref: 15

TANK ASSEMBLY,RESERVOIR

€ 27.50

16

5966718441
ref: 16

DIAPHRAGM

€ 8.50

17

5966818441
ref: 17

PLATE,DIAPHRAGM

€ 3.50

18

5966939110
ref: 18

CAP

€ 16.00

19

0110706165
ref: 19

BOLT 6X16

€ 2.00

20

0832121064
ref: 20

WASHER,LOCK

€ 2.00

21

0832221064
ref: 21

WASHER

€ 2.00

22

6973100A00
ref: 22

HOSE,RESERVOIR TANK

€ 15.50

23

0940016302
ref: 23

CLAMP

€ 4.50
