PILLION RIDER HANDLE
GSX1150ES 1985 (F) (E06)

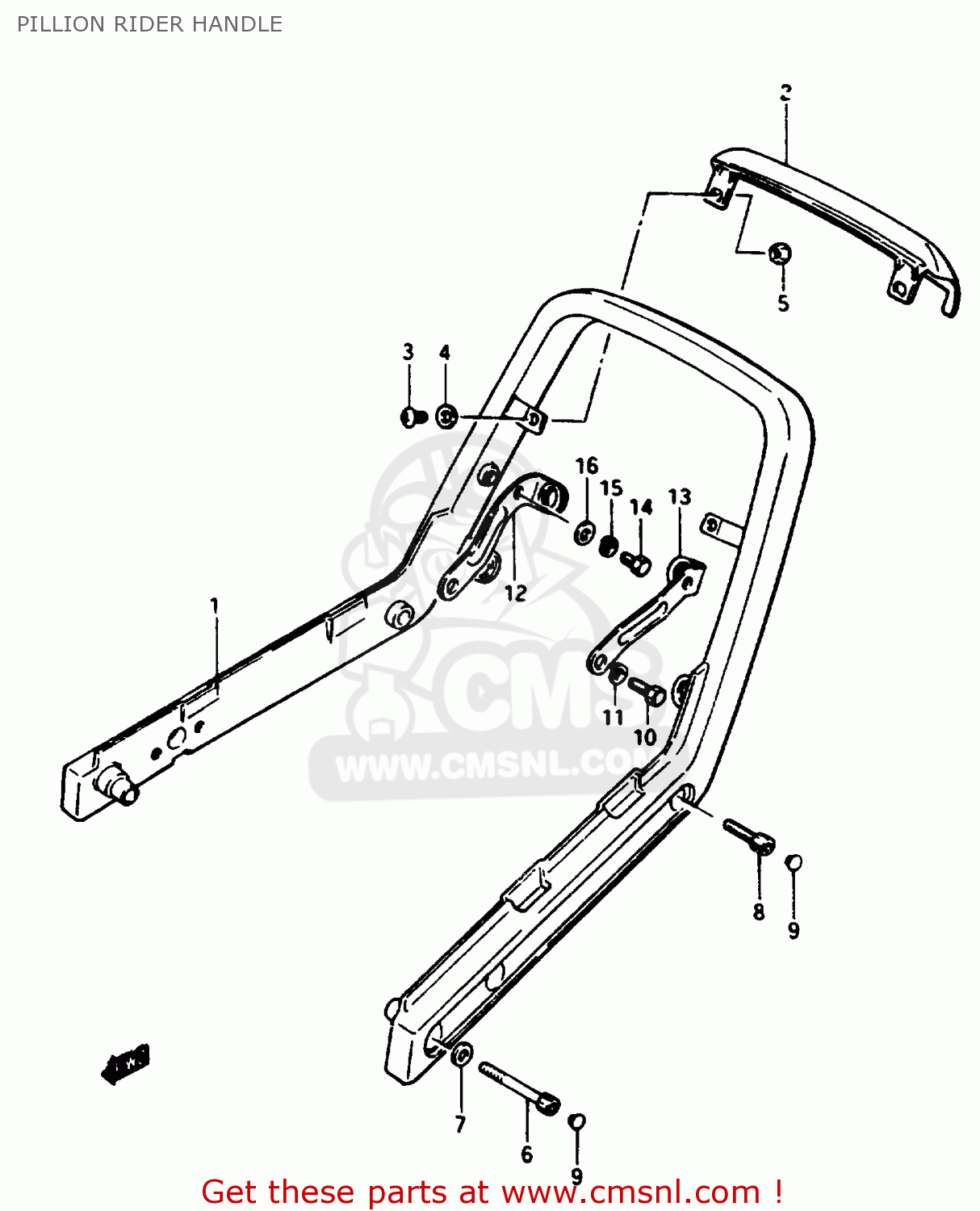

Pillion rider handle diagram GSX1150ES 1985 (F) (E06)
PILLION RIDER HANDLE GSX1150ES 1985 (F) (E06)
×
prices are in EUR
ref
part #
description
quantity
1
4621000A00
ref: 1
HANDLE,PILLION RIDER
€ 167.50
2-1
4622200A01
ref: 2-1
MODEL E
COVER,PILLION RIDER HANDLE
€ 13.50
2-2
4622200A02
ref: 2-2
MODEL F/G
COVER,PILLION RIDER HANDLE
€ 13.50
3
0214205126
ref: 3
SCREW
€ 1.50
4
0832221056
ref: 4
WASHER
€ 2.50
5
0831616056
ref: 5
NUT
€ 2.50
6
0711008505
ref: 6
BOLT
€ 3.50
7
0832211084
ref: 7
WASHER
€ 1.50
8
0711008255
ref: 8
BOLT
€ 3.50
9
0925006008
ref: 9
CAP(OD:10)
€ 3.00
10
0110708166
ref: 10
BOLT, 8X1.25X1
€ 2.00
11
0832121086
ref: 11
WASHER,LOCK,8.
€ 2.50
12
4623000A00
ref: 12
PLATE,PILLION RIDER HANDLE
€ 9.50
13
4624000A00
ref: 13
PLATE,PILLION RIDER HANDLE
€ 9.50
14
0110708126
ref: 14
BOLT 8X12
€ 1.50
15
0832121086
ref: 15
WASHER,LOCK,8.
€ 2.50
16
0832211086
ref: 16
WASHER 8MM
€ 1.50
