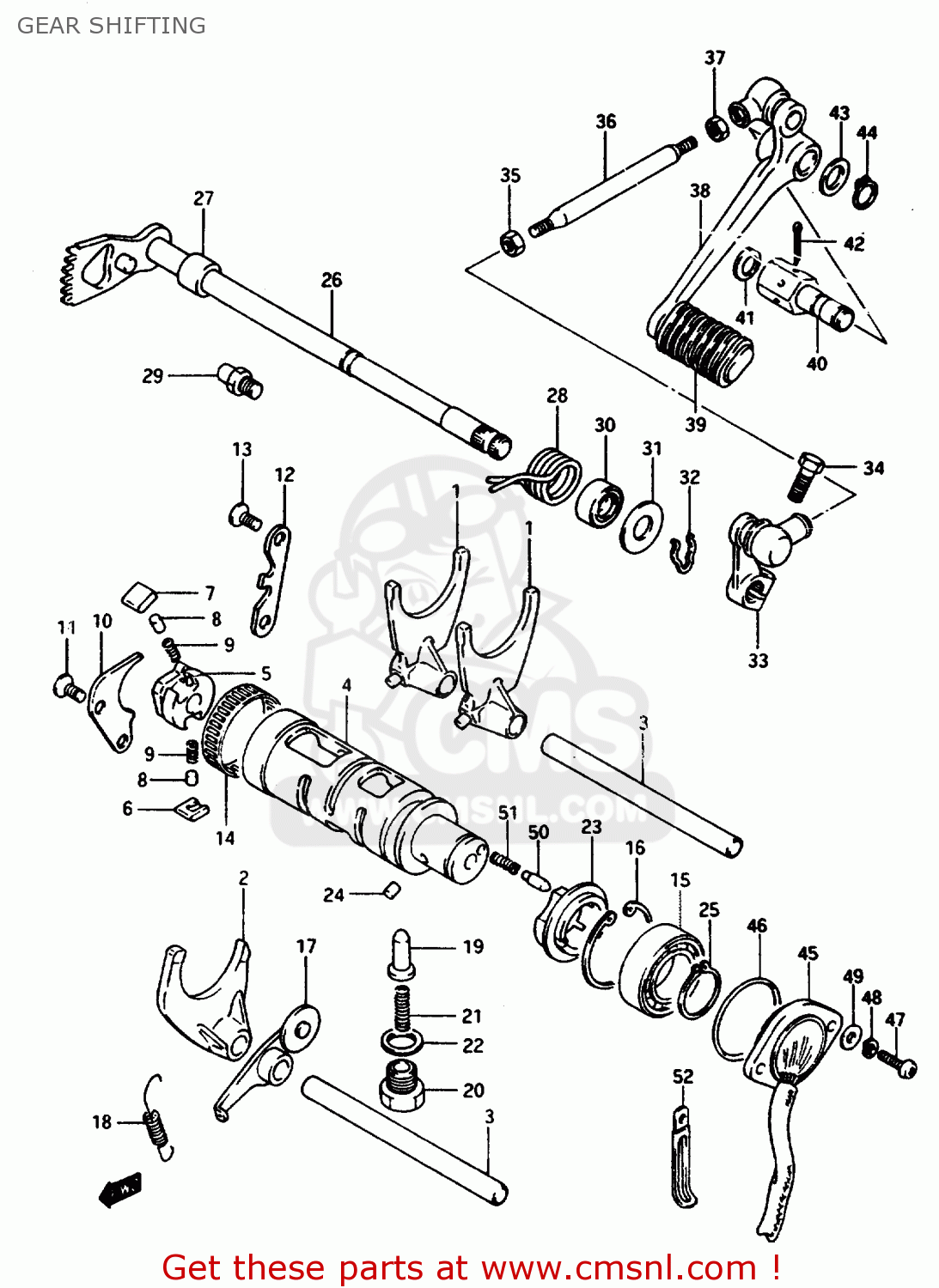

GEAR SHIFTING

ref

part #

description

quantity

1

2521149200
ref: 1

FORK,GEAR SHIFT NO.1

€ 87.00

2

2523149201
ref: 2

FORK,GEAR SHIFT NO.2

€ 106.00

3

2541133300
ref: 3

SHAFT,GEAR SHIFT FORK

€ 13.00

4

2531049200
ref: 4

CAM,GEAR SHIFT

€ 161.50

5

2532231301
ref: 5

GEAR,GEARSHIFT CAM DRIVE

€ 14.50

6

2532334200
ref: 6

PAWL,GEAR SHIFT NO.1

€ 6.00

7

2532434200
ref: 7

PAWL,GEAR SHIFT NO.2

€ 6.00

8

0926105003
ref: 8

PIN(5X8)

€ 1.50

9

0944004003
ref: 9

SPRING

€ 1.50

10

2533149200
ref: 10

LIFTER,GEAR SHIFT PAWL

€ 43.50

11

0212206128
ref: 11

SCREW

€ 3.00

12

2534118000
ref: 12

GUIDE,GEAR SHIFT CAM

€ 51.50

13

0212206128
ref: 13

SCREW

€ 3.00

14

0926343001
ref: 14

BEARING(43X49X12)

€ 30.00

15

0811069050
ref: 15

BALL BEARING

€ 36.00

16

0833141428
ref: 16

CIRCLIP,42MM

€ 1.50

17

2535000A00
ref: 17

STOPPER,GEAR SHIFTING CAM

€ 0.00

18

0944308019
ref: 18

SPRING

€ 2.50

19

2535130010
ref: 19

STOPPER,GEAR SHIFT CAM NO.2

€ 6.50

20

2535430000
ref: 20

HOLDER,GEAR SHIFT CAM STOP SPR

€ 6.50

21

0944006020
ref: 21

SPRING

€ 14.00

22

0916814004
ref: 22

GASKET(14X19.2X2) (NAS)

€ 2.50

23

2538149200
ref: 23

PLATE,GEAR SHIFT CAM STOPPER

€ 19.00

24

0621104063
ref: 24

PIN 4X6

€ 2.00

25

0833131258
ref: 25

CIRCLIP,25MM

€ 2.00

26

2551000A00
ref: 26

SHAFT,GEAR SHIFT

€ 86.00

27

0918012068
ref: 27

SPACER(12X20X15.3)

€ 3.00

28

0944426017
ref: 28

SPRING

€ 5.00

29

2567101000
ref: 29

STOPPER,GEAR SHIFT CAM

€ 3.00

30

0928512002
ref: 30

OIL SEAL

€ 7.00

31

0916012020
ref: 31

WASHER (12.5X27X1.6)

€ 2.00

32

0938412001
ref: 32

SPRING,RETAINER

€ 2.00

33

2552047020
ref: 33

ARM,GEAR SHIFT LINK

€ 53.50

34

0110706208
ref: 34

BOLT

€ 2.00

35

0831011068
ref: 35

NUT

€ 2.50

36-1

2552533400
ref: 36-1

ROD,GEAR SHIFT LINK

€ 12.00

36-2

2552500A01
ref: 36-2

ROD,GEAR SHIFT LINK

€ 12.00

37

0914006011
ref: 37

NUT

€ 1.50

38

2560000A01
ref: 38

LEVER ASSEMBLY,GEAR SHIFTING

€ 66.50

39

2565249300
ref: 39

RUBBER,PEDAL

€ 5.50

40

2561700A02
ref: 40

SHAFT,GEAR SHIFT LEVER

€ 7.00

41

0916410005
ref: 41

WASHER

€ 6.50

42

0411125258
ref: 42

COTTER PIN

€ 1.50

43

0916012011
ref: 43

WASHER(12.5X20X1)

€ 1.50

44

0833131128
ref: 44

CIRCLIP

€ 2.00

45

3772049211
ref: 45

BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL

€ 78.50

46

0928036001
ref: 46

O RING(D:2.4,ID:36.5)

€ 4.50

47

0912505102
ref: 47

SCREW(5X14)

€ 2.50

48

0832121058
ref: 48

LOCK WASHER

€ 2.00

49

0832221058
ref: 49

WASHER

€ 2.50

50

0920905011
ref: 50

PIN(5X15.5)

€ 2.00

51

0944004010
ref: 51

SPRING

€ 1.50

52

0940406401
ref: 52
MODEL F/G

CLAMP L:35

€ 2.50
