CAM SHAFT - VALVE

GSX400FE 1981 (X) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

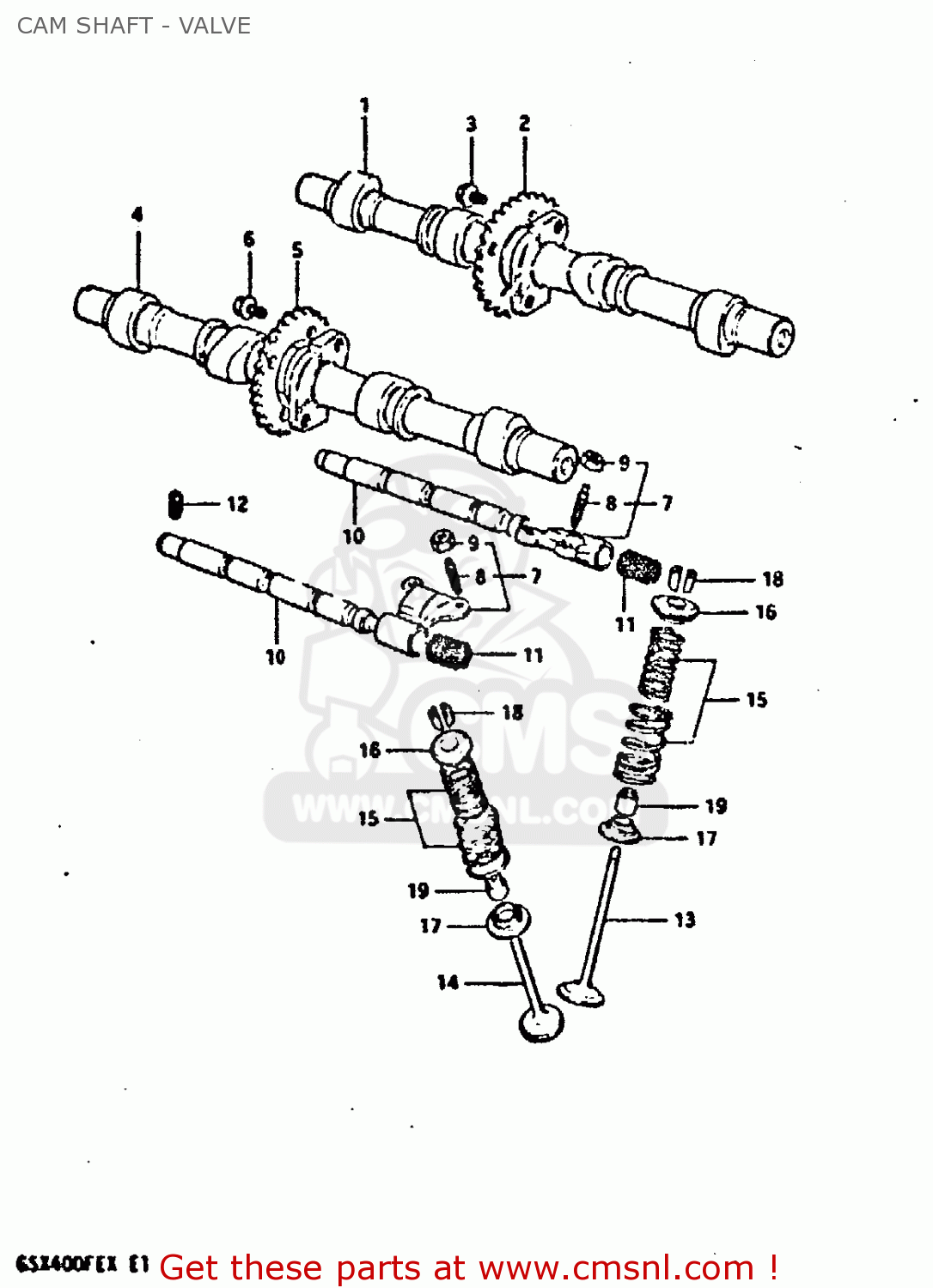

Cam shaft - valve diagram GSX400FE 1981 (X) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

prices are in EUR

ref

part #

description

quantity

1271133201
ref: 1

CAM SHAFT, INTAKE

€ 176.00

1274133200
ref: 2

SPROCKET, EXHAUST CAM SHAFT

€ 33.50

0910307001
ref: 3

BOLT(7X11)

€ 2.00

1272133201
ref: 4

CAM SHAFT, EXHAUST

€ 76.50

1274133200
ref: 5

SPROCKET, EXHAUST CAM SHAFT

€ 33.50

0910307001
ref: 6

BOLT(7X11)

€ 2.00

1284033200
ref: 7

ARM, VALVE ROCKER INTAKE

€ 73.50

1284249210
ref: 8

SCREW,TAPPET ADJUSTING

€ 5.50

1284349210
ref: 9

NUT,ADJUSTING

€ 3.00

1286033200
ref: 10

SHAFT, VALVE ROCKER ARM

€ 0.00

0944013014
ref: 11

SPRING

€ 2.50

0913906016
ref: 12

SCREW

€ 1.50

1291133230
ref: 13

VALVE,INTAKE

€ 23.50

1291233230
ref: 14

VALVE, EXHAUST

€ 39.00

1290033810
ref: 15

SPRING SET, VALVE

€ 16.00

1293133200
ref: 16

RETAINER,VALVE SPRING

€ 5.50

1293333200
ref: 17

SEAT,VALVE SPRING

€ 4.50

1293249200
ref: 18

COTTER VALVE

€ 2.50

0928905003
ref: 19

OIL SEAL

€ 6.50
