CYLINDER HEAD COVER

GSX400FE 1981 (X) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

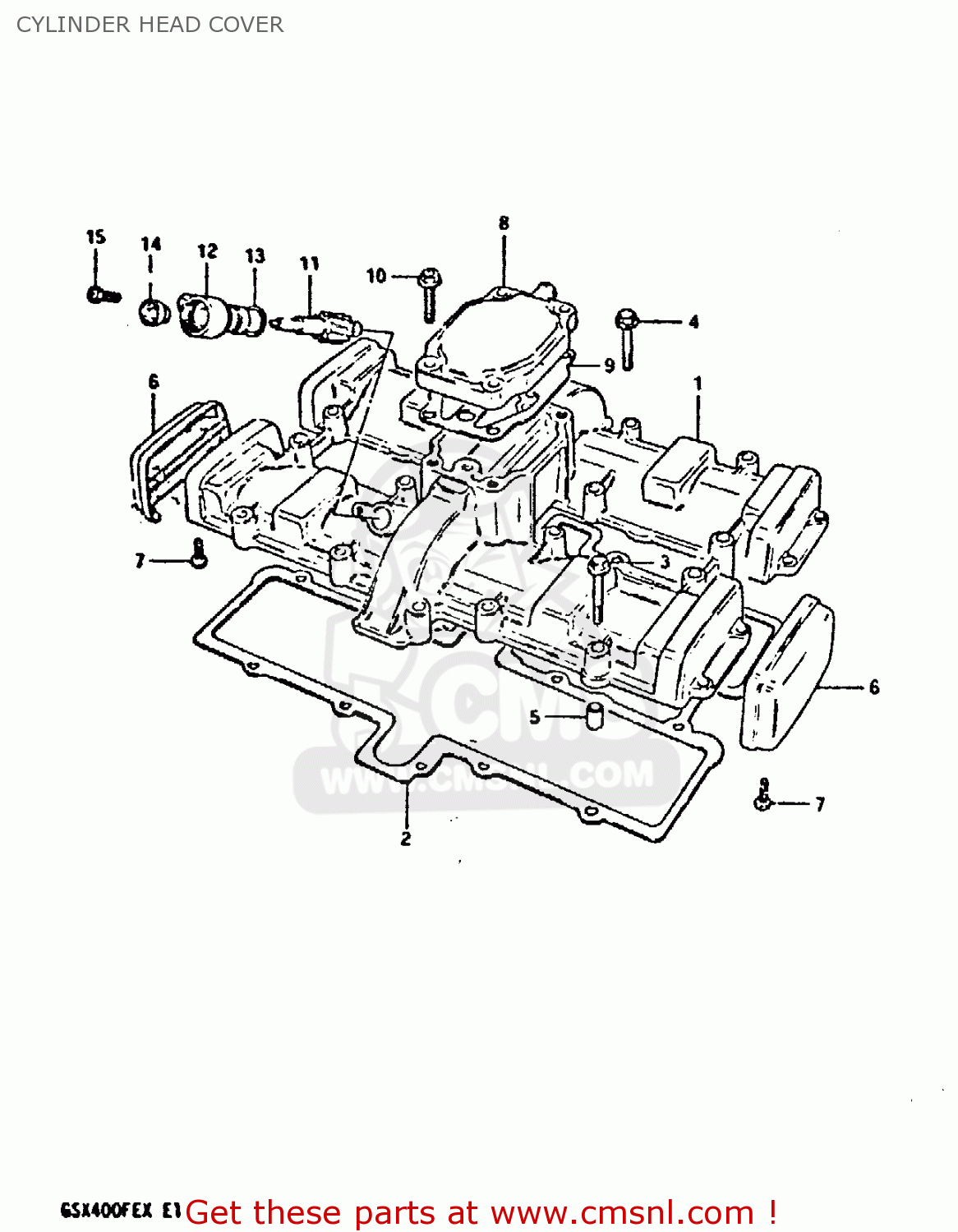

Cylinder head cover diagram GSX400FE 1981 (X) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

prices are in EUR

ref

part #

description

quantity

1117133200
ref: 1

COVER, CYLINDER HEAD

€ 76.50

1117333200
ref: 2

GASKET (MCA)

€ 81.00

0151706408
ref: 3

BOLT

€ 2.50

0151706358
ref: 4

BOLT 6X35

€ 2.50

0920608001
ref: 5

PIN(6.2X8X11)

€ 2.00

1117433200
ref: 6

CAP, CYLINDER HEAD COVER

€ 27.50

0211205168
ref: 7

SCREW

€ 2.50

1117633200
ref: 8

COVER, BREATHER

€ 25.50

1117733200
ref: 9

GASKET (MCA)

€ 7.50

0151706258
ref: 10

BOLT

€ 2.50

2643149200
ref: 11

GEAR,TACHOMETER DRIVEN

€ 40.00

2644149000
ref: 12

SLEEVE,TACHOMETER DRIVE GEAR

€ 18.00

2645145000A
ref: 13

SEAL,TACHOMETER DRIVEN

€ 4.50

0928905002
ref: 14

SEAL,OIL(5X12X8)

€ 11.00

0912805101
ref: 15

SCREW(5X12)

€ 1.50

CYLINDER HEAD COVER

all assemblies
