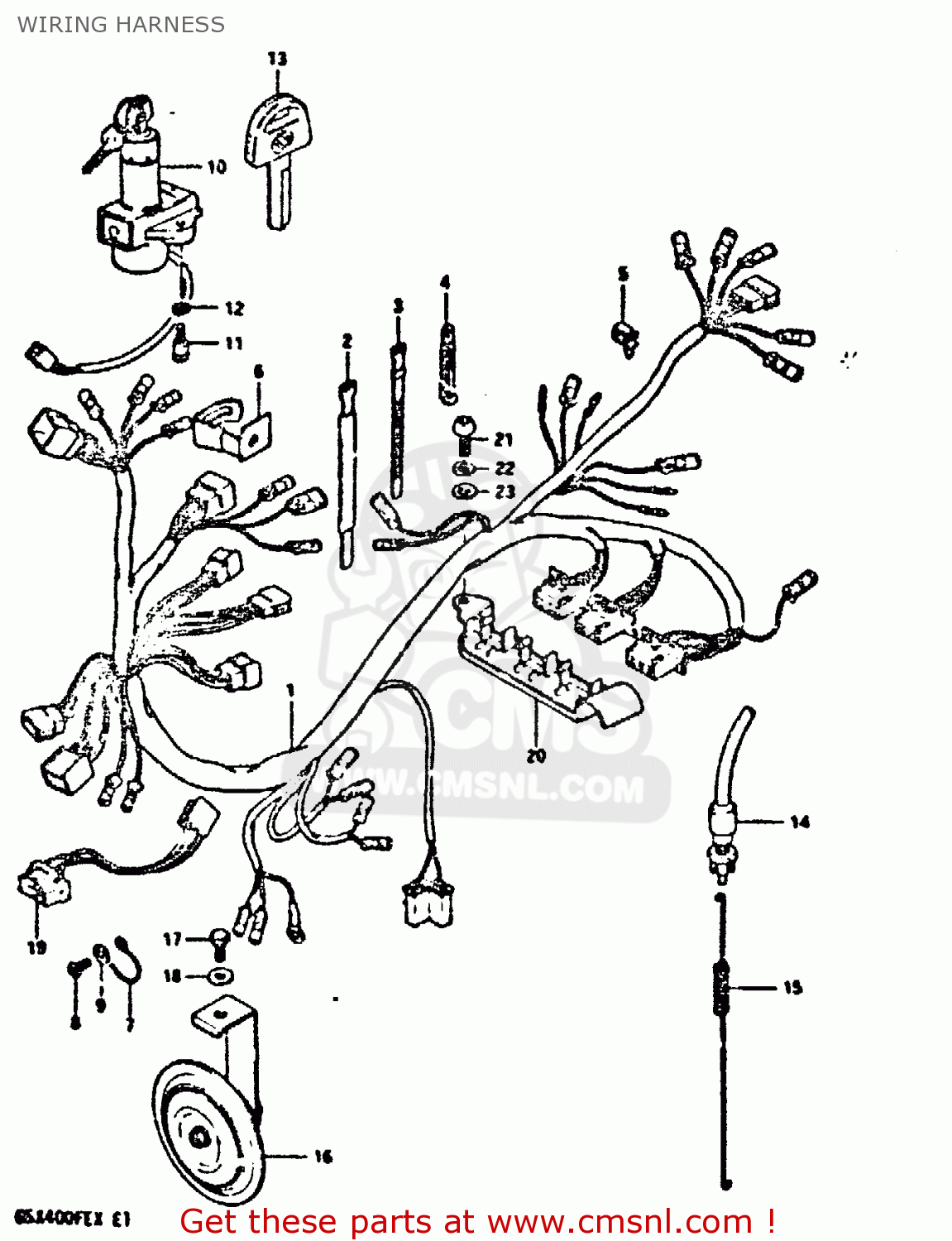

WIRING HARNESS

ref

part #

description

quantity

1

3661033200
ref: 1

WIRING HARNESS

€ 157.50

2

0940718301
ref: 2

CLAMP

€ 6.00

3

0940708401
ref: 3

CLAMP(L:80)

€ 2.50

4

0940406414
ref: 4

CLAMP

€ 3.00

5

0940305305
ref: 5

CLIP

€ 3.00

6

3665033200
ref: 6

CLAMP,WIRING HARNESS

€ 0.00

7

3661944000
ref: 7

GUIDE,WIRING HARNESS

€ 2.50

8

0211206128
ref: 8

SCREW 6X12

€ 2.00

9

0832221068
ref: 9

WASHER

€ 2.00

10-1

3710049201
ref: 10-1

SWITCH ASSY,IGNITION

€ 141.00

10-2

NOTUSED
ref: 10-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

11

3715247010
ref: 11

BOLT

€ 3.00

12

0832121068
ref: 12

LOCK WASHER

€ 2.50

13

3714647010
ref: 13
OPT

KEY,BLANK

€ 15.00

14

3774004571
ref: 14

SWITCH ASSEMBLY,STOP LAMP

€ 22.00

15

0944306006
ref: 15

SPRING

€ 3.50

16-1

3850033220
ref: 16-1

HORN

€ 51.50

16-2

NOTUSED
ref: 16-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

16-3

NOTUSED
ref: 16-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

17

0110708128
ref: 17

BOLT 8X12

€ 2.50

18

0832211068
ref: 18

WASHER 6MM

€ 2.00

19

3685234000
ref: 19

LEAD WIRE,HEADLAMP

€ 13.00

20

4745133200
ref: 20

PLATE, COUPLER

€ 9.00

21

0110706128
ref: 21

BOLT

€ 2.00

22

0832121068
ref: 22

LOCK WASHER

€ 2.50

23

0832221068
ref: 23

WASHER

€ 2.00

all assemblies
