CYLINDER

GSX400FE 1981 (X) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

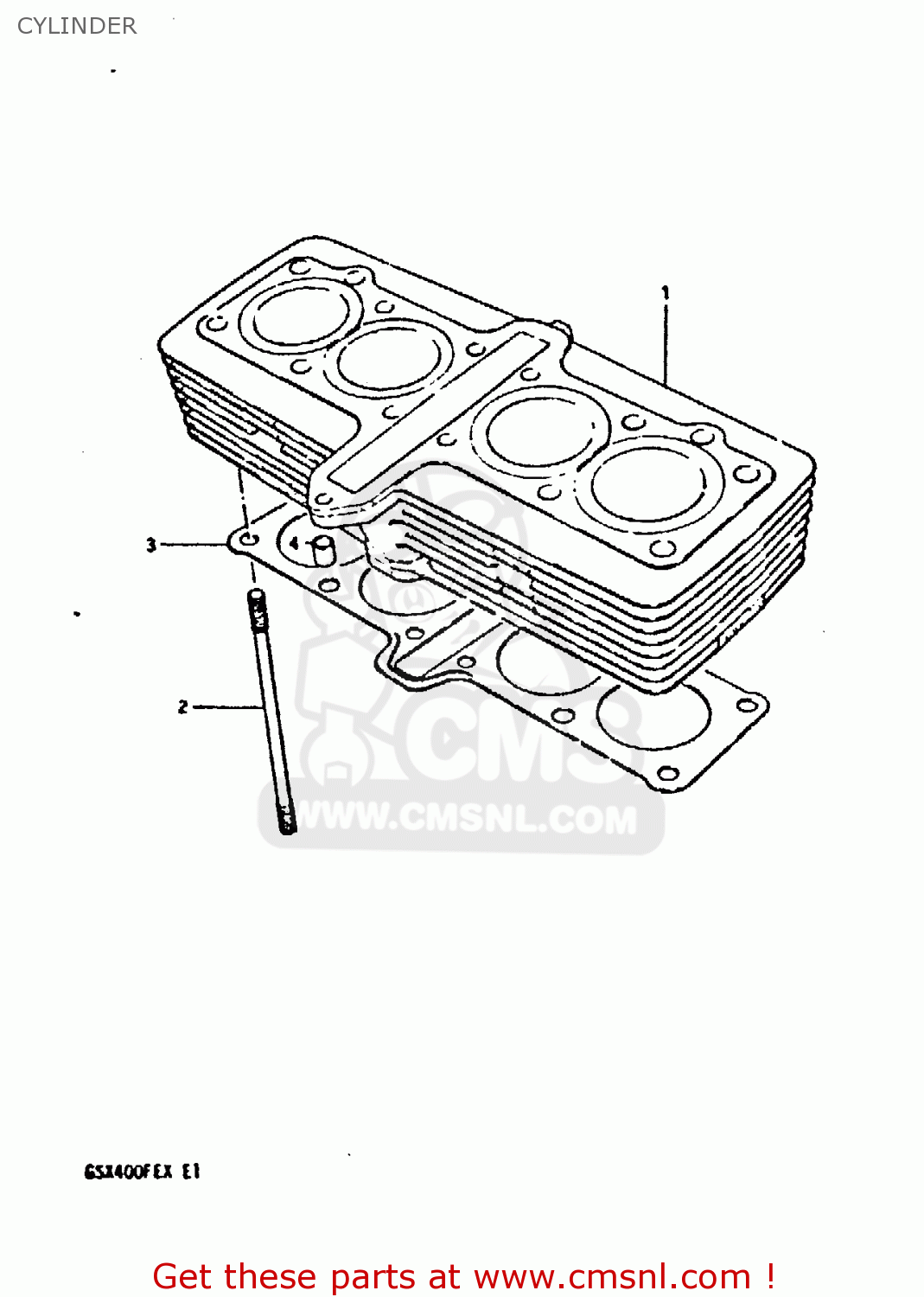

Cylinder diagram GSX400FE 1981 (X) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

CYLINDER GSX400FE 1981 (X) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

CYLINDER GSX400FE 1981 (X) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

prices are in EUR

ref

part #

description

quantity

1

1121033201
ref: 1

CYLINDER

€ 668.50

2

0910808085
ref: 2

STUD

€ 5.00

3

1124133201
ref: 3

GASKET (MCA)

€ 20.50

4

0920611003
ref: 4

PIN

€ 2.00
