OIL PUMP - OIL FILTER

GSX400FE 1981 (X) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

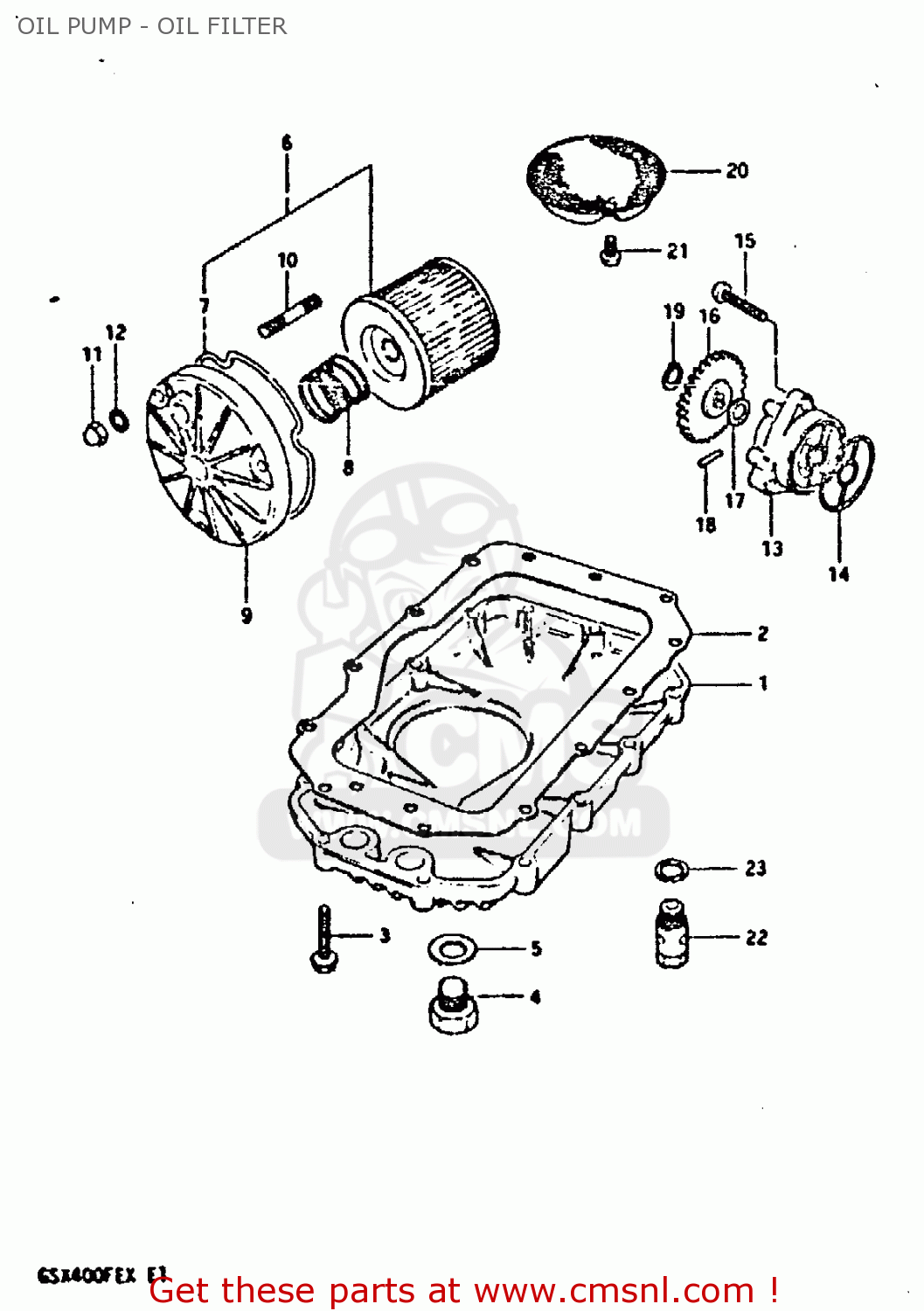

Oil pump - oil filter diagram GSX400FE 1981 (X) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

prices are in EUR

ref

part #

description

quantity

1151133201
ref: 1

PAN, OIL

€ 249.00

1148933201
ref: 2

GASKET

€ 22.00

0151706308
ref: 3

BOLT

€ 2.00

0924714001
ref: 4

PLUG

€ 5.00

0916814004
ref: 5

GASKET(14X19.2X2) (NAS)

€ 2.50

1650045810
ref: 6

ENGINE OIL FILTER SET

€ 11.50

1651845000
ref: 7

O RING,OIL FILTER CHAMBER CAP

€ 7.50

0944032004
ref: 8

SPRING

€ 13.50

1651234200
ref: 9

CAP,OIL FILTER

€ 47.00

0142106208
ref: 10

STUD 6X20

€ 2.50

0831311068
ref: 11

NUT

€ 2.00

0832221068
ref: 12

WASHER

€ 2.00

1640049210
ref: 13

PUMP ASSEMBLY,OIL

€ 155.00

1649149200
ref: 14

O-RING,OIL PUMP

€ 12.50

0211206258
ref: 15

SCREW

€ 2.00

1633145000
ref: 16

GEAR,ENG OIL PUMP DRIVEN

€ 135.50

0822110185
ref: 17

SHIM

€ 2.00

0926104009
ref: 18

PIN(4X15.8)

€ 1.50

0833131109
ref: 19

CIRCLIP

€ 2.00

1652034200
ref: 20

STRAINER,ENGINE OIL

€ 9.00

0211206128
ref: 21

SCREW 6X12

€ 2.00

1644044100
ref: 22

REGULATOR ASSEMBLY,ENGINE

€ 37.00

0821214181
ref: 23

WASHER

€ 2.00

OIL PUMP - OIL FILTER

all assemblies
