FRONT WHEEL

GSX400FE 1981 (X) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

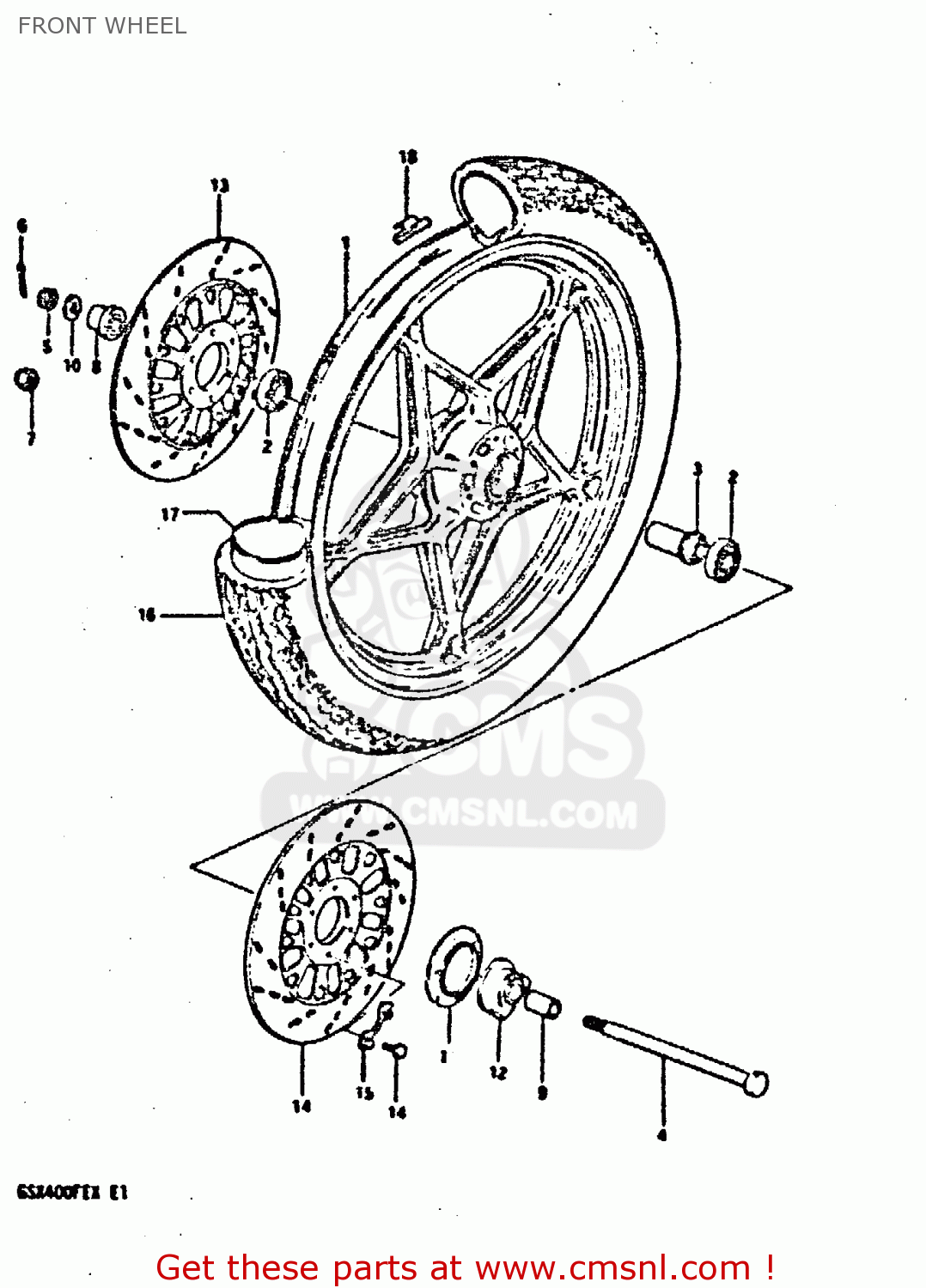

Front wheel diagram GSX400FE 1981 (X) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

prices are in EUR

ref

part #

description

quantity

1-1

NOTUSED
ref: 1-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-2

5411149300122
ref: 1-2
SLHVER METELLIE, E2

WHEEL, FRONT (1.85-19)

€ 0.00

0812383027
ref: 2

BEARING

€ 0.00

5473018400
ref: 3

SPACER,FR HUB BEARING

€ 13.00

5471133002
ref: 4

AXLE,FRONT

€ 41.00

0831431126
ref: 5

NUT

€ 2.00

0411130308
ref: 6

COTTER PIN

€ 1.50

NOTUSED
ref: 7

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

5474018410
ref: 8

SPACER,FR HUB BEARING,R

€ 17.00

0918015034
ref: 9

SPACER(15X22X30)

€ 7.00

0832221128
ref: 10

WASHER

€ 2.00

5487145010
ref: 11

DUST SEAL,SPEEDOMETER GEAR BOX

€ 21.00

5480018401
ref: 12

BOX ASSY, SPEADEMETER GEAR

€ 0.00

5021111200
ref: 13

DISK, FRONT BRAKE

€ 0.00

0910008140
ref: 14

BOLT(8X25)

€ 2.00

0916908018
ref: 15

WASHER

€ 0.00

5510033210
ref: 16
IRC

TIRE (3.25S19)

€ 0.00

5520015010
ref: 17

TUBE,INNER

€ 41.00

18-1

5541147001
ref: 18-1

BALANCER,WHEEL

€ 4.00

18-2

5541247001
ref: 18-2

BALANCER,WHEEL

€ 3.50
