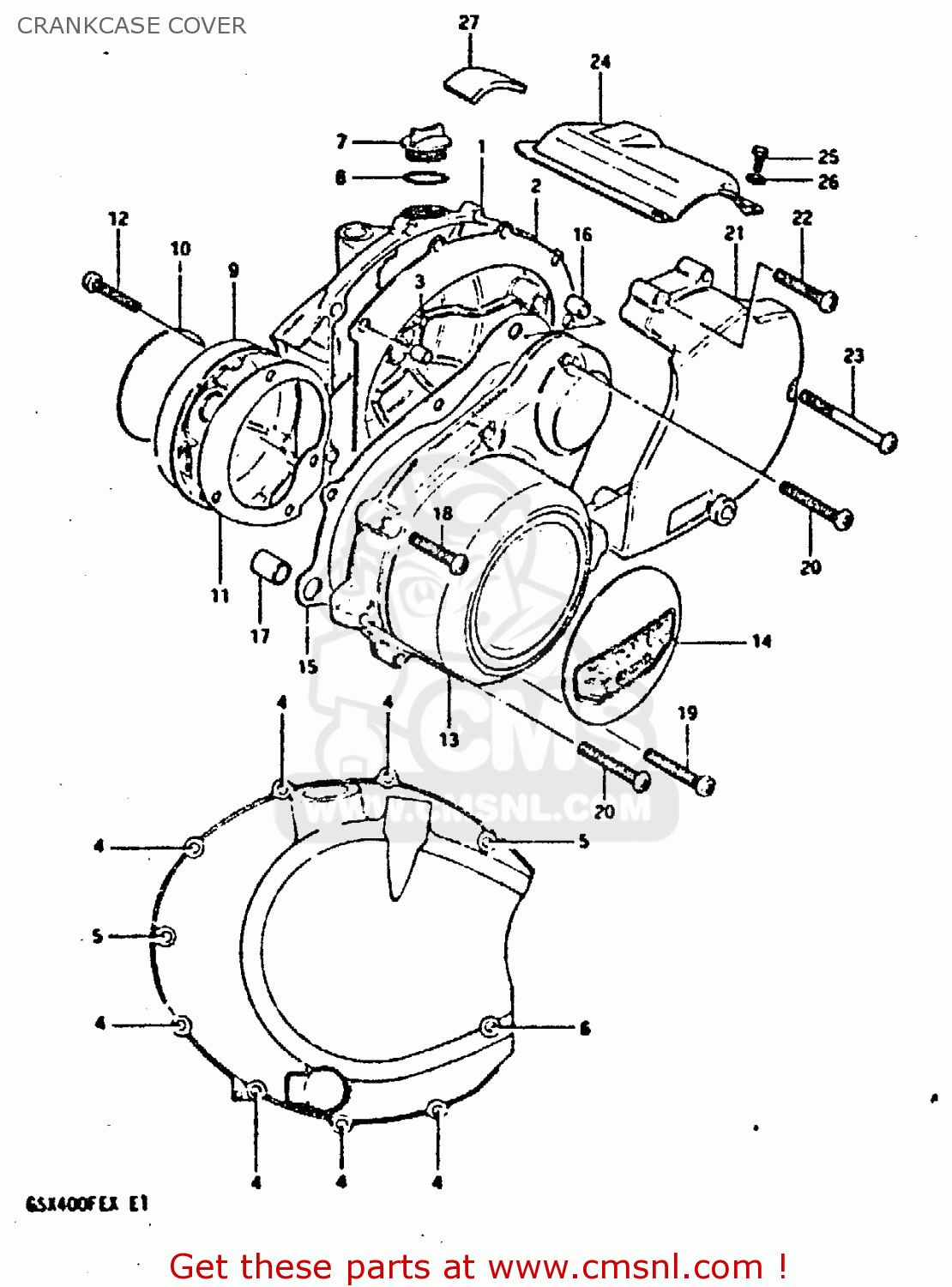

CRANKCASE COVER

ref

part #

description

quantity

1

1134033200
ref: 1

COVER, CLUTCH

€ 127.00

2

1148233200
ref: 2

GASKET (MCA)

€ 17.00

3

0421109129
ref: 3

PIN

€ 2.00

4

0211206258
ref: 4

SCREW

€ 2.00

5

0211206308
ref: 5

SCREW 6X30

€ 2.50

6

0211206458
ref: 6

SCREW (6X45)

€ 2.00

7

0925930003
ref: 7

PLUG

€ 8.50

8

0928027002
ref: 8

O-RING

€ 3.00

9

1138133200
ref: 9

COVER, CONTACT BREAKER

€ 57.50

10

6823533200
ref: 10

EMBLEM,CONTACT

€ 14.00

11

1149133201
ref: 11

GASKET,CONTACT BREAKER COVER (MCA)

€ 4.50

12

0211205308
ref: 12

SCREW

€ 1.50

13

1135133200
ref: 13

COVER, GENERATOR

€ 172.50

14

6823349200
ref: 14

EMBLEM,MAGNETO COVER

€ 29.50

15

1148333200
ref: 15

GASKET (MCA)

€ 11.50

16

0421109129
ref: 16

PIN

€ 2.00

17

0920613001
ref: 17

PIN

€ 2.50

18

0211206308
ref: 18

SCREW 6X30

€ 2.50

19

0211206358
ref: 19

SCREW (6X35)

€ 2.50

20

0211206408
ref: 20

SCREW

€ 2.00

21

1136133200
ref: 21

COVER, ENGINE SPROCKET

€ 43.50

22

0211206358
ref: 22

SCREW (6X35)

€ 2.50

23

0211206658
ref: 23

SCREW 6X65

€ 2.00

24

1138234200
ref: 24

COVER

€ 16.50

25

0110405088
ref: 25

BOLT 5X16

€ 2.00

26

0832221058
ref: 26

WASHER

€ 2.50

27

1136234200
ref: 27

DAMPER,STARTER MOTOR CLUTCH

€ 5.50
