CRANKSHAFT

GSX400FE 1981 (X) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

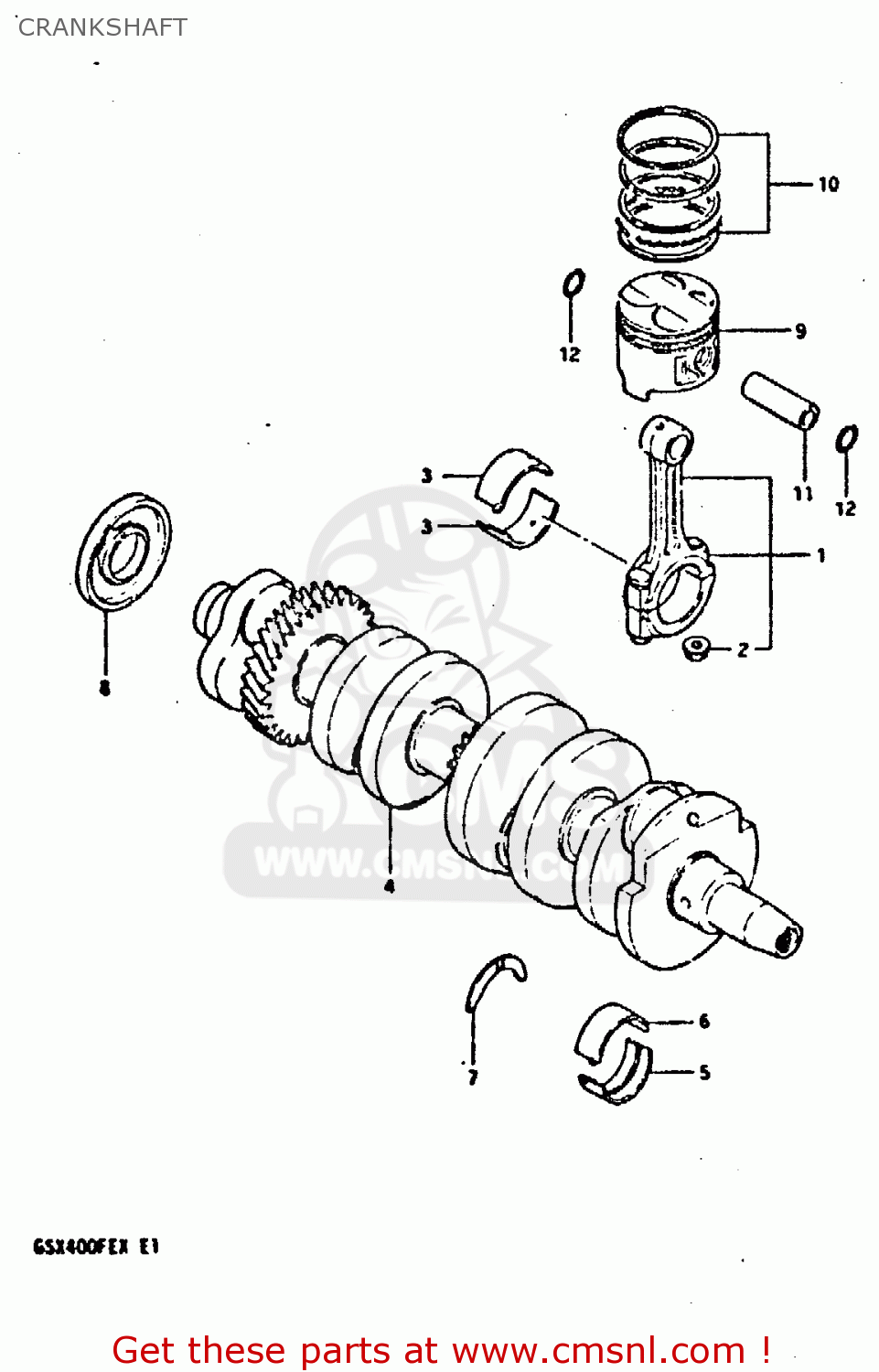

Crankshaft diagram GSX400FE 1981 (X) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

CRANKSHAFT GSX400FE 1981 (X) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
CRANKSHAFT GSX400FE 1981 (X) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
CRANKSHAFT GSX400FE 1981 (X) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
prices are in EUR
ref
part #
description
quantity
1
1216033200
ref: 1
ROD ASSY, CONNECTING
1216033200
€ 33.00
2
0915908033
ref: 2
NUT
0915908033
€ 2.50
3-1
1216433200010
ref: 3-1
GREEN
BEARING, CRANK PIN
€ 12.00
3-2
1216433200020
ref: 3-2
BLACK
BEARING, CRANK PIN
€ 12.50
3-3
1216433200030
ref: 3-3
BROWN
BEARING, CRANK PIN
€ 12.50
3-4
1216433200040
ref: 3-4
YELLOW
BEARING, CRANK PIN
€ 11.50
3-5
1216433200025
ref: 3-5
US:0.25
BEARING, CRANK PIN
€ 11.50
3-6
1216433200050
ref: 3-6
US:0.5
BEARING, CRANK PIN
€ 11.00
4
1222033203
ref: 4
CRANKSHAFT
€ 802.50
5-1
1222911400010
ref: 5-1
GREEN
BEARING (GREEN)
1222911400010
€ 9.50
5-2
1222911400020
ref: 5-2
BLACK
METAL CRANKSHAFT (BROWN)
1222911400020
€ 12.00
5-3
1222911400030
ref: 5-3
BROWN
METAL CRANKSHAFT (BLACK)
1222911400030
€ 10.00
5-4
1222911400040
ref: 5-4
YELLOW
METAL CRANKSHAFT (YELLOW)
€ 10.50
5-5
1222911400025
ref: 5-5
US:0.25
BEARING,CRANKSHAFT(US:0.25)
1222911400025
€ 9.50
5-6
1222911400050
ref: 5-6
US:0.5
METAL CRANKSHAFT
1222911400050
€ 9.50
6-1
1222911410010
ref: 6-1
GREEN
BEARING (GREEN)
€ 9.50
6-2
1222911410020
ref: 6-2
BLACK
METAL CRANKSHAFT (BROWN)
1222911410020
€ 12.00
6-3
1222911410030
ref: 6-3
BROWN
METAL CRANKSHAFT
1222911410030
€ 10.00
6-4
1222911410040
ref: 6-4
YELLOW
METAL CRANKSHAFT
1222911410040
€ 10.50
6-5
1222911410025
ref: 6-5
US:0.25
BEARING, CRANKSHAFT UPPER
1222911410025
€ 9.50
6-6
1222911410050
ref: 6-6
US:0.5
METAL,CRANKSHA
€ 9.50
7-1
1222844101
ref: 7-1
NOT MARKER
PLATE,CRANK THRUST
€ 8.50
7-2
1222844102
ref: 7-2
GREEN
BEARING, CRANKSHAFT THRUST
€ 0.00
7-3
1222844103
ref: 7-3
BRACK
BEARING, CRANKSHAFT THRUST
€ 0.00
8
0928330036
ref: 8
OIL SEAL 30X56
0928330036
€ 13.00
9-1
1211133202
ref: 9-1
PISTON (STD)
1211133202
€ 77.50
9-2
1211133202050
ref: 9-2
PISTON (OS:0.5)
€ 108.50
9-3
1211133202100
ref: 9-3
PISTON 1.00
1211133202100
€ 109.00
10-1
1214033211
ref: 10-1
PISTON RING SET (STD)
1214033211
€ 61.50
10-2
1214033211050
ref: 10-2
PISTON RING SET (OS:0.5)
1214033211050
€ 31.50
10-3
1214033211100
ref: 10-3
RING SET
€ 99.00
11
1215111001
ref: 11
PIN,PISTON
1215111001
€ 19.50
12
0938114001
ref: 12
RING,SNAP 14MM
0938114001
€ 1.50
